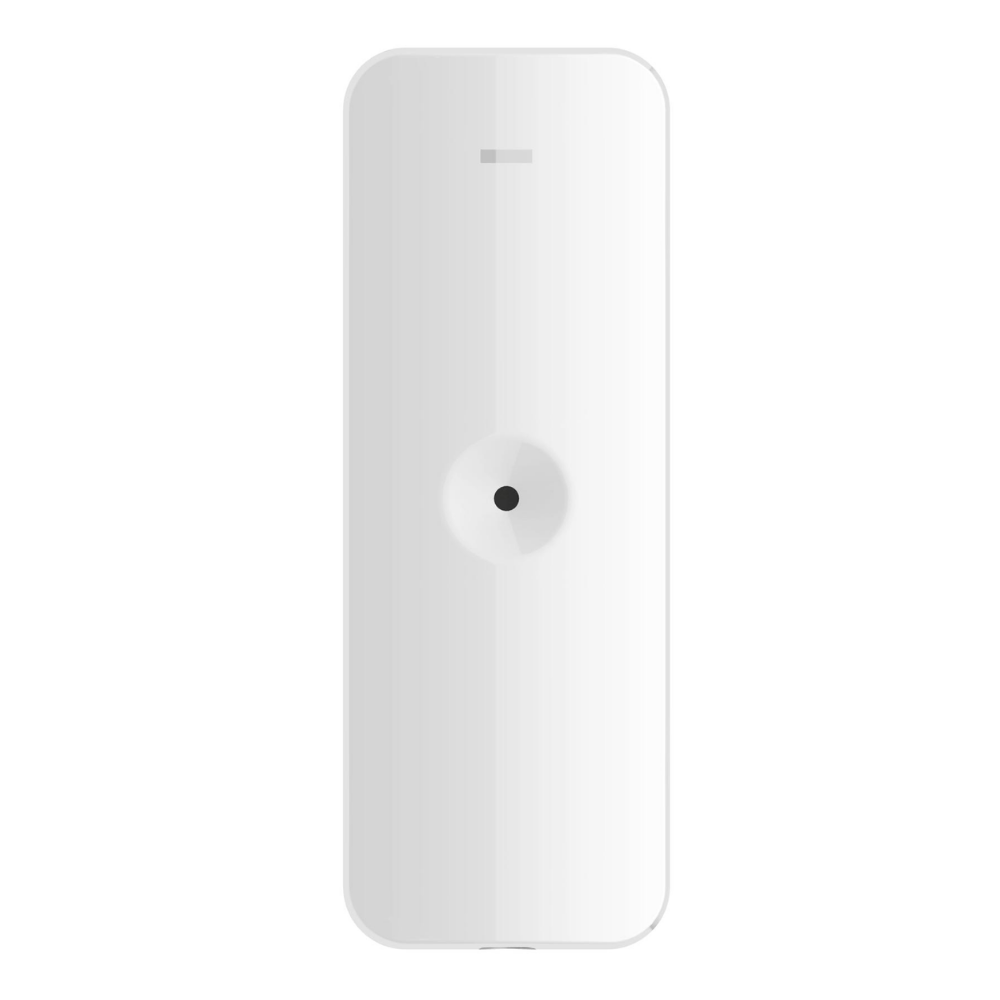

The Hikvision DS-PDBG8-EG2-WB is an omni-directional wireless glass break detector designed for reliable intrusion detection in residential and commercial environments. Equipped with a high-quality microphone sensor, it accurately detects the sound of glass shattering across multiple glass types. With remote configuration via the Hik-Connect App, easy installation, and long-lasting battery life, this detector provides dependable protection against break-in attempts.
Key Features
-
Omni-directional Microphone Sensor: Provides accurate detection of glass break events in all directions.
-
Remote Configuration: Fully configurable via the Hik-Connect App for convenience and flexibility.
-
Multiple Enrollment Methods: Supports power-up, remote ID, and QR code for easy pairing.
-
Reliable Transmission: Tri-X wireless technology with frequency hopping and AES-128 encryption ensures secure communication.
-
Battery Powered: Two CR123A batteries with up to 5 years of standby time and PCB protection.
-
Flexible Mounting: Supports both wall and ceiling installation for optimal coverage.
Downloads
Perfect For:
- Residential homes with large windows or glass doors
- Office spaces with glass partitions
- Retail stores and showrooms with glass displays
- Banks, schools, and hospitals requiring intrusion detection
Installer Tips
-
Mounting Location: Install on walls or ceilings facing the protected glass. Avoid placing behind curtains or obstacles.
-
Coverage Range: Ensure detector placement within 8m of the monitored glass, with clear line of sight.
-
Glass Type: Supports float, plate, tempered, wired, laminated, leaded, and double glazing (2.4–6.4mm thickness).
-
Battery Replacement: Replace both CR123A batteries at the same time for consistent performance.
-
Testing: Use Hikvision testing tools or actual glass break simulation to validate detection.
Quick-Read Specs
| Specification |
Detail |
| Model |
DS-PDBG8-EG2-WB |
| Detection Method |
Acoustic Sensor |
| Detection Range |
8m |
| Detection Angle |
120° |
| Glass Types |
Float, Plate, Tempered, Wired, Laminated, Leaded, Double Glazing |
| Glass Thickness |
2.4mm – 6.4mm |
| Glass Size |
0.3m × 0.3m to 3m × 3m |
| Tamper Protection |
Front, Rear |
| Wireless Technology |
Tri-X, AES-128 Encryption, Frequency Hopping |
| Transmission Frequency |
433MHz |
| Transmission Range |
Up to 1km (free space) |
| Battery Type |
2 × CR123A |
| Battery Life |
Up to 5 years (standby) |
| Operating Temp |
-10 °C to 55 °C (14 °F to 131 °F) |
| Storage Temp |
-20 °C to 60 °C (-4 °F to 140 °F) |
| Humidity |
10% – 90% |
| Dimensions |
38.8mm × 107.0mm × 24.5mm |
| Weight |
83g |
| Mounting |
Wall, Ceiling |
| Application |
Indoor |
Extra Info
Advanced Acoustic Detection
The DS-PDBG8-EG2-WB features a high-performance omni-directional microphone capable of accurately recognizing the unique sound frequencies associated with glass breaking. It supports multiple types of glass, including plate, tempered, laminated, and wired, making it a versatile choice for residential, office, and commercial applications. The advanced detection algorithm minimizes false alarms from everyday noises while ensuring rapid response to actual intrusion attempts.
Reliable Wireless Security
Powered by Hikvision’s advanced Tri-X wireless technology, the detector ensures stable, long-range communication with the control panel. With frequency hopping to resist signal interference and AES-128 encryption to protect against hacking, it delivers dependable security in even the most demanding wireless environments. This robust communication standard makes it suitable for larger properties or installations with multiple wireless devices.
Flexible Installation
The unit is designed for simple and adaptable installation, supporting both wall and ceiling mounting options. Its effective detection range ensures coverage of standard-sized windows and glass panels without requiring direct contact. This flexibility allows installers to position the detector in optimal locations based on room design, window size, and customer requirements.
Easy Maintenance
Equipped with replaceable CR123A lithium batteries, the DS-PDBG8-EG2-WB provides up to five years of continuous operation under typical usage conditions. Its low-power consumption design reduces maintenance frequency, while built-in status monitoring and tamper protection keep users informed of battery life and device health.
Enhanced Security Features
Beyond glass break detection, the sensor includes tamper-resistant protection that alerts the system if attempts are made to disable or remove it. This ensures reliable, uninterrupted protection for homes, offices, and businesses.
Q&A
Q1: What glass types are supported?
It supports float, plate, tempered, wired, laminated, leaded, and double glazing glass.
Q2: How far is the detection range?
Up to 8 meters with a 120° coverage angle.
Q3: How long does the battery last?
Up to 5 years in standby mode with 2 × CR123A batteries.
Q4: Can it be installed outdoors?
No, it is designed for indoor use only.
Q5: How is it configured?
It can be fully configured remotely via the Hik-Connect App, with multiple enrollment methods supported.
