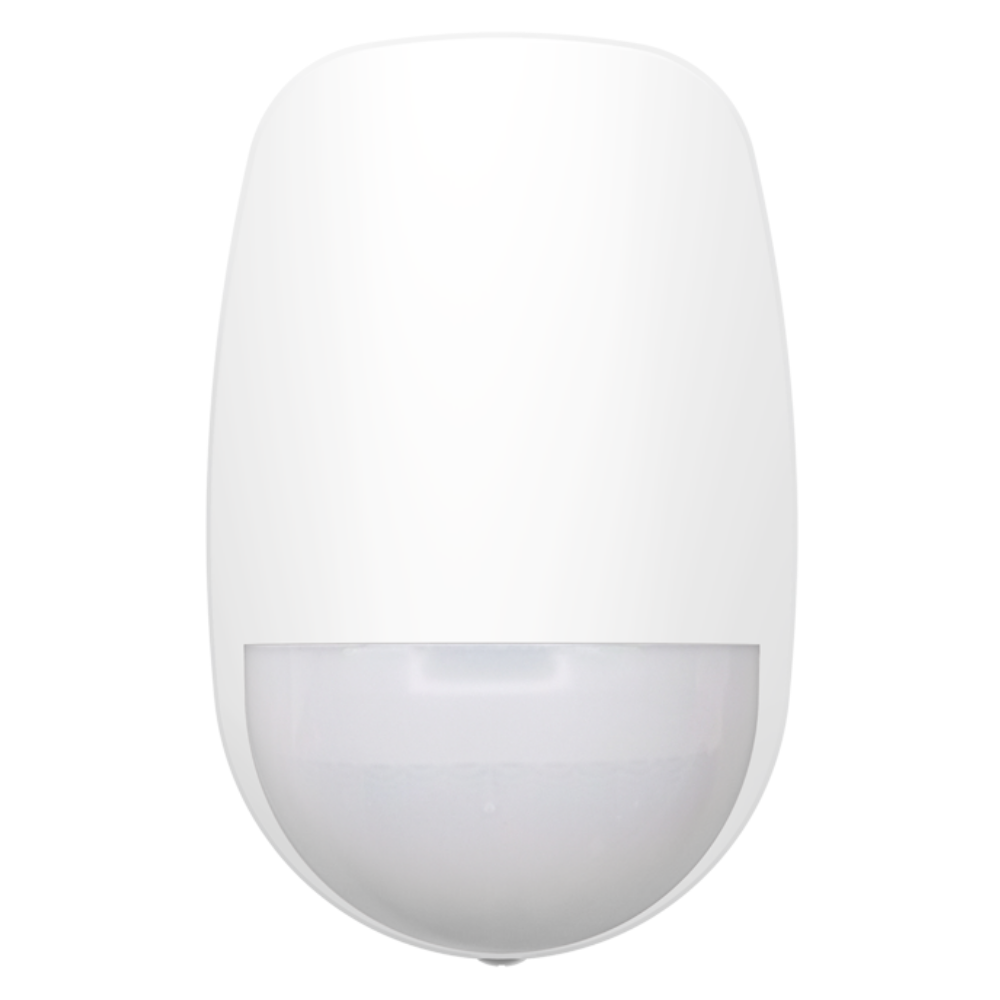

The Hikvision DS-PDD12P-EG2-WB is a fully supervised two-way wireless detector featuring dual motion and microwave detection with advanced tamper protection. Built with pet immunity and digital temperature compensation, it ensures accurate detection while ignoring animals up to 30kg. Powered by two in-built batteries with a lifespan of up to 5 years, it provides reliable indoor security monitoring with a 12m coverage radius, recognizing human movement from the very first step.
Key Features
-
3D Optics with Creep-Zone Protection: Provides complete coverage without dead angles.
-
24GHz Microwave: Prevents false alarms caused by wall penetration.
-
Digital Temperature Compensation: Maintains consistent detection in changing environments.
-
Remote Configuration: Fully configurable through the Hik-Connect App.
-
Easy Installation: Multiple enrollment methods with simple design.
-
Reliable Transmission: Frequency hopping and AES-128 encryption for secure communication.
-
Battery Powered: Operates up to 5 years on 2 × CR123A batteries.
Downloads
Installer Tips
-
Mounting Height: Install between 1.8m – 2.4m for optimal detection performance.
-
Pet Immunity: Ideal for environments with pets under 30kg.
-
Power Enrollment: Use Power-Up, Remote ID, or QR code for quick setup.
-
Battery Replacement: Replace with CR123A batteries; PCB protection ensures safety.
-
Indoor Use: Designed for indoor installation with optional wall & ceiling brackets.
Quick-Read Specs
| Specification |
Detail |
| Detection Range |
12m, 85.9° angle |
| Detection Method |
Passive Infrared + Microwave |
| Zones |
52 zones |
| Pet Immunity |
Up to 30kg |
| Microwave Frequency |
24GHz (24.15–24.25GHz) |
| Transmission |
Tri-X Wireless, AES-128 encryption |
| Range |
Up to 1.2km (free space) |
| Battery Life |
Up to 5 years |
| Battery Type |
CR123A × 2 (3V) |
| Operating Temp |
-10 °C to 55 °C |
| Dimensions |
65.5mm × 103mm × 48.5mm |
| Weight |
141g |
| Mounting |
Wall, with optional brackets |
Extra Info
Advanced Optics
The detector incorporates 3D optical technology combined with creep-zone protection, ensuring that even areas directly beneath the sensor are fully monitored. This eliminates blind spots that traditional detectors might miss, offering comprehensive coverage across the entire detection area. The enhanced optics make it highly effective in both residential and commercial environments where complete protection is essential.
Microwave Anti-Penetration
Equipped with 24GHz microwave sensing technology, the detector intelligently distinguishes between real intrusions and non-threatening movements. By filtering out motion that occurs beyond walls, glass, or thin partitions, it prevents false alarms caused by external activity. This ensures more reliable operation indoors, particularly in environments where movement outside the detection area could otherwise trigger alerts.
Reliable Communication
Using the advanced Tri-X wireless protocol, the device ensures long-range and interference-resistant performance. With support for AES-128 encryption, all transmitted data is securely protected against interception or tampering. The communication range extends up to 1.2 kilometers in open space, making the detector suitable for larger installations while still maintaining stability and dependability.
Low Maintenance
Designed for longevity, the detector operates for up to 5 years on its built-in batteries. When replacement is needed, the process is straightforward and does not require specialized tools. This minimizes downtime and maintenance costs, making it highly practical for both installers and end-users.
Flexible Accessories
The detector is compatible with a range of mounting accessories and spare parts, including the DS-PDB-IN-Ceiling and DS-PDB-IN-Wall brackets for versatile installation, as well as the DS-PDP-IN-CR123A replacement battery for convenient upkeep. These accessories enhance adaptability, allowing the detector to be installed securely in a variety of environments.
Secure & Versatile Operation
With its combination of advanced optics, microwave filtering, and secure wireless communication, the detector provides a balance of reliability, flexibility, and ease of use. It is suitable for both home and business security systems, ensuring long-term peace of mind.
Q&A
Q1: Does it work with pets?
Yes, it has pet immunity up to 30kg, reducing false alarms from animals.
Q2: How long do the batteries last?
The detector can run up to 5 years on two CR123A batteries.
Q3: Is it secure against jamming?
Yes, it uses frequency hopping and AES-128 encryption for reliability.
Q4: Can it be configured remotely?
Yes, via the Hik-Connect App, supporting full remote setup and adjustments.
Q5: Where is it best installed?
Ideal for indoor scenarios such as homes, offices, or warehouses, mounted on walls or ceilings.
