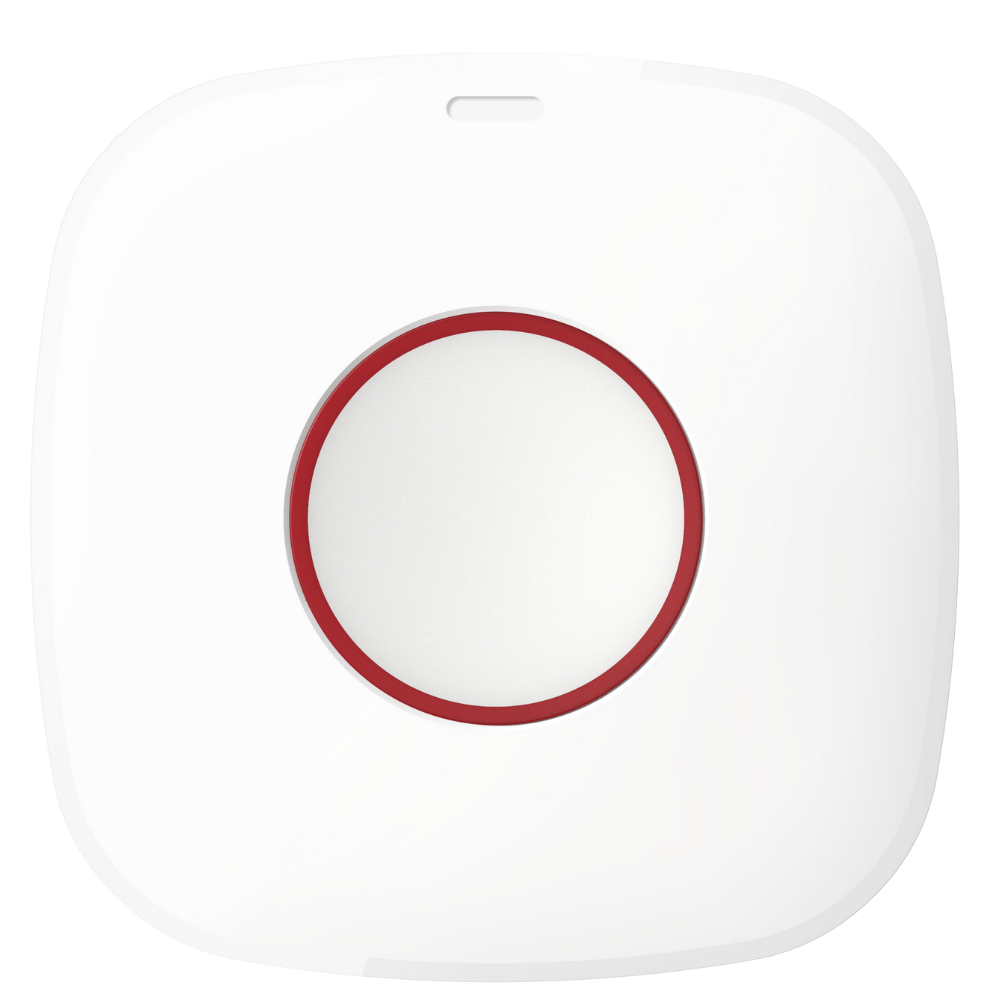

The Hikvision DS-PDEB1-EG2-WB is a compact and reliable wireless emergency panic button designed for fast response in critical situations. With flexible installation options, secure encrypted transmission, and a discreet design, it is ideal for homes, offices, medical facilities, and commercial environments requiring instant alarm activation.
Key Features
-
Remote Configuration: Fully configurable through the Hik-Connect App for user-friendly setup.
-
Easy Enrollment: Supports multiple enrollment methods including Power-up, Remote ID, and QR Code scanning.
-
Effective Emergency Trigger: Single button design ensures immediate activation during emergencies.
-
Reliable Transmission: Tri-X wireless technology with two-way RF communication for stable performance.
-
Anti-Jamming Security: Frequency hopping with AES-128 encryption to resist signal interference.
-
Tamper Protection: Front and rear tamper detection safeguards against unauthorized removal or interference.
Downloads
Perfect For:
- Residential panic alarm points
- Offices & retail shops
- Hospitals, clinics & elderly care facilities
- Banks, jewelry shops & high-security areas
- Schools & public institutions
Installer Tips
-
Placement: Install in discreet but accessible locations such as under desks, near beds, or on walls in high-risk areas.
-
Signal Testing: Always check wireless signal strength during installation to ensure reliable communication with the control panel.
-
Battery Maintenance: Replace the CR2450 battery every 3 years or sooner if frequent triggers occur.
-
Tamper Alerts: Enable tamper detection in the app for instant notification if the button is removed or tampered with.
-
Medical Use: For healthcare environments, use the green keymat option for clear medical emergency identification.
Quick-Read Specs
| Specification |
Detail |
| Button |
1 |
| Tamper Protection |
Front & Rear |
| Indicator |
LED (Blue on Alarm) |
| Signal Strength Indicator |
Supported |
| Transmission Technology |
Tri-X Wireless, Two-Way RF |
| Frequency |
433MHz |
| Encryption |
AES-128 |
| Range (Free Space) |
Up to 800m |
| Battery Type |
CR2450 × 1 |
| Battery Life |
Up to 3 years (20 triggers/day) |
| Power Supply |
3V Battery Powered |
| Operating Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
| Storage Temperature |
-20 °C to 60 °C (-4 °F to 140 °F) |
| Humidity |
10% to 90% |
| Dimensions |
63.8 × 63.8 × 17.9 mm |
| Weight |
45.5 g |
| Mounting Method |
Wall Mount |
| Application |
Indoor (with green keymat option for medical use) |
Extra Info
Secure Wireless Transmission
The DS-PDEB1-EG2-WB uses Hikvision’s Tri-X wireless protocol with two-way RF communication, ensuring strong, stable, and secure transmission up to 800 meters in open space. Frequency hopping and AES-128 encryption provide extra protection against jamming or interception attempts.
Flexible Enrollment
Installers benefit from multiple enrollment options, including quick QR code scanning, power-up pairing, and remote ID setup through the Hik-Connect App. This ensures simple and efficient integration into larger alarm systems.
Reliable Power Supply
The button is powered by a CR2450 lithium battery, offering up to 3 years of operation with typical usage. This minimizes maintenance and ensures availability during emergencies.
Discreet Design
With its compact form factor and optional medical-use green keymat, the emergency button can blend into home or professional environments while remaining accessible for critical use.
Indoor Application
Optimized for indoor use, the device functions reliably across a wide operating temperature and humidity range, making it suitable for residential, commercial, and healthcare environments.
Q&A
Q: How is the panic button powered?
A: It is powered by a long-lasting replaceable battery designed for extended use.
Q: What is the typical battery life?
A: Battery life can last up to several years under normal usage conditions, depending on frequency of use.
Q: What is the wireless range?
A: The panic button typically works within a range of up to 150 meters (open area) from the connected control panel or hub.
Q: Does it have tamper protection?
A: Yes, the device includes tamper detection that triggers alerts if it is removed or opened.
Q: Can it be wall-mounted or carried?
A: Yes, it can be wall-mounted for fixed use or carried as a portable emergency button.
Q: Is it water-resistant?
A: Some models are designed with water resistance for reliability in various environments.
