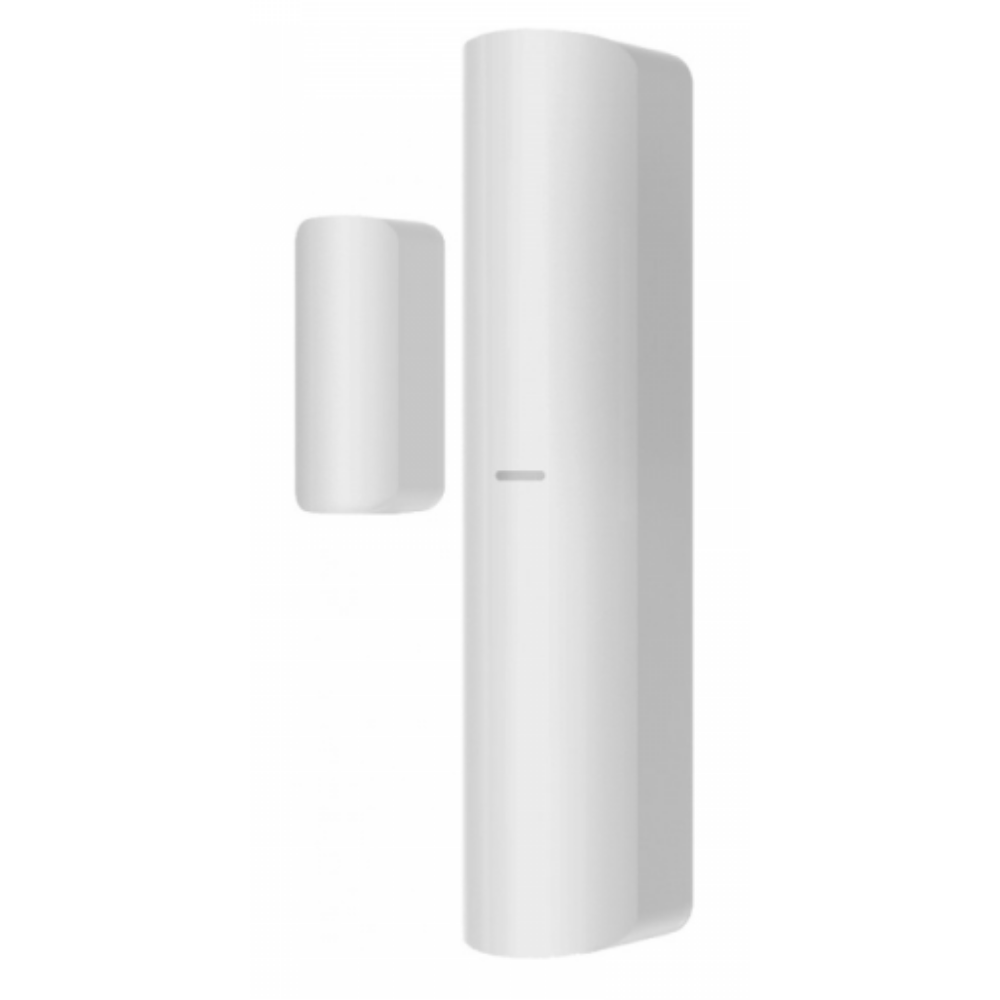

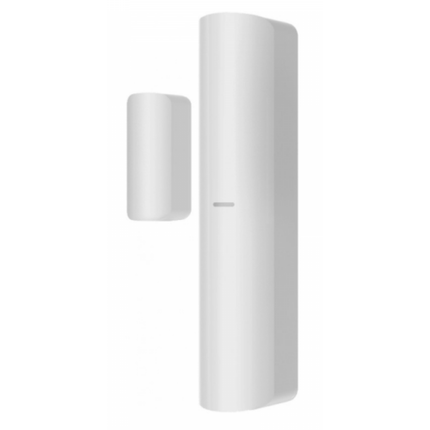

The Hikvision DS-PDMCK-EG2-WB is a wireless opening detector with built-in shock and tilt detection, designed to provide early warnings of intrusion through doors and windows. By combining magnetic contact, vibration, and tilt analysis, it offers enhanced protection while intelligently filtering out background vibrations. Its slim design, multiple enrollment methods, and Tri-X wireless technology ensure reliable performance, easy installation, and long-lasting security.
Key Features
-
3-in-1 Detection: Magnetic contact, shock, and tilt detection for enhanced intrusion protection.
-
Flexible Integration: Includes 2 wired input extensions for additional sensors.
-
Remote Configuration: Fully configurable through the Hik-Connect App for ease of use.
-
Multiple Enrollment Methods: Supports power-up, remote ID, and QR code enrollment.
-
Advanced Wireless Security: Tri-X wireless with AES-128 encryption and frequency hopping for anti-jamming.
-
Tamper Protection: Front and rear tamper detection against unauthorized removal.
-
Long Battery Life: Powered by CR123A battery with up to 3 years of standby operation.
Downloads
Perfect For:
- Residential doors & windows
- Retail shops & glass panels
- Office entrances & meeting rooms
- Warehouses & storage areas
- Schools & commercial buildings
Installer Tips
-
Mounting: Align magnet within ≤43mm of the detector for reliable operation.
-
Shock & Tilt Setup: Adjust detection sensitivity (High, Normal, Low) in the app to reduce false alarms.
-
Signal Check: Use the built-in LED and app signal strength indicator before final installation.
-
Battery Maintenance: Replace CR123A battery every 3 years or when notified via low-battery alerts.
-
Wired Expansion: Connect up to 2 additional wired sensors to extend functionality.
Quick-Read Specs
| Specification |
Detail |
| Detection Method |
Opening Contact, Shock, Tilt |
| Detection Gap |
43mm Max |
| Sensitivity |
Shock: High/Normal/Low; Tilt: up to 25° |
| Digital Processing |
Supported |
| Tamper Protection |
Front & Rear |
| Indicator |
Green (MC), Orange (Tilt), Red (Shock), Blue (Alarm) |
| Alarm Input |
NC, NO, Impulse Count |
| Transmission Technology |
Tri-X Wireless, Two-Way RF |
| Frequency |
433MHz with AES-128 Encryption |
| Range |
Up to 1km (open space) |
| Enrolling Method |
Power-up, Remote ID, QR Code |
| Battery |
CR123A × 1 (3V) |
| Battery Life |
Up to 3 years (standby) |
| Operating Temp |
-10 °C to 55 °C (14 °F to 131 °F) |
| Storage Temp |
-20 °C to 60 °C (-4 °F to 140 °F) |
| Humidity |
10% to 90% |
| Dimensions |
Main: 22.5 × 103 × 23.2mm
Magnet: 13 × 34.4 × 11.4mm |
| Weight |
60g |
| Application Scenario |
Indoor |
| Available Model |
DS-PDMCK-EG2-WB |
| Optional Accessories |
DS-PDB-MC-Brown, DS-PDB-MC-Adapter |
Extra Info
Combined Protection
The DS-PDMCK-EG2-WB is a multi-functional security device that integrates magnetic contact, shock detection, and tilt detection in one compact unit. This multi-layered approach ensures that attempts to open, force, or tamper with doors, windows, or other entry points are quickly identified. By combining three detection methods, it provides comprehensive protection against different intrusion scenarios without requiring multiple devices.
Advanced Wireless Security
Built with Hikvision’s Tri-X wireless protocol, the device delivers long-range, stable communication between the detector and the control hub. AES-128 encryption and frequency hopping safeguard the signals against jamming and interception, ensuring that alarms are transmitted securely and without interference. This makes it reliable even in environments with heavy wireless activity.
Flexible Expansion
The device includes two onboard wired inputs, allowing installers to connect additional security sensors such as curtain PIRs, glass break detectors, or vibration sensors. This expands the functionality of a single device and makes it suitable for broader applications, from residential doors and windows to larger commercial or industrial access points.
User-Friendly Installation
With multiple enrollment options—including power-up auto-enrollment, remote ID input, and QR code scanning—the setup process is fast and efficient. This flexibility reduces installation time, helping technicians configure the device with minimal effort while maintaining secure pairing with the control hub.
LED Status Indicators
The DS-PDMCK-EG2-WB features dedicated LED color indicators that provide immediate visual feedback for different states:
-
Green for magnetic contact status
-
Orange for tilt detection
-
Red for shock detection
-
Blue for alarm signaling
This clear separation of indicators allows for quick diagnostics and easy monitoring during setup and operation.
Low-Maintenance Reliability
Designed for long-term operation, the device runs on a replaceable CR123A battery with up to 5 years of service life. Low-battery alerts through both LED indicators and the Hik-Connect app ensure uninterrupted security coverage.
Versatile Applications
Its 3-in-1 detection capability makes it suitable for protecting doors, windows, cabinets, garage doors, or other movable structures where magnetic, vibration, or tilt-based tampering may occur.
Q&A
Q1: What makes this different from a standard magnetic detector?
It combines magnetic contact, shock, and tilt detection in one device for enhanced intrusion coverage.
Q2: How long does the battery last?
The CR123A battery provides up to 3 years of standby operation.
Q3: Can I connect other sensors?
Yes, it supports up to 2 additional wired inputs.
Q4: What is the maximum detection gap?
43mm between the detector and magnet.
Q5: Is it suitable for outdoor use?
No, this model is designed for indoor installation.
