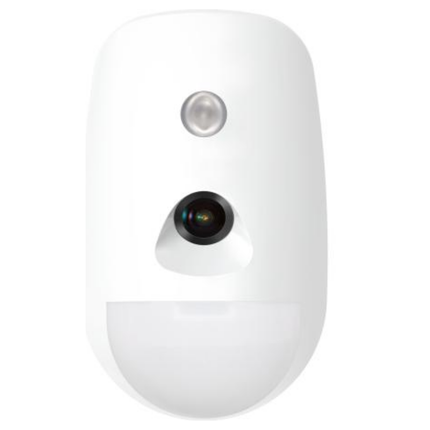

The Hikvision DS-PDPC12PF-EG2-WB is a fully supervised two-way wireless PIRCAM detector with a built-in high-quality camera. It delivers an ideal solution for video verification via motion-triggered images transmitted to an alarm receiving center (ARC) or directly to personal phones via mobile apps. Protect your premises day and night with real-time color images that enable fast and accurate responses to genuine alarm events.
Key Features
-
Dual Function: PIR motion detection with instant video verification.
-
Detection Range: 12m / 85.9° wide coverage.
-
Pet Immunity: Up to 30kg to reduce false alarms.
-
24/7 Color Imaging: White light fill ensures vivid color images even in darkness.
-
Smart Environmental Control: Digital signal processing, 3D optics, and temperature compensation for accuracy.
-
Remote Configuration: Fully configurable through the Hik-Connect app.
-
Easy Installation: Multiple enrollment methods and replaceable battery with PCB protection.
Downloads
Perfect For:
- Residential homes and apartments
- Shops and retail spaces
- Small offices
- Warehouses and storage areas
Installer Tips
-
Mounting Height: 1.8m – 2.4m for optimal detection and image clarity.
-
Placement: Install indoors, away from direct sunlight or reflective surfaces.
-
Wireless Range: Ensure line-of-sight for up to 800m in free space.
-
Battery: Use CR123A × 3 batteries, replaceable, with up to 6 years of standby time.
-
Brackets: Optional wall and ceiling mounting accessories available.
Quick-Read Specs
| Specification |
Detail |
| Detection Method |
Passive Infrared + Video Verification |
| Detection Range |
12m |
| Detection Angle |
85.9° |
| Detection Zones |
52 |
| Detectable Speed |
0.3 – 2m/s |
| Sensitivity |
Auto / High / Pet |
| Pet Immunity |
Up to 30kg |
| White Light Filter |
6500 lux |
| Temperature Compensation |
Digital |
| Creep Zone Protection |
Supported |
| Video Field of View |
88° (H), 68° (V) |
| Image Type |
JPEG |
| Resolution |
640 × 480 / 320 × 240 / 160 × 120 |
| Fill Light |
White light, 12m range |
| Day/Night Mode |
Color |
| Transmission Technology |
CAM-X Two-Way RF Wireless |
| Frequency |
433MHz |
| Security |
AES-128 Encryption |
| Transmission Range |
Up to 800m (free space) |
| Battery Life |
Up to 6 years (standby) |
| Battery Type |
CR123A × 3 |
| Power Supply |
3V DC (typical) |
| Operating Temp |
-10 °C to 55 °C |
| Storage Temp |
-20 °C to 60 °C |
| Humidity |
10% – 90% |
| Dimensions |
72.2 × 120.5 × 56.7 mm |
| Weight |
220g |
| Mounting Height |
1.8 – 2.4m |
| Mounting Method |
Wall (optional ceiling bracket) |
| Application |
Indoor |
Extra Info
Video Verification
The built-in camera captures and transmits instant motion-triggered images directly to the Alarm Receiving Center (ARC) or the mobile app, providing real-time visual verification. This feature reduces unnecessary responses to false alarms and enables faster, more accurate decision-making during an intrusion event. With visual evidence available immediately, both users and security professionals can confirm threats with confidence.
Advanced Detection
Designed with digital signal processing (DSP), Smart Environmental Control (SEC), and 3D optics, the detector ensures precise and dependable intrusion detection. These technologies work together to adapt to environmental conditions such as lighting changes, temperature shifts, and background movements. Additionally, its pet immunity function intelligently ignores animals up to a certain weight, minimizing false alarms in households or businesses with pets.
Color Imaging
Unlike traditional infrared-only solutions, this device integrates a white light fill to deliver full-color imaging even in total darkness. This allows for clearer identification of intruders, clothing, and objects in all lighting conditions, improving the evidentiary value of captured images. The ability to maintain color images around the clock greatly enhances situational awareness.
Secure Wireless Communication
Featuring CAM-X two-way RF technology, the system ensures stable and reliable communication between the detector and the control hub. AES-128 encryption safeguards the signal against interception or tampering, while frequency-hopping technology further strengthens resistance to interference. Together, these protections ensure uninterrupted performance in high-security environments.
Q&A
Q1: What is the detection range?
Up to 12m with an 85.9° angle.
Q2: Does it work at night?
Yes, white light fill provides 24/7 color imaging up to 12m.
Q3: Is it pet-friendly?
Yes, supports pet immunity up to 30kg.
Q4: How is it powered?
Powered by 3 × CR123A batteries, lasting up to 6 years in standby mode.
Q5: What environments is it for?
Indoor environments such as homes, offices, shops, and warehouses.
