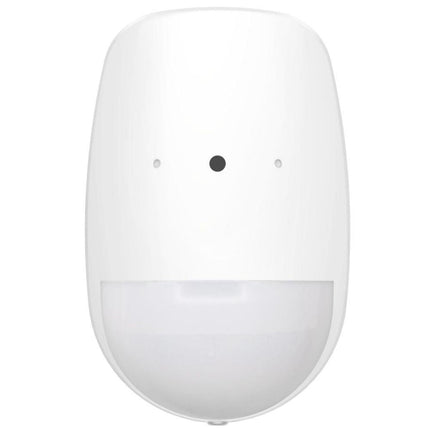

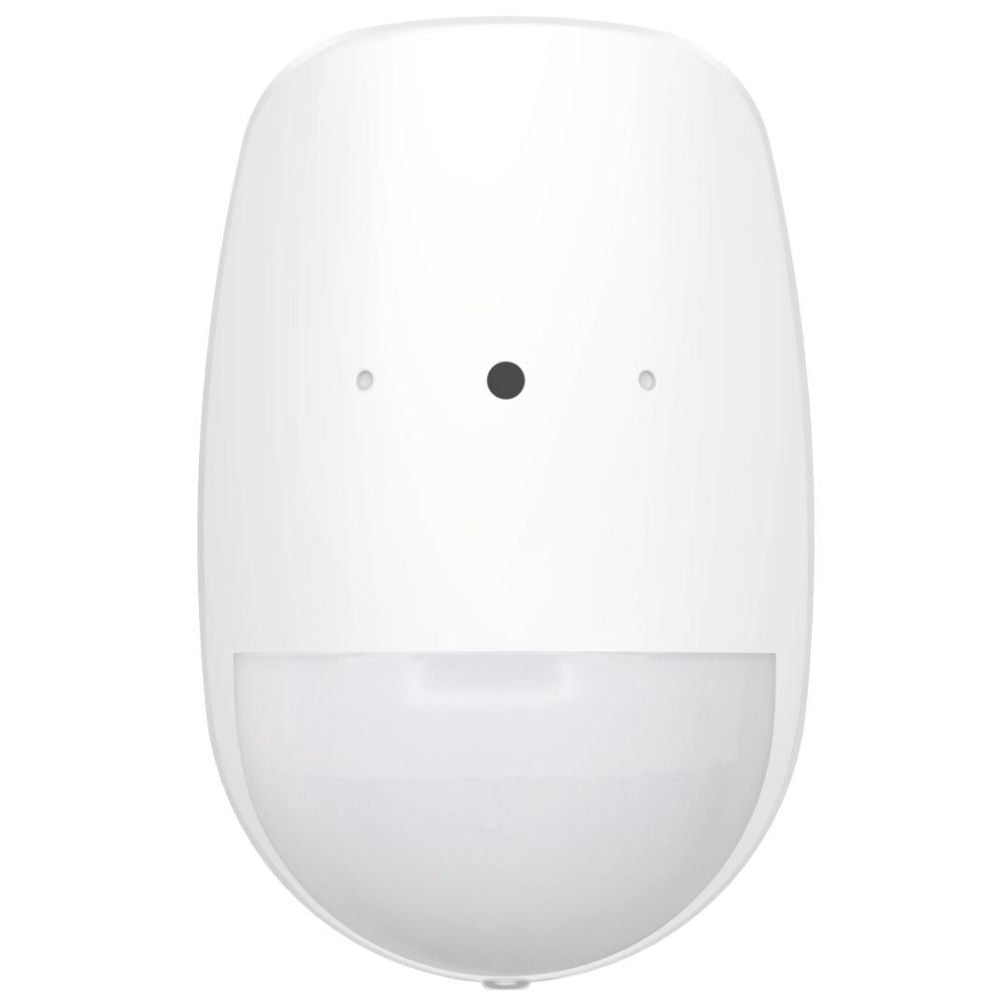

The Hikvision DS-PDPG12P-EG2 is a dual-technology detector combining PIR motion sensing with glass break detection. Designed for reliable indoor protection, it features advanced digital processing, pet immunity, and selectable EOL resistors. With its wide detection coverage, adjustable sensitivity, and tamper protection, it is ideal for residential and commercial intrusion detection applications.
Key Features
-
Dual Detection: PIR + Glass break sensor for enhanced accuracy.
-
Wide Coverage: PIR range 12m / 85.9° and glass break range 8m / 120°.
-
Pet Immunity: Up to 30kg to minimize false alarms.
-
Glass Type Support: Detects float, plate, tempered, wired, laminated, leaded, and double glazing glass.
-
Selectable EOL Resistors: Flexible integration with control panels.
-
Power Protection: 9–16 VDC input with polarity reverse protection.
-
Environmental Compensation: Digital temperature compensation and 6500 lux white light immunity.
-
Tamper Protection: Front cover tamper alarm for added security.
Downloads
Perfect For:
- Homes and apartments
- Shops and small offices
- Bank counters and showrooms
- Indoor warehouse spaces
Installer Tips
-
Mounting Height: 1.8m – 2.4m for optimal performance.
-
Placement: Do not mount on the same wall as protected glass.
-
Avoid: Noisy or humid areas (e.g., workshops, bathrooms).
-
Stability: Avoid walls subject to vibration.
-
Testing: Always verify operation using the recommended tester.
Quick-Read Specs
| Specification |
Detail |
| Detection Method |
Passive Infrared + Acoustic Sensor |
| PIR Detection Range |
12m / 85.9° |
| Glass Break Range |
8m / 120° |
| Detection Zones |
52 |
| Detectable Speed |
0.3 – 2m/s |
| Pet Immunity |
Up to 30kg |
| Glass Supported |
Float, Plate, Tempered, Wired, Laminated, Leaded, Double Glazing |
| Glass Thickness |
2.4mm – 6.4mm |
| Glass Size |
0.3 × 0.3m – 3 × 3m |
| Sensitivity |
Adjustable (PIR Auto/Pet, Glass Potentiometer) |
| White Light Filter |
6500 lux |
| Temperature Compensation |
Digital |
| Creep Zone Protection |
Supported |
| Alarm Output |
Normally Closed |
| LED Indicators |
Green (PIR), Red (Glass Break), Blue (Alarm) |
| Transmission |
Wired |
| Power Supply |
9 – 16 VDC (12V typical) |
| Power Consumption |
36mA max |
| Operating Temp |
-10 °C to 55 °C |
| Humidity |
10% – 90% |
| Dimensions |
65.5 × 103 × 48.5 mm |
| Weight |
98.5g |
| Mounting |
Wall (optional ceiling/wall bracket) |
| Application |
Indoor |
Extra Info
Dual Protection
The device integrates PIR motion sensing with glass break detection to deliver two layers of security in a single unit. This dual-technology design significantly improves accuracy by cross-verifying intrusion attempts, ensuring that both motion and glass break events are detected. The combination reduces false alarms caused by everyday movements or background noise, making it highly reliable for protecting areas with windows or glass doors.
Smart Processing
Equipped with digital signal processing (DSP), the detector analyzes signals with precision, distinguishing between real threats and harmless environmental factors. Sealed optics protect the sensing chamber from dust and insects, maintaining long-term stability and reducing maintenance needs. Environmental compensation technology further enhances accuracy by automatically adjusting to temperature fluctuations and changing light conditions, ensuring dependable performance day and night.
Flexible Integration
Designed with selectable End-of-Line (EOL) resistors, the detector can be easily integrated with a wide variety of intrusion alarm panels. This flexibility simplifies system design and ensures compatibility across different installations, whether in homes, offices, or commercial facilities.
Easy Maintenance
The unit includes dedicated LED indicators for PIR, glass break, and alarm events, providing clear visual feedback during operation. These indicators assist installers and technicians in testing, troubleshooting, and verifying the detector’s functionality quickly, minimizing downtime and ensuring optimal performance throughout its lifecycle.
Q&A
Q1: What is the PIR detection range?
Up to 12m with an 85.9° angle.
Q2: What is the glass break range?
Up to 8m with a 120° angle.
Q3: Does it support pet immunity?
Yes, it is pet immune up to 30kg.
Q4: What glass types are supported?
Float, plate, tempered, wired, laminated, leaded, and double glazing.
Q5: What power supply does it require?
9–16 VDC (12V typical) with reverse polarity protection.
