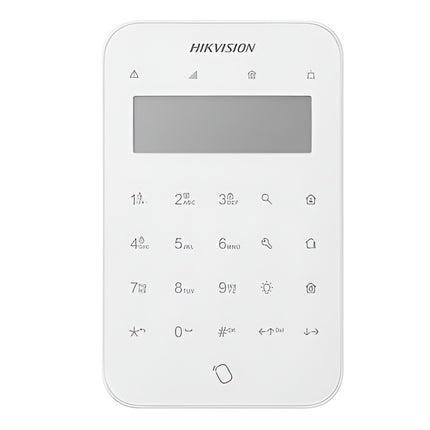

The Hikvision DS-PK1-LT-WB is a two-way wireless keypad designed for intuitive system control and alarm management. With its LCD screen, LED indicators, full-touch key design, and built-in tag reader, it allows fast arming, disarming, and emergency operation. Featuring Tri-X wireless technology, tamper protection, and mobile App configuration, it ensures secure, flexible, and user-friendly operation for both residential and commercial alarm systems.
Key Features
-
Two-Way Wireless Communication: 433 MHz Tri-X technology with long-distance and stable transmission.
-
LCD Screen + LED Indicators: Real-time display of system status with backlight design for night use.
-
Multi-Function Keypad: Supports arming, disarming, silent alarms, output control, and system query.
-
Emergency Alarm Buttons: Fire, panic, and medical alarm supported.
-
Tag Reader: Built-in tag reader for quick arming/disarming.
-
Tamper Protection: Equipped with both front and rear tamper-proof design.
-
Remote Configuration: Supports setup and control via the Hik-Connect App.
-
Modern Design: Full touch keys with LED backlight for easy operation.
Downloads
Perfect For:
- Home security systems
- Small offices and shops
- Warehouses and storage units
- Schools and institutional facilities
- Commercial buildings
Installer Tips
-
Mounting Height: Install at a comfortable height (1.4–1.6 meters) for easy access.
-
Battery Setup: Ensure correct installation of 4 × CR123 batteries for reliable operation.
-
Wireless Signal: Test the location to ensure strong communication with the control panel.
-
Tamper Check: Verify tamper switches are properly engaged after installation.
-
Configuration: Use the Hik-Connect App for quick pairing and setup.
Quick-Read Specs
| Wireless Frequency |
433 MHz |
| Wireless Technology |
Tri-X Two-Way Wireless |
| Transmission Range |
Up to 800 m (open area) |
| RF Modulation |
2GFSK |
| Display |
LCD + LED indicators |
| Keys |
Numeric keys, function keys, and navigation keys |
| Emergency Alarms |
Fire, Panic, Medical |
| Tamper Protection |
Front and rear |
| Buzzer |
Supported |
| Tag Reader |
Built-in |
| Power Supply |
4 × CR123 batteries |
| Battery Life |
Up to 2 years (standby) |
| Operating Temp |
-10 °C to +55 °C |
| Operating Humidity |
10% – 90% |
| Dimensions |
174.63 × 109.62 × 25.25 mm |
| Weight |
348 g (with batteries) |
| Installation |
Wall mounting |
Extra Info
Stable Wireless Performance
Equipped with Tri-X wireless technology, the keypad delivers long-range, reliable communication with the control panel. The system uses frequency hopping to prevent signal interference and block jamming attempts, ensuring uninterrupted performance in demanding environments. With AES-128 encryption built-in, every signal is securely transmitted, giving users confidence that commands and alerts are always delivered safely.
All-in-One Control
The device combines a keypad, LCD display, LED status indicators, and RFID tag reader into a single, compact unit. This integration allows users to conveniently arm/disarm the system, view event details, and manage access without needing multiple devices. Its multifunctional design not only reduces installation complexity but also saves space, making it an efficient choice for both residential and commercial setups.
Easy Maintenance
Powered by a long-lasting battery, the unit is designed for low-maintenance operation. The extended battery life minimizes the need for frequent replacements, while the system also provides low-battery alerts to ensure users are informed before any disruption occurs. This makes it ideal for busy households or businesses that require dependable, hands-off performance over the long term.
Flexible Configuration
The keypad supports versatile configuration options, allowing setup and adjustments to be done locally on the device or remotely via the Hikvision mobile app. This flexibility makes it convenient for installers to fine-tune system settings during deployment and for end-users to make quick changes without technical expertise. Whether on-site or off-site, the system can be easily adapted to meet changing security needs.
Q&A
Q1: How is the keypad powered?
A1: It uses 4 × CR123 batteries, providing up to 2 years of standby time.
Q2: Can I configure it remotely?
A2: Yes, the keypad can be configured through the Hik-Connect App.
Q3: What emergencies does it support?
A3: Fire, Panic, and Medical alarms are supported.
Q4: How far can it communicate with the control panel?
A4: Up to 800 meters in open areas.
Q5: Does it have tamper protection?
A5: Yes, both front and rear tamper protection are built in.
