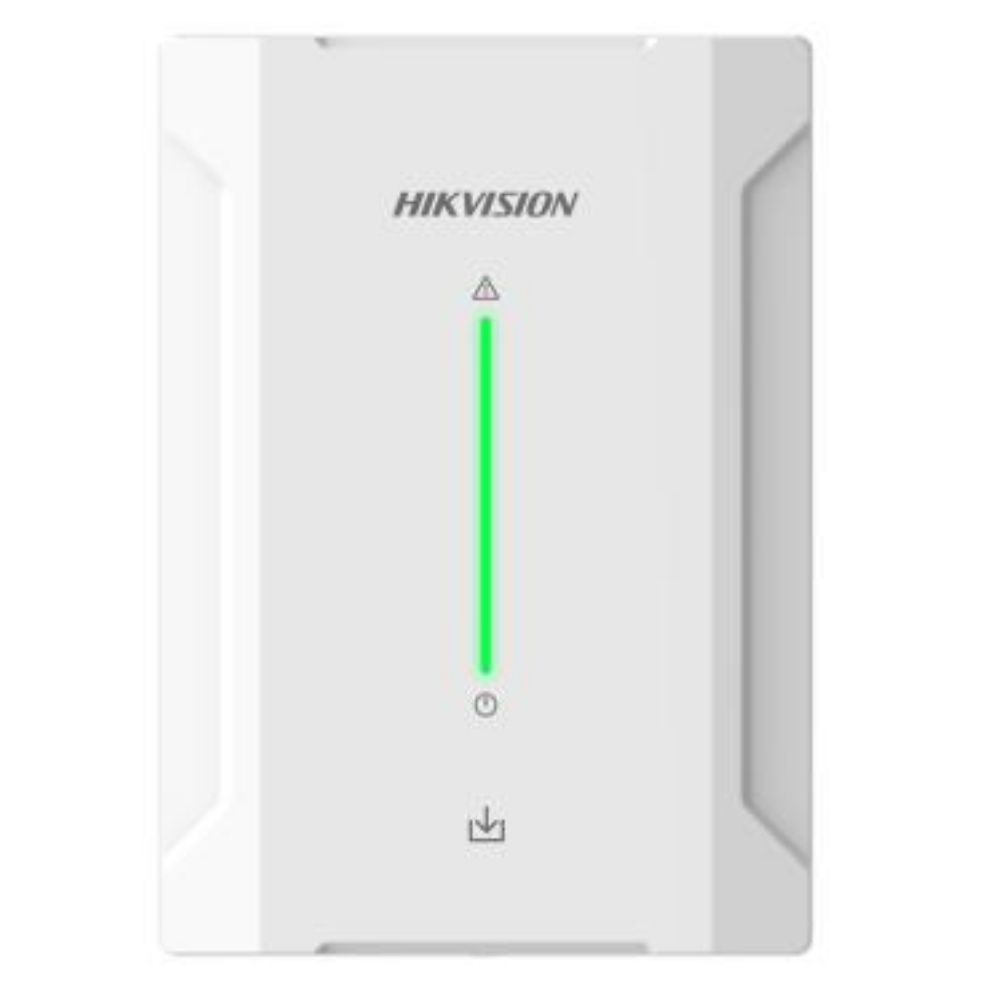

The Hikvision DS-PM1-I8O2-H is a wired input expander designed for the AX Hybrid Pro control panel. Featuring 8 on-board zones and 2 collector outputs, it expands system capacity for reliable wired integration. Communication with the control panel is achieved via Speed-X bus, supporting a maximum cable distance of up to 900m, and includes cascading capability for additional expanders.
Key Features
-
8 On-board Wired Zones: Expand detection capacity with reliable wired integration.
-
3EOL Support: Configurable connections for alarm (1kΩ), tamper (1kΩ), and fault (2.2kΩ).
-
Advanced Detection: Supports zone alarm, tamper, masking, fault, and short detection.
-
Power Output: 1 power output dedicated for wired detectors.
-
Dual Speed-X Bus: Includes 1 input for panel connection and 1 output for cascading expanders (up to 900m each).
-
Tamper Protection: Built-in protection against unauthorized access from both front and rear.
Downloads
Perfect For:
- Residential villas
- Retail shops
- Small offices
- Hotels and hospitality
- Medium-sized commercial sites
Installer Tips
-
Cable Distance: Maintain up to 900m between the expander and control panel; cascading adds another 900m.
-
Power Planning: Use the dedicated 500 mA output for powering wired detectors to avoid overloading.
-
3EOL Setup: Ensure proper resistor values (1kΩ, 1kΩ, 2.2kΩ) for alarm, tamper, and fault detection.
-
Tamper Switch: Verify front and rear tamper switches are properly seated during installation.
Quick-Read Specs
| Specification |
Detail |
| Alarm Inputs |
8 |
| I/O Outputs |
2 (for relay module connection) |
| Bus Communication |
2 × Speed-X (1 input, 1 output) |
| Power Supply |
11–24 VDC (typical 12 VDC) |
| Power Consumption |
Max: 119 mA @ 12 VDC | Quiescent: 45 mA @ 12 VDC |
| Output Voltage / Current |
9–12 VDC / Max 500 mA |
| Indicators |
1 × Power LED, 1 × Fault LED |
| Operating Temperature |
-10°C to +40°C (14°F to 104°F) |
| Operating Humidity |
10%–90% (non-condensing) |
| Dimensions (W × H × D) |
110 × 155 × 32 mm |
| Weight |
252.5 g |
| Shell Material |
Plastic |
Extra Info
Reliable Wired Expansion
The DS-PM1-I8O2-H enhances the AX Hybrid Pro system by adding 8 fully wired zones, ideal for projects where stability and accuracy are required. This allows integration of traditional wired sensors alongside wireless devices for a hybrid solution.
Flexible Zone Configuration
With 3EOL resistor support (1kΩ alarm, 1kΩ tamper, 2.2kΩ fault), installers can fine-tune each zone to detect multiple conditions such as intrusion, tamper, and faults. This improves diagnostic capability and minimizes false alarms.
Long-Distance Communication
Featuring a dual Speed-X bus design, the module supports up to 900m distance per bus line, with cascading capability to add multiple expanders. This makes it suitable for both small buildings and larger sites with distributed zones.
Dedicated Power Output
The built-in 500 mA power output provides stable power to connected wired detectors, reducing the need for external supplies and simplifying installation.
Comprehensive Tamper Protection
Equipped with front and rear tamper switches, the expander protects against unauthorized opening or removal, ensuring system security at both physical and electronic levels.
Installer-Friendly Indicators
Onboard LED indicators (Power and Fault) give at-a-glance system status, helping installers quickly verify proper operation and detect issues during setup and maintenance.
Q&A
Q1: How many zones can I expand with this module?
A: Each DS-PM1-I8O2-H provides 8 wired zones and 2 outputs.
Q2: What is the maximum distance between the control panel and expander?
A: Up to 900m via Speed-X bus, plus an additional 900m for cascaded units.
Q3: Can I connect multiple expanders?
A: Yes, using the Speed-X bus cascade mode, multiple expanders can be daisy-chained.
Q4: What kind of power supply is required?
A: The module operates on 11–24 VDC (typical 12 VDC).
Q5: Is it suitable for commercial environments?
A: Yes, it is designed for small to medium installations such as shops, hotels, and offices.
