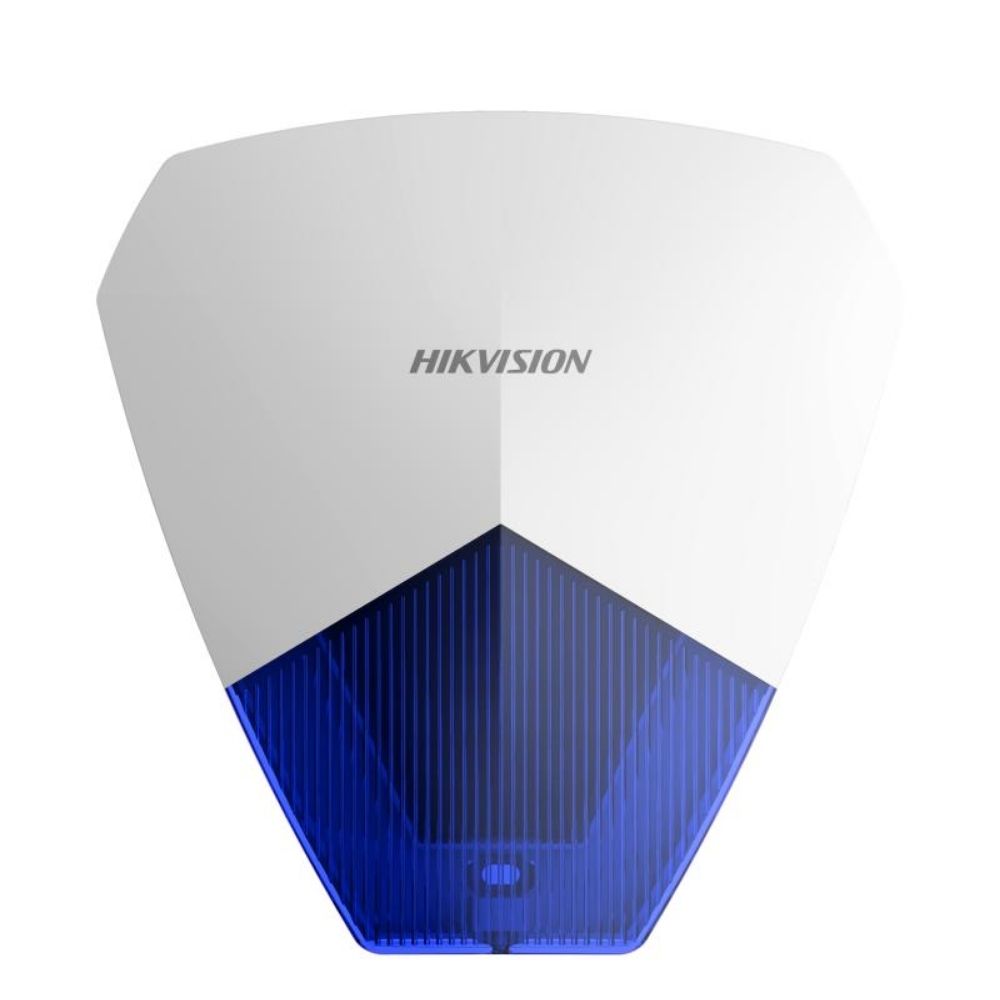

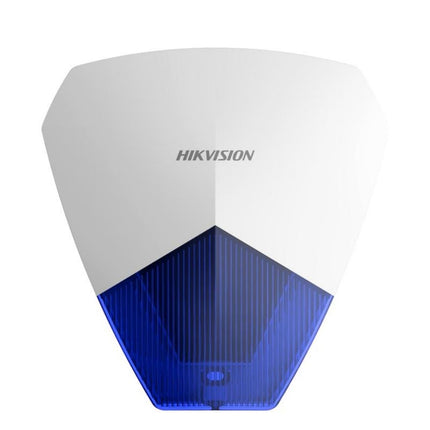

The Hikvision DS-PS1-B is a reliable wired sounder designed to integrate with wired control panels. Powered via 12V output voltage from the panel, it can deliver an alarm of up to 105dB. The sounder is suitable for both indoor and outdoor use, with separately configurable LED flash and sounder indication. Its compact design, IP54-rated protection, and easy installation structure make it an ideal choice for professional security systems.
Key Features
-
High Sound Output: 105dB at 30cm for loud alarm signaling.
-
Durable Protection: IP54-rated for indoor and outdoor use.
-
Independent Alerts: LED flash and sounder indication can be set separately.
-
Compact Design: Slim 33mm depth with robust PC+ABS housing.
-
Easy Installation: New structure design for simplified mounting.
Downloads
Perfect For:
- Residential homes
- Retail shops
- Small to medium offices
- Warehouses
- Hotels and commercial sites
Installer Tips
-
Power Connection: Ensure 8–16VDC input from the wired panel, max 0.22A.
-
Placement: Can be mounted indoors or outdoors; ensure IP54 rating is maintained.
-
Configuration: Set sounder and LED flash indications separately for tailored alerts.
-
Testing: Measure at 30cm to confirm 105dB output performance.
Quick-Read Specs
| Specification |
Detail |
| Model |
DS-PS1-B |
| Power Supply |
8 to 16 VDC, Max. 0.22A |
| Power Consumption |
Quiescent current: 0.96W |
| Operating Temperature |
-20℃ to +60℃ |
| Operating Humidity |
10% to 90% |
| IP Rate |
IP54 |
| Dimensions (W × H × D) |
140 × 134 × 33 mm |
| Weight |
185 g |
| Shell Material |
PC + ABS |
| Color |
Blue |
| Sound Pressure |
105 dB @ 30cm |
Extra Info
Powerful Sound Output
The DS-PS1-B is engineered to provide high-intensity audible alerts, delivering up to 105dB of sound pressure at close range. This ensures that any intrusion attempt is immediately noticed, effectively deterring intruders while providing clear notification to occupants and security personnel. The loud alarm signal is suitable for both residential and commercial environments, where quick awareness is critical for response.
Flexible Installation
Designed with versatility in mind, the unit can be mounted indoors or outdoors, adapting to different security setups. Its slim, compact profile makes it easy to install even in space-limited areas, while the IP54-rated enclosure provides protection against dust and splashing water. This durability ensures consistent performance in homes, offices, warehouses, and perimeter locations.
Customizable Alerts
The sounder goes beyond basic alarm functionality by allowing the LED strobe light and siren to be configured independently. Installers can tailor alerts to suit specific requirements—for example, using only the flashing LED for silent alerts in sensitive environments, or combining both light and sound for maximum deterrence in high-risk areas. This adaptability enhances usability across different applications.
Energy Efficient
Despite its powerful performance, the DS-PS1-B is designed with energy efficiency in mind. With a low quiescent power consumption of just 0.96W, it reduces the strain on the system’s power supply, ensuring reliable operation without unnecessary energy waste. This makes it particularly suitable for long-term use in large installations where power efficiency contributes to overall system sustainability.
Q&A
Q1: How loud is the DS-PS1-B sounder?
A: It provides up to 105dB at 30cm, ideal for clear and strong alarm alerts.
Q2: Can it be used outdoors?
A: Yes, with an IP54 rating, it is suitable for both indoor and outdoor applications.
Q3: What power supply is required?
A: It operates on 8–16VDC with a maximum of 0.22A.
Q4: Can the LED and sounder be configured separately?
A: Yes, both indications can be set independently.
Q5: What is the material of the enclosure?
A: The housing is made of durable PC+ABS plastic.
