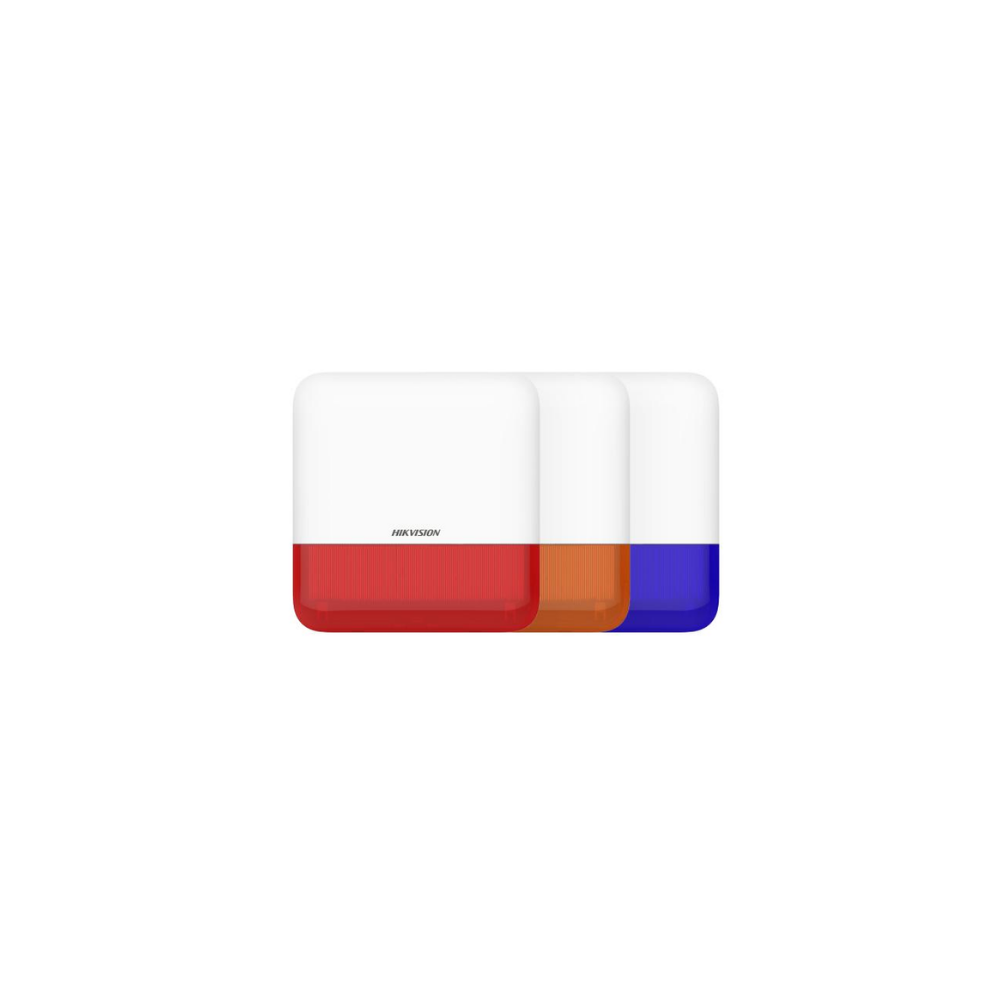

The Hikvision DS-PS1-E-WB is a reliable wireless outdoor sounder designed for robust perimeter protection. With a loud 110 dB buzzer, tamper-proof design, and multiple alarm sounds, it enhances deterrence and ensures fast intrusion alerts. Featuring IP65 protection, AES-128 encryption, and long-lasting battery life, this unit is built for secure, all-weather performance.
Key Features
-
Secure Wireless Communication: Operates on 433 MHz two-way wireless with frequency hopping to resist jamming.
-
Long Battery Life: Up to 3 years of standby time (triggered every two weeks, 90s alert duration).
-
High Sound Output: 110 dB buzzer ensures loud, clear alarm notifications.
-
Multiple Alarm Types: Supports fire, panic, and intrusion alarm sounds.
-
Tamper Protection: Front and rear panel tamper-proof for enhanced security.
-
Remote Configuration: Fully configurable via mobile App.
-
Durable Outdoor Design: IP65-rated housing for reliable use in harsh weather.
Downloads
Perfect For:
- Residential property perimeters
- Business storefronts and entrances
- Warehouses and industrial sites
- Parking lots and open outdoor areas
- School campuses and institutional facilities
Installer Tips
-
Mounting Height: Install at 2.5–3.5 meters high for optimal sound coverage.
-
Battery Check: Ensure proper insertion of default battery or 12V DC power option.
-
Weather Protection: Choose a location with partial shade to extend device life.
-
Test Before Use: Trigger each alarm sound type (fire, panic, intrusion) to verify function.
-
Pairing: Use the mobile App for easy remote configuration and enrollment.
Quick-Read Specs
| Specification |
Detail |
| Wireless Frequency |
433 MHz, 2GFSK modulation |
| Transmission Range |
Up to 900m (open area) |
| Buzzer Output |
110 dB |
| Alarm Types |
Fire, Panic, Intrusion |
| Battery Life |
Up to 3 years (standby) |
| Power Supply |
Battery (default) or 12V DC |
| IP Rating |
IP65 |
| Operating Temperature |
-20 °C to 60 °C (-4 °F to 140 °F) |
| Dimensions |
190 × 200 × 47.3 mm (7.48" × 7.87" × 1.86") |
| Weight |
606.5 g (21.4 oz) |
| Material |
PC + ABS |
| Installation |
Wall Mounting |
Extra Info
Advanced Wireless Security
Using AES-128 encryption with frequency hopping, the DS-PS1-E-WB ensures stable, anti-jamming communication for critical security operations.
Versatile Power Options
Supports both long-lasting battery and 12V DC external power, offering flexibility for different installation environments.
Smart Control
Fully manageable via the Hikvision mobile App, allowing remote configuration, alarm testing, and quick system integration.
All-Weather Durability
With an IP65 rating and rugged PC+ABS housing, the sounder is built to withstand dust, rain, and outdoor conditions.
Multi-Alarm Functionality
Three distinct alarm sounds enhance response efficiency, helping users quickly identify emergency types (fire, panic, intrusion).
