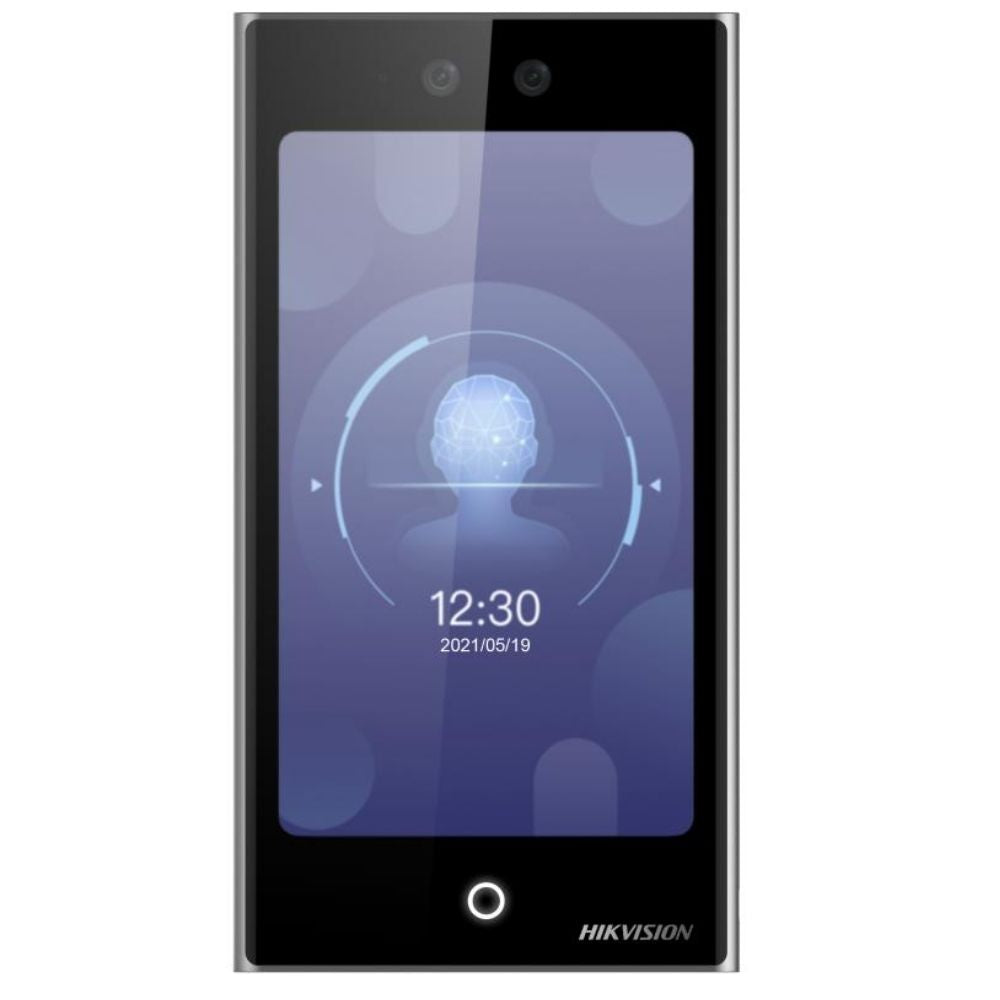

The Hikvision DS-K1T673DWX is a high-performance face recognition terminal designed for modern access control and security applications. Featuring a 7-inch capacitive touch screen and 2 MP wide-angle camera, it delivers fast and accurate identification in multiple environments, from corporate offices to schools and industrial sites. With support for card, face, and fingerprint authentication, along with mask detection and mobile connectivity, it provides flexible, secure, and convenient access management.
Key Features
-
Fast & Accurate Recognition – Recognition distance of 0.3–3 m, with < 0.2 s per user and ≥ 99% accuracy.
-
Multi-Authentication – Supports face, M1, Felica, DESfire cards, and optional fingerprint module.
-
Large Capacity – Up to 10,000 faces, 10,000 fingerprints, 50,000 cards, and 150,000 events.
-
Mask Detection – Identifies faces even when masks are worn.
-
Flexible Connectivity – Supports ISAPI, ISUP 5.0, TCP/IP (IPv4 & IPv6), Wi-Fi, RS-485, Wiegand, and USB.
-
Durable Design – IP65 protection, suitable for indoor and semi-outdoor installations.
-
User-Friendly Display – 7-inch IPS touch screen for intuitive operation and quick enrollment.
Downloads
Perfect For:
- Corporate offices and high-security buildings
- Schools, campuses, and educational institutions
- Factories, industrial sites, and staff entrances
- Residential complexes and multi-tenant dwellings
Installer Tips
-
Power Supply: 12–24 VDC, 2 A; power consumption ≤ 12 W.
-
Placement: Mount at eye level for accurate face recognition (0.3–3 m).
-
Networking: Configure wired or wireless connections; supports IPv4/IPv6.
-
Storage Expansion: Compatible with SD cards for local event recording.
-
Temperature Range: Operates reliably from -30 °C to 60 °C (-22 °F to 140 °F).
Quick-Read Specs
| Specification |
Detail |
| Model |
DS-K1T673DWX |
| Type |
Face Recognition Terminal |
| Screen |
7-inch IPS capacitive touch |
| Camera |
2 MP, HFOV 75.5°, VFOV 41.5°, DFOV 87° |
| Recognition Speed |
< 0.2 s per user |
| Recognition Accuracy |
≥ 99% |
| Card Support |
M1, DESfire, Felica |
| Card Distance |
Present card on screen to authenticate |
| Capacity |
10,000 faces / 10,000 fingerprints / 50,000 cards / 150,000 events |
| Connectivity |
Ethernet, Wi-Fi, Bluetooth, RS-485, Wiegand, USB |
| Power |
12–24 VDC, 2 A |
| Protection |
IP65 |
| Operating Temp. |
-30 °C to 60 °C (-22 °F to 140 °F) |
| Dimensions |
110.5 × 209.2 × 24 mm (4.35" × 8.24" × 0.94") |
| Weight |
Gross: 1.06 kg (2.34 lb), Net: 0.57 kg (1.26 lb) |
Extra Info
Face & Multi-Person Recognition
Supports single-user and multi-user recognition (up to 5 people simultaneously), enabling fast verification in high-traffic areas.
Mask Detection & Anti-Spoofing
Ensures accurate authentication even with face coverings and protects against photo or video spoofing.
Audio & Time Functions
Built-in microphone, speaker, and audio prompts with time synchronization for real-time notifications.
Expandable Accessories
Compatible with base brackets (DS-KAB6-D1), wall brackets (DS-KAB6-ZU1, DS-KAB6-W1), and peripheral modules (DS-KAB673-FB, DS-KAB673-FBQR, DS-KAB673-BQR, DS-KAB673-B).
Q&A
Q1: How fast is face recognition?
Recognition occurs in under 0.2 seconds per user.
Q2: How many users can it store?
Up to 10,000 faces, 10,000 fingerprints, and 50,000 cards.
Q3: Can it detect masked faces?
Yes, it has built-in mask detection and anti-spoofing capabilities.
Q4: Is it suitable for outdoor use?
Yes, with IP65 protection for dust and water resistance.
Q5: What connectivity options are supported?
Ethernet, Wi-Fi, Bluetooth, RS-485, Wiegand, and USB for external modules.
Q6: Can it integrate with existing access control systems?
Yes, it supports ISAPI, ISUP 5.0, TCP/IP (IPv4 & IPv6), and Wiegand interfaces.
