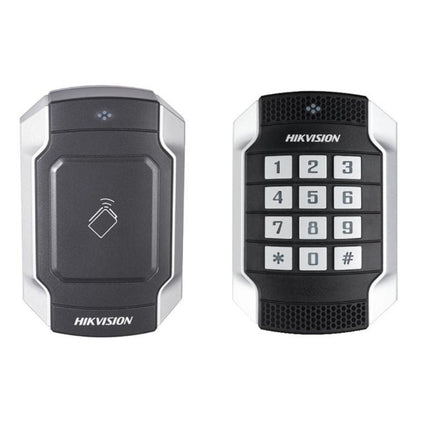

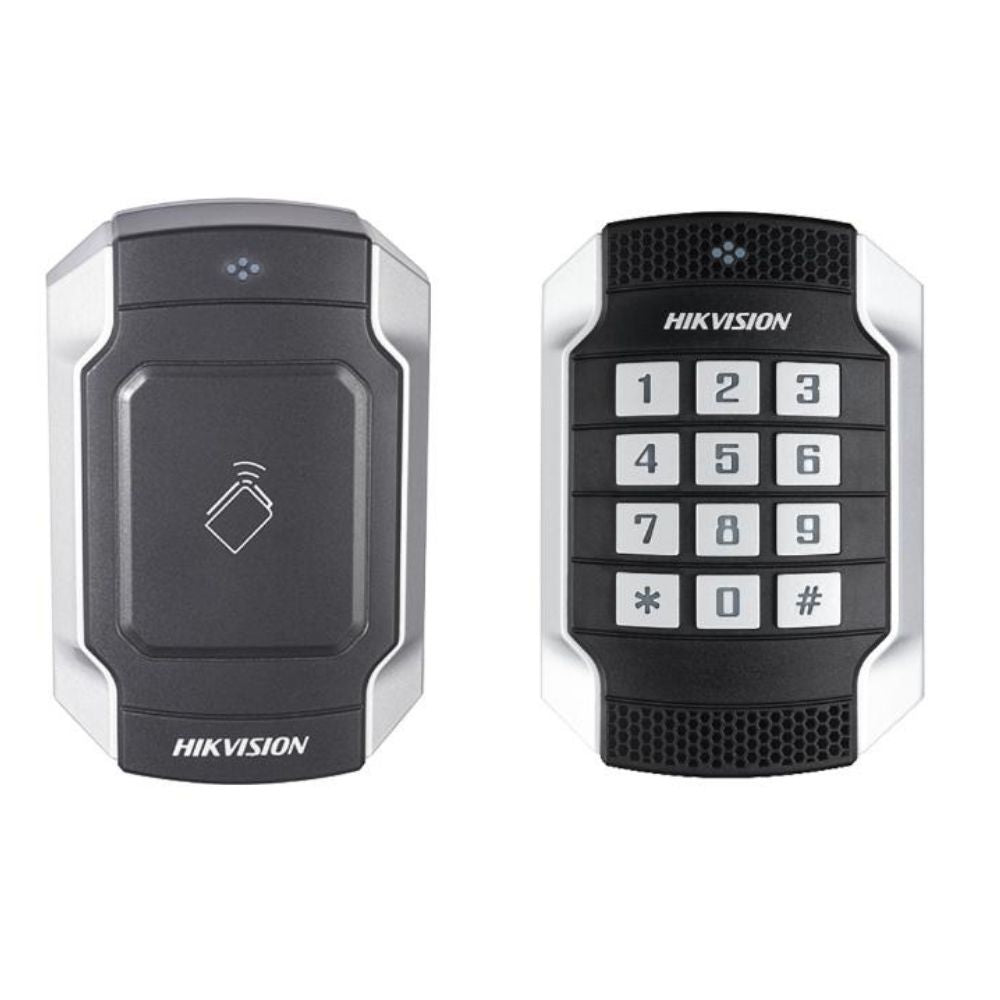

The Hikvision DS-K1104 is a durable and vandal-proof card reader from the Pro 1104 Series, designed for secure access control applications. Built with a PC + zinc-alloy shell, it provides a strong defense against tampering and damage. Supporting M1 card reading with RS-485 and Wiegand interfaces, it offers flexible integration with access control systems. With an IK10 vandal-proof rating, built-in beeper, and optional keypad versions, it delivers both security and convenience in demanding environments.
Key Features
-
Robust Build – PC + zinc-alloy material shell for enhanced durability.
-
Secure Access – Supports M1 card reading at 13.56 MHz.
-
Flexible Integration – Compatible with RS-485 and Wiegand interfaces.
-
Vandal-Resistant – IK10 protection against impacts and tampering.
-
Audible Alerts – Built-in beeper for feedback.
-
Model Options – without a keypad.
Downloads
Perfect For:
- Commercial and residential building access control
- High-security environments requiring vandal-proof hardware
- Indoor and outdoor installations using gang boxes
- Offices, warehouses, and gated facilities
Installer Tips
-
Mounting – Designed for 86 & 120 gang boxes.
-
Wiring – Ensure correct RS-485 or Wiegand connections.
-
Environment – Supports temperatures from -20 °C to 65 °C.
-
Power Supply – Use 12 VDC, ensuring ≤ 500 mA power draw.
-
Humidity – Operates reliably at 10%–90% (non-condensing).
Quick-Read Specs
| Specification |
Detail |
| Model |
DS-K1104 |
| Type |
Pro 1104 Series Vandal-Proof Card Reader |
| Authentication |
M1 Card |
| Frequency |
13.56 MHz |
| Interfaces |
RS-485, Wiegand |
| Material |
PC + Zinc-Alloy |
| Appearance |
Metal, Vandal-Proof |
| Dimensions |
118 × 76 × 23 mm (4.65” × 2.99” × 0.91") |
| Weight |
≤ 0.52 kg (1.1 lb) |
| Installation |
86 & 120 Gang Box |
| Power Supply |
12 VDC, ≤ 500 mA |
| Power Consumption |
≤ 2 W |
| Operating Temperature |
-20 °C to 65 °C (-4 °F to 149 °F) |
| Operating Humidity |
10% to 90% (non-condensing) |
| Protection |
IK10 Vandal Proof |
| Keypad |
DS-K1104M: No keypad / DS-K1104MK: 12-key keypad |
| Buzzer |
Supported |
Q&A
Q1: What type of card does the DS-K1104 support?
It supports M1 cards with a 13.56 MHz frequency.
Q2: Is the DS-K1104 vandal-proof?
Yes, it features an IK10-rated housing made of PC + zinc-alloy.
Q3: Can it be installed outdoors?
Yes, it is suitable for both indoor and outdoor applications when installed properly.
Q4: Does it come with a keypad?
The DS-K1104 itself does not include a keypad. However, a separate model, the DS-K1104MK, is available with a 12-key keypad (0–9, *, #).
Q5: What accessories are available?
It is compatible with the optional DS-K7M102-M M1 card.
