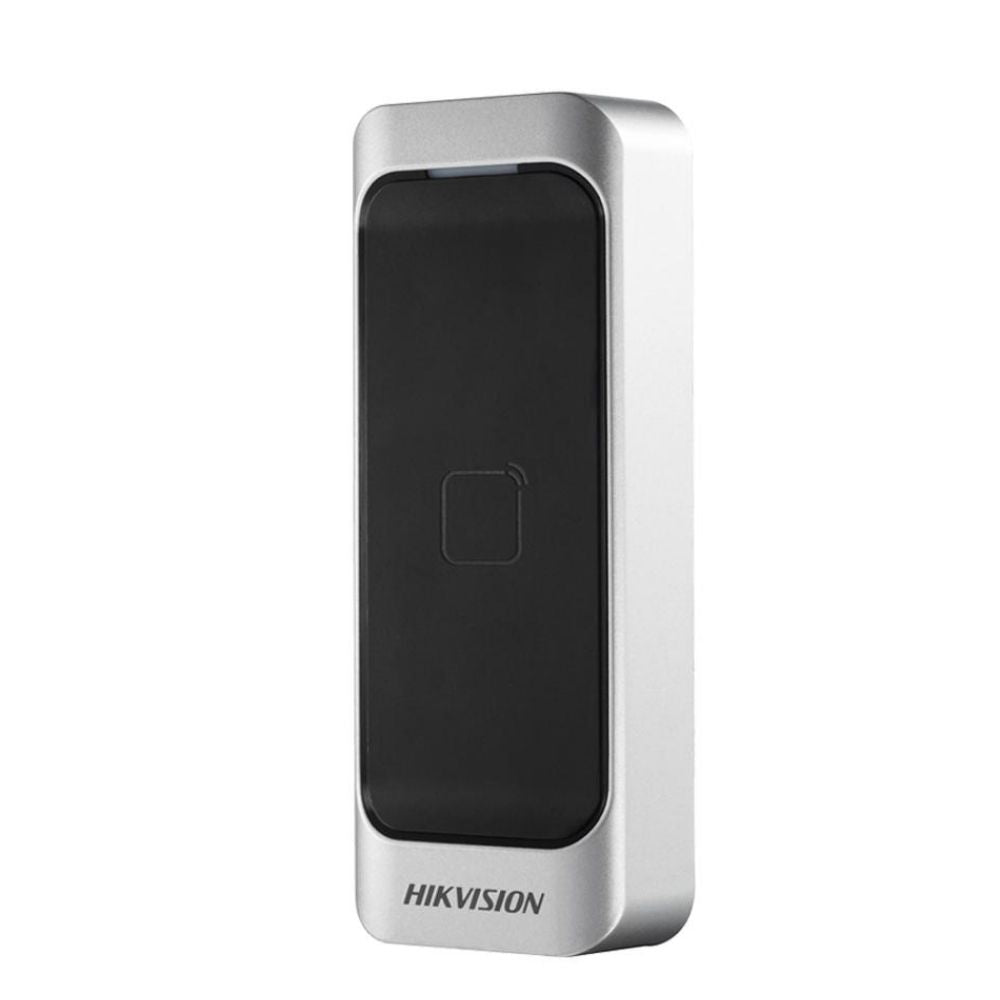

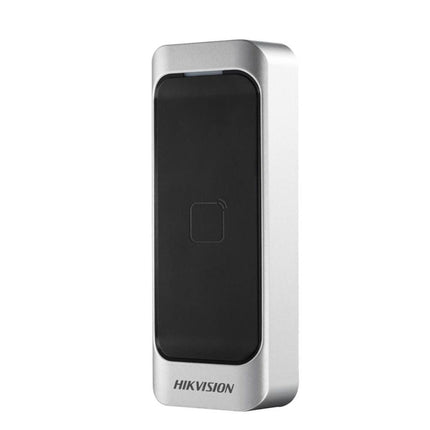

The Hikvision DS-K1107AM is a high-performance card reader designed for secure and efficient access control. Powered by a 32-bit high-speed processor, it ensures stable operation and long service life with built-in watchdog design. Supporting M1 card reading at 13.56 MHz, RS-485, Wiegand, and OSDP protocols, it integrates easily with modern access control systems. With an IP65 protection rating, tamper alarm support, and online upgrade function, the DS-K1107AM delivers durability and reliability for both indoor and outdoor installations.
Key Features
-
Powerful Performance – 32-bit high-speed processor for stable operation.
-
Flexible Integration – Supports RS-485, Wiegand (W26/W34), and OSDP protocols.
-
Secure Authentication – Built-in M1 card reading module at 13.56 MHz.
-
Tamper Protection – Built-in tamper alarm support for enhanced security.
-
Audible Feedback – Integrated buzzer for card reading status indication.
-
Self-Repairing Design – Watchdog function automatically restores normal operation.
-
Weatherproof Build – IP65 protection for indoor and outdoor use.
Downloads
Perfect For:
- Residential and commercial access control
- Secure facility entry points
- Outdoor installations requiring IP65-rated devices
- Offices, warehouses, and gated complexes
Installer Tips
-
Mounting – Supports wall mounting with screws (not suitable for gang box).
-
Connections – Set Wiegand protocol via DIP switch; confirm correct wiring for RS-485/OSDP.
-
Power Supply – Use 12 VDC with ≤ 2 W power consumption.
-
Environment – Operates in -20 °C to 65 °C (-4 °F to 149 °F).
-
Moisture Protection – Ensure proper sealing for outdoor applications.
Quick-Read Specs
| Specification |
Detail |
| Model |
DS-K1107AM |
| Type |
Vandal-Resistant Card Reader |
| Processor |
32-bit |
| Authentication |
M1 Card |
| Frequency |
13.56 MHz |
| Reading Distance |
≤ 50 mm (≤ 1.97") |
| Interfaces |
RS-485, Wiegand (W26/W34), OSDP |
| Tamper Alarm |
Supported |
| Indicators |
Power & Status |
| Buzzer |
Supported |
| Power Supply |
12 VDC |
| Power Consumption |
≤ 2 W |
| Operating Temperature |
-20 °C to 65 °C (-4 °F to 149 °F) |
| Operating Humidity |
10% to 90% (non-condensing) |
| Protection |
IP65 |
| Dimensions |
115 × 44 × 22 mm (4.53'' × 1.73'' × 0.87'') |
| Installation |
Wall mounting with screws (no gang box support) |
Q&A
Q1: What type of card does the DS-K1107AM support?
It supports M1 cards operating at 13.56 MHz.
Q2: Is this reader weatherproof?
Yes, it has an IP65 protection level, making it suitable for outdoor installations.
Q3: How far can it read a card?
It supports card reading distances of up to 50 mm (1.97").
Q4: Does it have a buzzer for card reading feedback?
Yes, the built-in buzzer provides audible status alerts.
Q5: Can it be installed on a gang box?
No, it only supports wall mounting with screws, not gang box installation.
