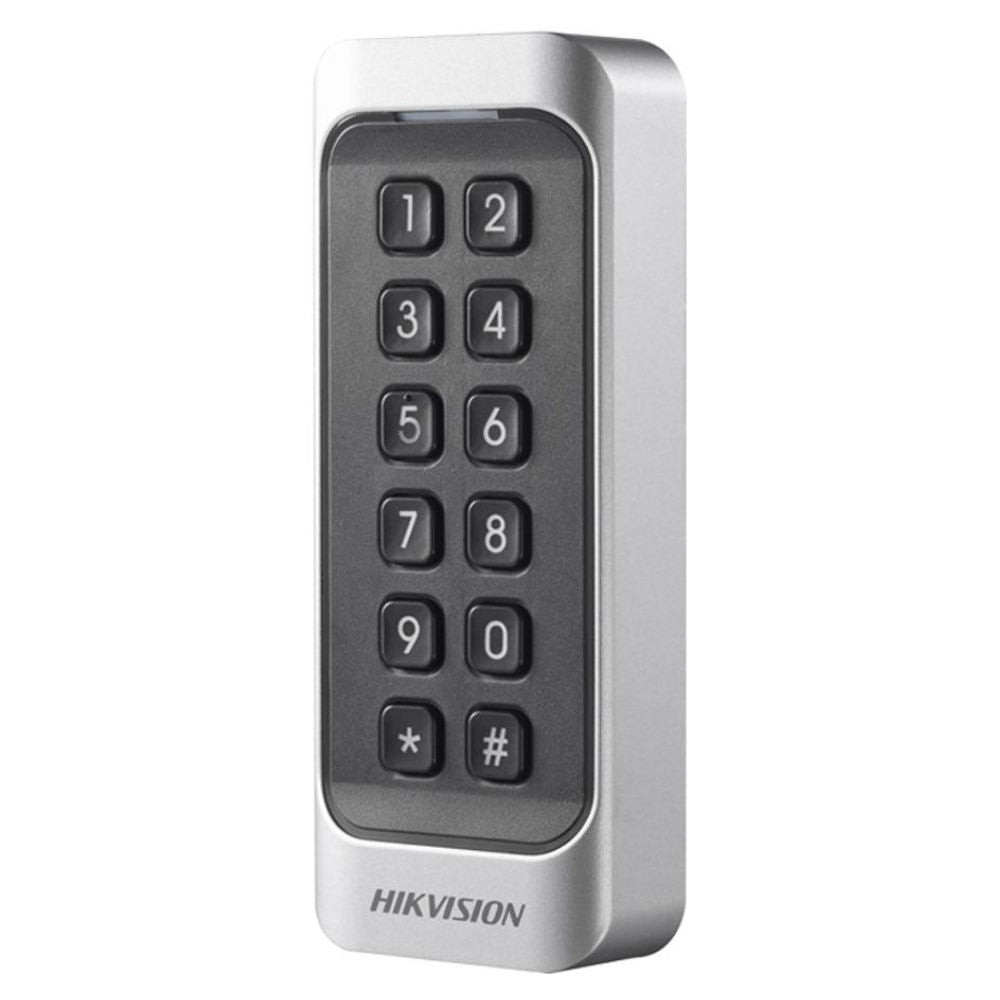

The Hikvision DS-K1107AMK is a high-performance card reader designed to deliver secure and reliable access control. Equipped with a 32-bit high-speed processor, it supports multiple communication protocols, including RS-485, Wiegand, and OSDP, ensuring flexible integration into modern access systems. With its built-in M1 card reading module, tamper alarm, and IP65 protection, it provides stable performance for both indoor and outdoor environments.
Key Features
-
Fast Processing – Equipped with a 32-bit high-speed processor for stable performance.
-
Multiple Protocols – Supports RS-485, Wiegand (W26/W34), and OSDP communication.
-
Secure Access – Built-in M1 card reading module (13.56 MHz) with tamper alarm support.
-
User Feedback – Integrated buzzer provides instant status indication.
-
Reliable Operation – Watchdog design ensures automatic recovery from exceptions.
-
Flexible Installation – Wall-mount design, compact and easy to deploy.
-
Durable Design – IP65-rated for dust and water protection.
Downloads
Perfect For:
- Secure access points in offices, schools, and commercial buildings
- Indoor or outdoor installation in protected environments
- Integration with Hikvision access control systems
Installer Tips
-
Mounting Surface: Install on flat walls using screws; not suitable for gang box mounting.
-
Power: Requires a 12 VDC power supply with ≤ 2 W consumption.
-
Outdoor Use: Ensure proper sealing to maintain IP65 protection.
-
Wiring: Set Wiegand protocol via DIP switch as required.
Quick-Read Specs
| Specification |
Detail |
| Model |
DS-K1107AMK |
| Type |
Card Reader with Keypad |
| Processor |
32-bit high-speed |
| Card Frequency |
13.56 MHz (M1 card) |
| Communication |
RS-485, Wiegand (W26/W34), OSDP |
| Power Supply |
12 VDC |
| Power Consumption |
≤ 2 W |
| Operating Temp. |
-20 °C to 65 °C (-4 °F to 149 °F) |
| Operating Humidity |
10% to 90% (non-condensing) |
| Protection Level |
IP65 |
| Installation |
Wall mount with screws |
| Dimensions |
115 × 44 × 22 mm (4.53'' × 1.73'' × 0.87'') |
| Weight |
Net: 0.16 kg (0.35 lb) / Gross: 0.25 kg (0.55 lb) |
| Keypad |
12 Keys (0–9, *, #) |
| Buzzer |
Supported |
Q&A
Q1: Does it support two-way communication?
No, it is a card reader only. Communication is handled via protocols (RS-485, Wiegand, OSDP).
Q2: Can it be used outdoors?
Yes, with its IP65 protection, it can be installed outdoors in sheltered locations.
Q3: What type of cards does it support?
It supports M1 cards with a 13.56 MHz frequency.
Q4: Does it come with a keypad?
Yes, it includes a 12-key keypad (0–9, *, #).
Q5: Can it be upgraded?
Yes, it supports online firmware upgrades.
