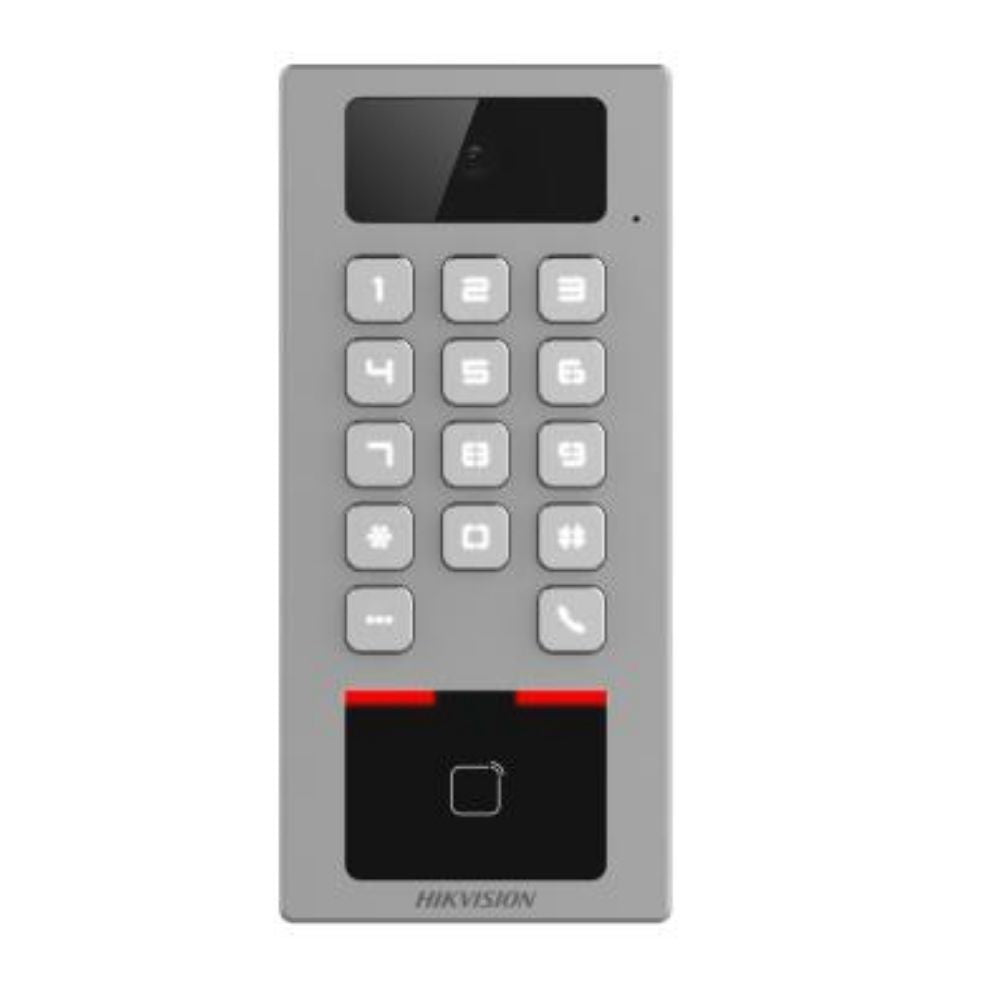

The Hikvision DS-K1T502DBWX-C is a versatile access control terminal that combines door management, video intercom, and mobile connectivity in one compact device. With IP65 and IK09 protection, zinc alloy construction, and support for multiple authentication methods, it ensures both durability and flexibility for secure environments. Integrated with Hik-Connect, Bluetooth, and SIP protocol, it offers modern convenience for both administrators and users.
Key Features
-
All-in-One Solution – Combines access control, intercom, and video monitoring functions.
-
Durable Build – Zinc alloy housing with IP65 weatherproofing and IK09 vandal resistance.
-
Flexible Authentication – Supports card, PIN, Bluetooth, and multi-factor authentication.
-
Mobile Integration – Remote control and door unlocking via the Hik-Connect app.
-
Video Intercom – Built-in 2 MP camera with SIP protocol for connection to PBX servers and indoor stations.
-
Smart Communication – RS-485 and Wiegand interfaces for connecting external devices.
-
Expandable Storage – Supports up to 256 GB SD card memory for event recording.
-
Global Language Support – Multiple languages available for wider usability.
Downloads
Perfect For:
- Office buildings and secure facilities requiring video intercom + access control
- Multi-tenant residences and commercial complexes
- Sites needing mobile-based access (Bluetooth + Hik-Connect)
- Indoor and outdoor security installations
Installer Tips
-
Power Supply: Requires 12–24 VDC / 1 A with ≤ 12 W consumption.
-
Mounting: Ensure stable, flat surfaces for secure installation.
-
Connectivity: Configure priority between wired and wireless networks for reliability.
-
SIP Servers: Compatible with Brekeke, miniSipServer, FreePBX, Asterisk, 3CX, ELASTIX, and PBXware.
-
Temperature Range: Operates in extreme environments (-40 °C to 70 °C).
Quick-Read Specs
| Specification |
Detail |
| Model |
DS-K1T502DBWX-C |
| Type |
Access Control Terminal with Video Intercom |
| OS |
Linux |
| CPU |
960 MHz |
| Memory |
ROM: 4 GB / RAM: 256 MB |
| Camera |
2 MP, H.264/H.265, F2.0 aperture |
| FOV |
HFOV: 110° / VFOV: 81° / DFOV: 122° |
| Audio |
Built-in mic + speaker, two-way audio |
| Networking |
IPv4/IPv6, RS-485, Wiegand, Wi-Fi (2.4 GHz), Bluetooth 2.1/4.2 |
| Card Capacity |
100,000 users |
| Event Capacity |
300,000 events |
| Card Type |
M1 and DESfire cards |
| Card Distance |
0–3 cm |
| Storage |
Up to 256 GB SD card |
| Power |
12–24 VDC / 1 A, ≤ 12 W |
| Protection |
IP65, IK09 |
| Operating Temp. |
-40 °C to 70 °C (-40 °F to 158 °F) |
| Dimensions |
[Standard housing dimensions – to be confirmed] |
| Accessories |
DS-KAB502-S1 Protective Shield, DS-KAB502-S2 Wall Mounting Box |
Q&A
Q1: Does it support video intercom?
Yes, it features a 2 MP camera and SIP protocol for video calls.
Q2: Can it be used outdoors?
Yes, with IP65 weatherproofing and IK09 vandal protection, it’s suitable for outdoor use.
Q3: How many users can it store?
Up to 100,000 card users and 300,000 events.
Q4: Does it support mobile unlocking?
Yes, via Bluetooth and the Hik-Connect mobile app.
Q5: What accessories are available?
Protective shield (DS-KAB502-S1) and wall mounting box (DS-KAB502-S2).
