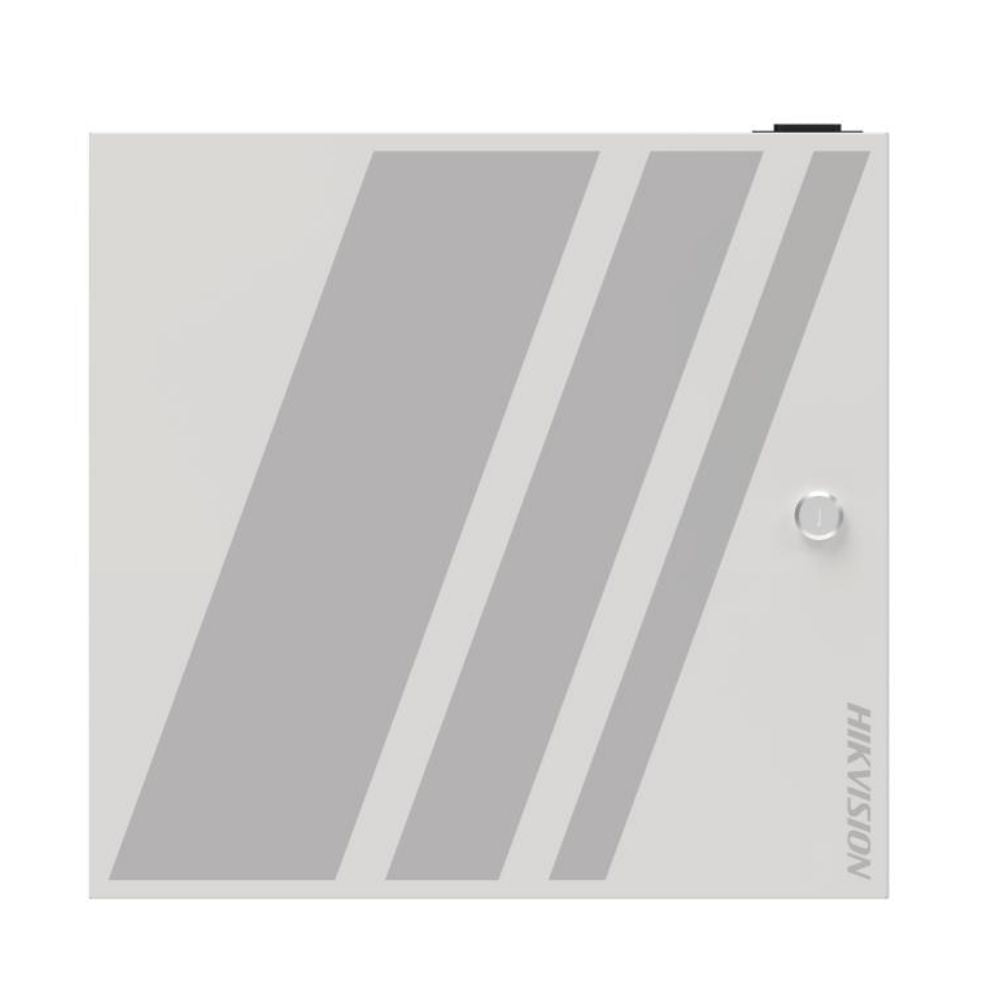

The Hikvision DS-K2704X is a professional 4-door access controller that supports web-based configuration, eliminating the need for PC software. With scalable architecture, it can extend control to up to 128 doors by connecting additional access modules. Its robust design, redundancy features, and support for advanced access control functions make it ideal for large-scale projects such as airports, banks, subways, campuses, and corporate facilities.
Key Features
-
4-Door Access Control – Natively supports 4 doors, expandable to 128 doors with access modules.
-
Redundant RS-485 Design – Ensures stable communication with multiple modules.
-
Web Configuration – Simple management via browser, no software required.
-
Advanced Security Functions – Supports anti-passback, multi-door interlocking, and multi-factor authentication.
-
Large Capacity – Stores up to 100,000 users, 10,000 fingerprints, 200,000 cards, and 600,000 events.
-
Battery Backup Support – Built-in charging and discharging functionality for continuous operation.
-
Status Indicators – Dedicated LEDs for power, network, RS-485, and door status for quick diagnostics.
Downloads
Perfect For:
- Large corporate offices and industrial complexes
- Banking and financial institutions
- Airports and subway systems
- Government buildings and campuses
- Multi-site enterprise projects
Installer Tips
-
RS-485 Loops: Do not connect more than 16 access modules per loop for stable performance.
-
Backup Power: Use a reliable battery for uninterrupted operation in case of power failure.
-
Web Access: Configure all settings directly through the web browser for faster setup.
-
Environment: Keep installation within -10 °C to 55 °C, with non-condensing humidity up to 90%.
-
Capacity Planning: Consider the event and card limits when deploying in large-scale environments.
Quick-Read Specs
| Specification |
Detail |
| Model |
DS-K2704X |
| Type |
Access Controller |
| Doors Supported |
4 native, expandable up to 128 |
| Users |
100,000 |
| Fingerprints |
10,000 |
| Cards |
200,000 |
| Events |
600,000 |
| Interfaces |
4 lock control, 4 exit button, 4 door input, 8 alarm input, 4 alarm output |
| Card Readers |
8 RS-485 (OSDP) + 4 Wiegand |
| Network |
10/100/1000 Mbps self-adaptive |
| RS-485 |
7 ports (5 for modules, 2 for readers) |
| USB |
1 × USB 2.0 |
| Power Supply |
100–240 VAC |
| Power Consumption |
≤ 102 W |
| Battery Support |
Charging & discharging |
| Operating Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
| Humidity |
0–90% non-condensing |
| Installation |
Wall-mounted |
Extra Info
Scalable Design
The DS-K2704X is engineered for growth. Out of the box, it supports 4-door control, but with the addition of up to 62 DS-K2M002X access modules, it can be expanded to manage as many as 128 doors. This makes it ideal for both medium-scale facilities and large enterprise deployments such as airports, campuses, and corporate offices.
Advanced Access Functions
Built with enterprise security in mind, the controller offers powerful features including multi-factor authentication (card, PIN, or biometric integration), anti-passback (to prevent credential sharing), and interlocking (managing access between secured zones). These functions ensure compliance with strict security policies and add extra layers of protection for sensitive areas.
Web-Based Management
Unlike traditional controllers that require PC software, this unit features a built-in web server interface. Administrators and installers can configure, monitor, and update the system directly through any standard browser. This saves setup time, reduces IT overhead, and simplifies remote maintenance, making it more efficient to deploy in large projects.
Status Indicators
Equipped with 12 front-panel status indicators, the controller provides real-time feedback on system health, door states, alarms, and network connections. This visual guidance allows technicians to troubleshoot quickly, reducing downtime during installation and maintenance.
Q&A
Q1: How many doors can it control?
It supports 4 doors by default, expandable up to 128 with access modules.
Q2: Does it require software for setup?
No, all configurations are done directly via a web browser.
Q3: Can it support fingerprint authentication?
Yes, it can store up to 10,000 fingerprints.
Q4: Is there backup power support?
Yes, it supports battery charging and discharging for continuous uptime.
Q5: What industries is it best suited for?
It is designed for subways, airports, banks, enterprises, campuses, and large-scale projects.
