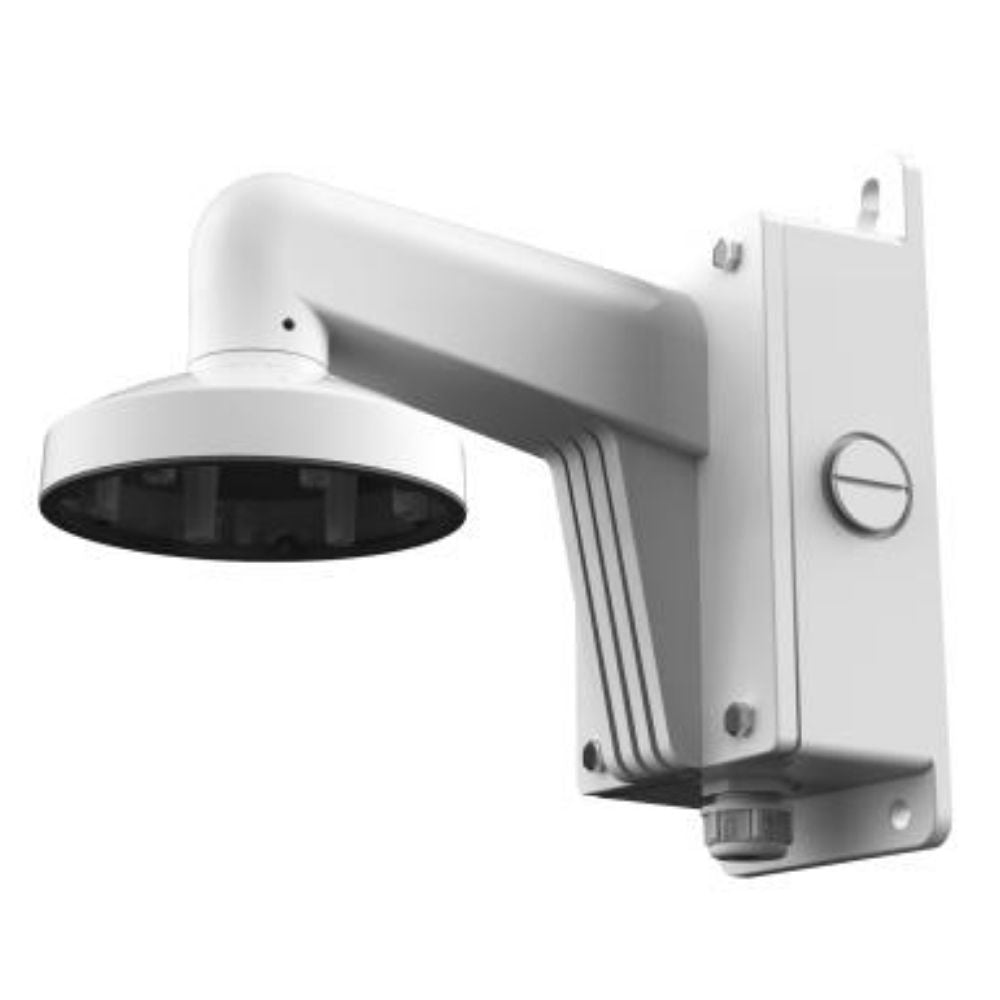

The Hikvision BRA‑1273ZJ‑130B‑TRL is a durable wall mounting bracket with integrated junction box designed for secure installation of compatible Hikvision dome cameras. Built from aluminum alloy and finished with a weather-resistant coating, it offers clean cable management, enhanced protection, and reliable performance in both indoor and outdoor environments.
Features
-
Integrated Junction Box – Conceals and protects wiring inside the bracket for a neat and secure installation.
-
Aluminum Alloy Construction – Lightweight yet sturdy with surface spray treatment for corrosion resistance.
-
Waterproof Design – Engineered for outdoor use with improved sealing to protect cables from moisture.
-
Dome Cap Compatibility – Designed to coordinate easily with camera dome caps and adapters.
-
Supports Up to 4.5 kg – Ideal for mounting a wide range of Hikvision dome cameras.
What’s Included
- BRA‑1273ZJ‑130B‑TRL Wall Mount Bracket
- Integrated Junction Box
- Mounting Screws & Fasteners
DOWNLOADS
Extra Info
Secure, Neat, and Efficient Installation
The BRA‑1273ZJ‑130B‑TRL is engineered to streamline camera installations with a built-in junction box that conceals wiring and reduces clutter. It also includes a pre-drilled cable entry hole and supports bayonet-style dome caps and adapters, enabling a professional-grade finish with minimal visible cabling.
Durability in Harsh Conditions
Designed for both indoor and outdoor applications, the bracket is built from aluminum alloy and treated with a surface spray coating for enhanced corrosion resistance. Its waterproof construction ensures long-term performance in environments exposed to rain, dust, and temperature variations.
Flexible Compatibility
This mount supports a variety of Hikvision dome cameras and is tested for a maximum load of 4.5 kg, making it a versatile choice for security professionals. Refer to the official datasheet for a detailed list of compatible models, including popular 2CD7XX and 2CD41XX series units.
Professional-Grade Build
From sturdy construction to its thoughtful design features, this bracket helps ensure reliable, tamper-resistant mounting for surveillance systems, all while maintaining a clean aesthetic on walls or flat vertical surfaces.
Tech Specs
| Specification |
Details |
| Model |
BRA‑1273ZJ‑130B |
| Description |
Wall Mounting Bracket with Junction Box for Dome Cameras |
| Material |
Aluminum Alloy with surface spray treatment |
| Color |
Hikvision White |
| Dimensions |
132 × 242.9 × 288.5 mm |
| Weight |
Approx. 1,475 g |
| Max Load |
4.5 kg |
| Mount Type |
Wall Mount |
| Cable Management |
Internal via integrated junction box with cable entry hole |
| Environmental Use |
Indoor / Outdoor |
| Camera Compatibility |
DS-2CD7X3PF(NF)-E(I)(Z), DS-2CD793PFWD-E(I)(Z), DS-2CD783F-EP, |
Q&A
Q: Is this bracket suitable for outdoor installations?
A: Yes, it is designed with weatherproof features and a sealed cable entry for safe outdoor use.
Q: What is the bracket made of?
A: It is made from aluminum alloy with a protective surface coating for durability and corrosion resistance.
Q: Can it support heavy cameras?
A: Yes, it supports up to 4.5 kg, which is ideal for most Hikvision dome models.
Q: Is cable management built into the bracket?
A: Yes, it includes an integrated junction box to conceal and route cables securely.
Q: What camera models are compatible?
A: The bracket supports multiple Hikvision dome models, such as those in the 2CD7XX and 2CD41XX series (see datasheet for full list).
