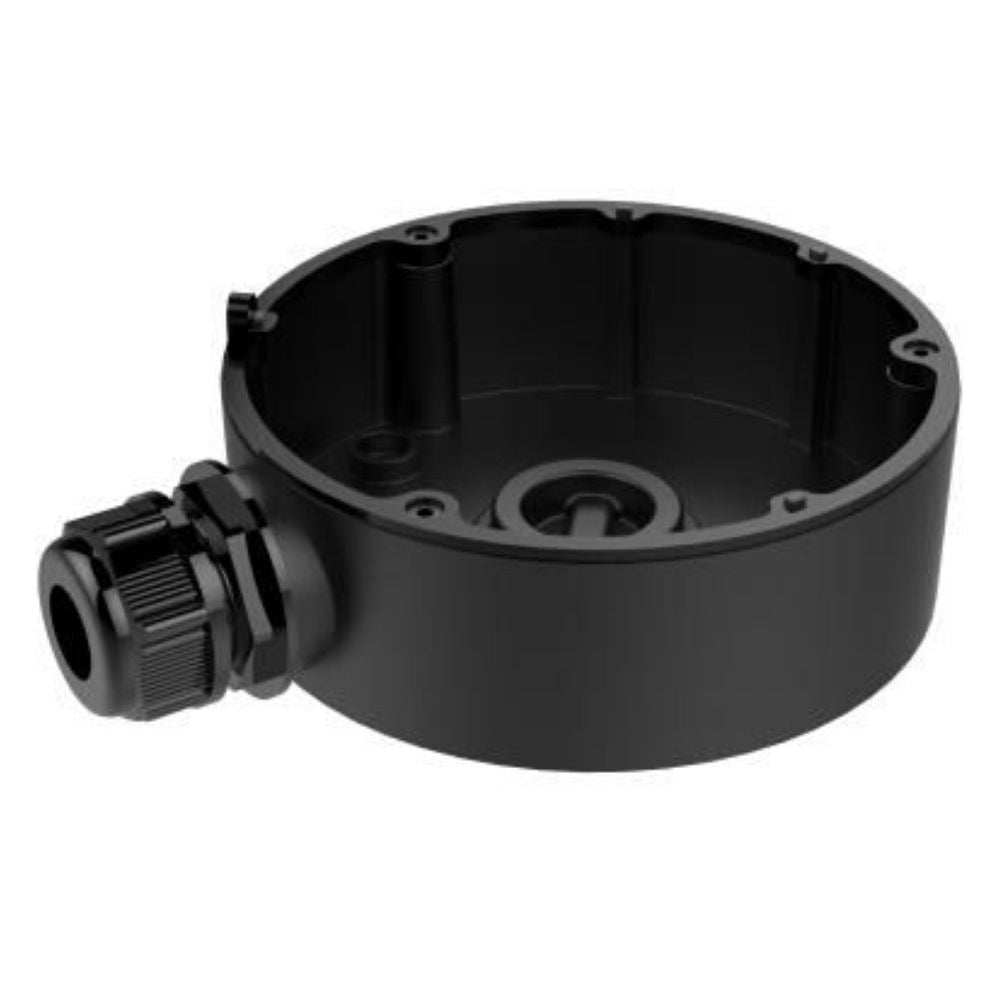

The Hikvision BRA-1280ZJ-DM18-BLACK is a compact and weather-resistant junction box designed for clean cable management and secure installation of compatible Hikvision dome cameras. Constructed from high-quality aluminum alloy with a sleek black finish, this junction box is ideal for both indoor and outdoor setups, offering a professional appearance and robust durability in demanding environments.
Features
-
Durable Construction – Made from premium aluminum alloy with a black surface spray finish for long-term corrosion resistance and a modern look.
-
Dual Cable Management Options – Includes both a side outlet and a bottom outlet to support flexible wiring approaches across various mounting conditions.
-
Weatherproof Design – Comes with an interchangeable bottom waterproof cover and a side gland nut for dependable sealing in outdoor applications.
-
Indoor & Outdoor Use – Engineered to perform reliably in a range of environments when installed with proper sealing materials.
-
Sleek Black Finish – Matches dark-colored dome cameras and offers a discreet, tamper-resistant look.
-
High Load Capacity – Supports up to 4.5 kg (9.9 lb.), ensuring stable support for a wide variety of Hikvision dome camera models.
-
Easy Mounting – Designed for secure installation on flat wall or ceiling surfaces, with pre-drilled mounting holes.
What’s Included
- BRA-1280ZJ-DM18-BLACK Junction Box
- Bottom waterproof cover
- Side gland nut
- Mounting screws & fasteners
DOWNLOADS
Extra Info
Clean Cable Concealment
The BRA-1280ZJ-DM18-BLACK provides internal space to house power and data cables securely, reducing clutter and protecting connections from tampering or exposure.
Outdoor Reliability
Designed with both indoor and outdoor applications in mind, the included waterproofing accessories make this junction box capable of handling weather exposure when sealed properly.
Compact and Versatile
With its low-profile design and 111 mm base diameter, this junction box fits in tight spaces while maintaining strength and mounting flexibility.
Modern Aesthetics with Rugged Protection
The matte black finish makes it an ideal pairing for dark camera housings and modern architecture. It also protects the cabling from weather and vandalism.
Tech Specs
| Specification |
Details |
| Model |
BRA-1280ZJ-DM18-BLACK |
| Description |
Junction Box for Dome Cameras |
| Material |
Aluminum Alloy with surface spray treatment |
| Color |
Black |
| Dimensions |
141.7 mm × 37 mm × Ø111 mm (5.58" × 1.46" × Ø4.37") |
| Weight |
Approx. 1490 g (3.28 lb.) |
| Cable Outlets |
Side and Bottom |
| Max Load |
4.5 kg (9.9 lb.) |
| Mount Type |
Wall / Ceiling Mount (flat surface required) |
| Environmental Use |
Indoor / Outdoor (with proper sealing) |
| Camera Compatibility |
Select Hikvision dome cameras |
Q&A
Q: Is this junction box suitable for outdoor use?
A: Yes, when properly sealed using the included waterproof accessories, it performs well in outdoor environments.
Q: What material is the box made from?
A: It’s built from high-grade aluminum alloy with a corrosion-resistant surface treatment.
Q: What is the load capacity of this junction box?
A: It supports up to 4.5 kg (9.9 lb.), making it suitable for most Hikvision dome cameras.
Q: Does this model support both side and bottom cable routing?
A: Yes, it includes both a bottom outlet (with waterproof cover) and a side outlet (with gland nut) for flexible installation.
Q: Are all installation accessories included?
A: Yes, it comes with the necessary screws, waterproof components, and mounting hardware for secure setup.
