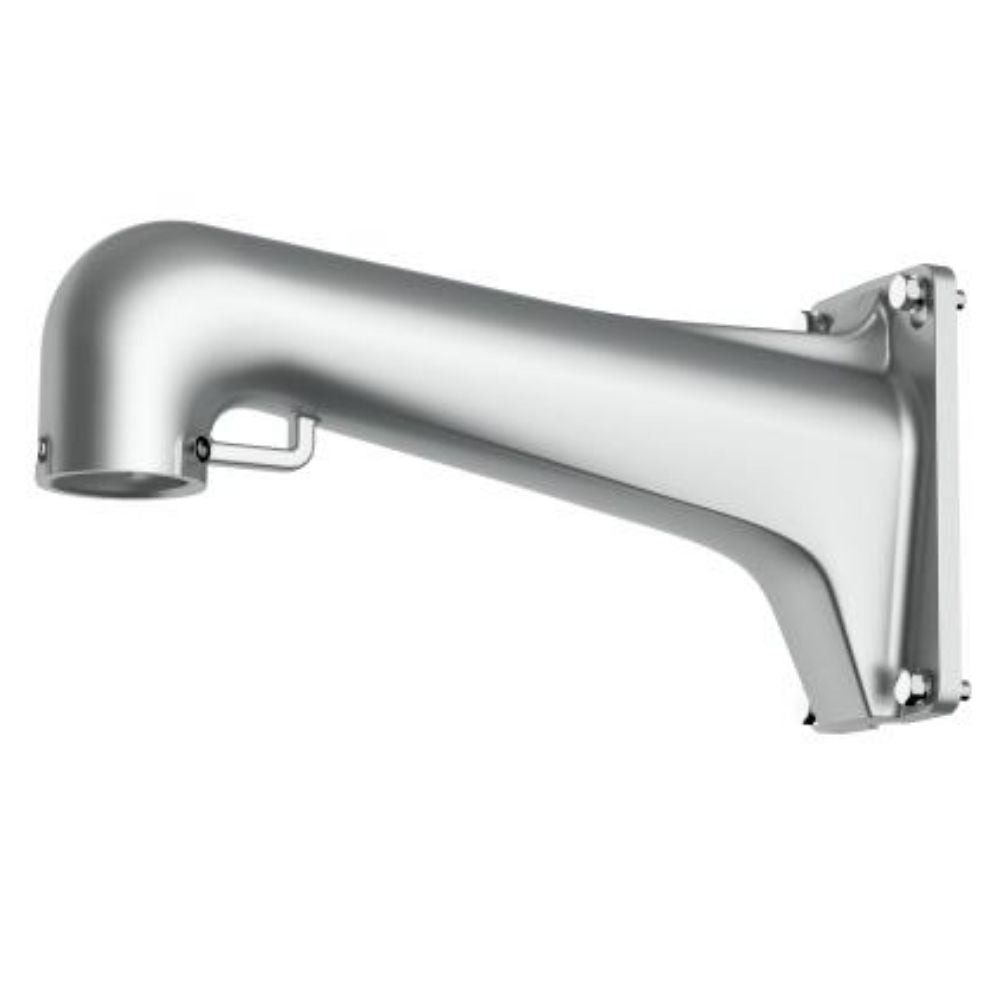

The Hikvision DS-1603ZJ-P is a durable wall mount bracket designed specifically for Hikvision PanoVu series cameras. Built from aluminum alloy with a corrosion-resistant surface spray treatment, it offers reliable support and a professional installation finish. With a waterproof design and integrated hook for a safety rope, it ensures both ease of installation and long-term durability for indoor or outdoor applications.
Key Features
-
Strong Build – Aluminum alloy construction with surface spray treatment for corrosion resistance.
-
Easy Installation – Integrated safety rope hook for secure mounting.
-
Weatherproof Design – Supports outdoor installations with waterproof rubber seal.
-
High Load Capacity – Supports cameras and accessories up to 20 kg (44 lbs).
-
Professional Finish – Platinum gray color for a clean, discreet appearance.
Downloads
Perfect For:
- Mounting Hikvision PanoVu cameras on flat walls
- Outdoor or indoor surveillance installations
- Commercial and industrial building exteriors
- Parking lots, warehouses, and large perimeter sites
Installer Tips
-
Surface Requirement: Mount only on flat, stable walls.
-
Weight Support: Ensure the wall can support at least 3× the combined weight of the camera and mount.
-
Waterproofing: Always use waterproof rubber seals for outdoor applications.
-
Load Capacity: Do not exceed 20 kg (44 lbs) total load.
Quick-Read Specs
| Specification |
Detail |
| Model |
DS-1603ZJ-P |
| Type |
Wall Mount for PanoVu |
| Material |
Aluminum alloy |
| Appearance |
Platinum Gray |
| Dimensions |
364.1 × 182.0 × 160 mm (14.3" × 7.2" × 6.3") |
| Weight |
1,400 g (3.09 lb) |
| Load Capacity |
Up to 20 kg (44 lbs) |
| Installation |
Flat wall surface |
| Protection |
Waterproof design |
| Application |
Indoor / Outdoor |
Extra Info
Durable Construction
The DS-1603ZJ-P is made from aluminum alloy with a sprayed surface finish, ensuring long-lasting resistance to weather and corrosion.
Secure Installation
The integrated safety rope hook helps installers safely handle heavy cameras during mounting, minimizing installation risks.
Weather-Ready Design
When installed with waterproof rubber seals, the bracket is suitable for outdoor use, protecting against water ingress.
High Load Capacity
With a maximum load capacity of 20 kg, it supports Hikvision PanoVu cameras and accessories with ease.
Q&A
Q1: What cameras is this mount compatible with?
It is designed for Hikvision PanoVu series cameras.
Q2: Is it suitable for outdoor use?
Yes, with waterproof rubber seals, it provides reliable outdoor installation.
Q3: What is the maximum load capacity?
It supports up to 20 kg (44 lbs).
Q4: Can it be mounted on any wall?
It must be mounted on a flat, stable wall that can support at least 3× the total load.
Q5: What material is it made of?
It is constructed from aluminum alloy with a platinum gray finish.
