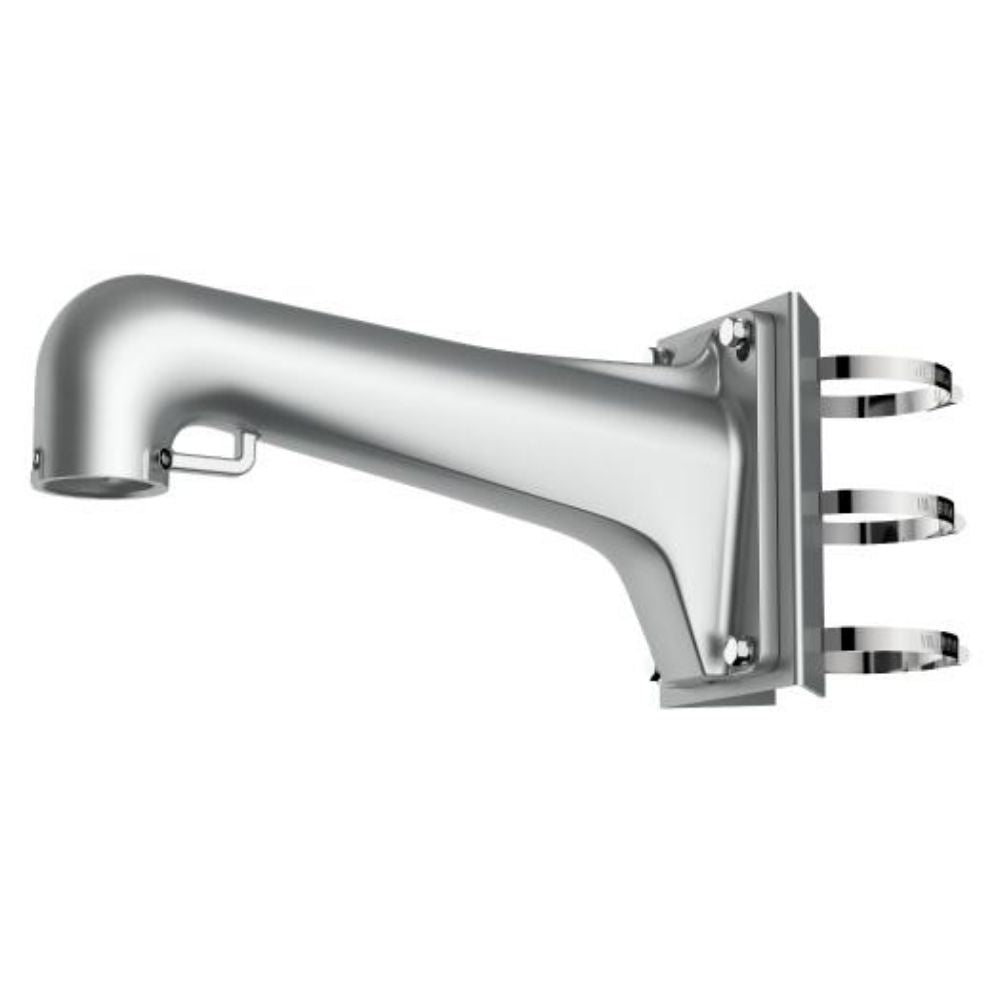

The BRA-1603ZJ-Pole-P is a robust vertical pole mount designed to securely install surveillance cameras on poles in both indoor and outdoor environments. Made from aluminum alloy, steel, and stainless steel with a protective surface spray, it ensures long-term durability in varied weather conditions. With an adjustable diameter from 67 mm to 127 mm and a safety hook to assist installation, this bracket is ideal for large-format camera setups on utility poles or similar structures.
Features
-
Rugged Construction – Built from aluminum alloy, steel, and stainless steel for maximum durability and corrosion resistance.
-
Safety Hook Design – Integrated hook for safety rope enhances safety during camera installation.
-
Wide Pole Compatibility – Adjustable clamping diameter from 67 mm to 127 mm (2.64" to 5") supports various pole sizes.
-
Versatile Use – Suitable for both indoor and outdoor installations in industrial, commercial, and municipal environments.
-
High Load Capacity – Supports up to 20 kg (44 lb.), making it ideal for heavy or large surveillance cameras.
What's Included
- BRA-1603ZJ-Pole-P Vertical Pole Mount
- Mounting straps and accessories
- Quick Start guide
DOWNLOADS
Extra Info
Durable Weatherproof Build
Crafted from premium aluminum alloy, steel, and stainless steel, this bracket is coated with a corrosion-resistant finish, making it highly suitable for long-term outdoor use in harsh weather conditions.
Versatile Pole Mounting
Designed to fit pole diameters ranging from 67 mm to 127 mm, it offers excellent flexibility for a variety of installation sites—whether in remote fields or busy urban areas.
Strong & Stable Camera Support
Engineered to handle up to 20 kg of weight, this bracket ensures solid, low-vibration mounting—crucial for stable video capture, especially in windy or high-traffic environments.
Installer-Safe Construction
Features a built-in safety rope hook, allowing installers to secure the bracket during mounting and reduce the risk of equipment damage or injury.
Broad Camera Compatibility
Suitable for various camera types including turret, bullet, and box models—both fixed and PTZ—making it an adaptable solution for a wide range of surveillance needs.
Tech Specs
| Category |
Specification |
| Model |
BRA-1603ZJ-Pole-P |
| Mount Type |
Vertical Pole Mount |
| Color |
Platinum Gray |
| Material |
Aluminum Alloy, Steel, Stainless Steel |
| Dimensions |
410.6 mm × 194 mm × 126.1 mm (16.17" × 7.64" × 4.96") |
| Pole Diameter |
Adjustable from 67 mm to 127 mm (2.64" to 5") |
| Weight |
2450 g (5.4 lb.) |
| Load Capacity |
Up to 20 kg (44 lb.) |
Q&A
Q: Is this mount suitable for outdoor use?
A: Yes, the BRA-1603ZJ-Pole-P is treated for corrosion resistance and supports outdoor installations.
Q: Can this be used with PTZ cameras?
A: Yes, as long as the camera weight does not exceed 20 kg, it is compatible.
Q: How do I know if my pole fits this mount?
A: The mount supports poles with a diameter between 67 mm and 127 mm (2.64"–5").
Q: Are straps included with the mount?
A: Yes, mounting straps and accessories are included for secure installation.
