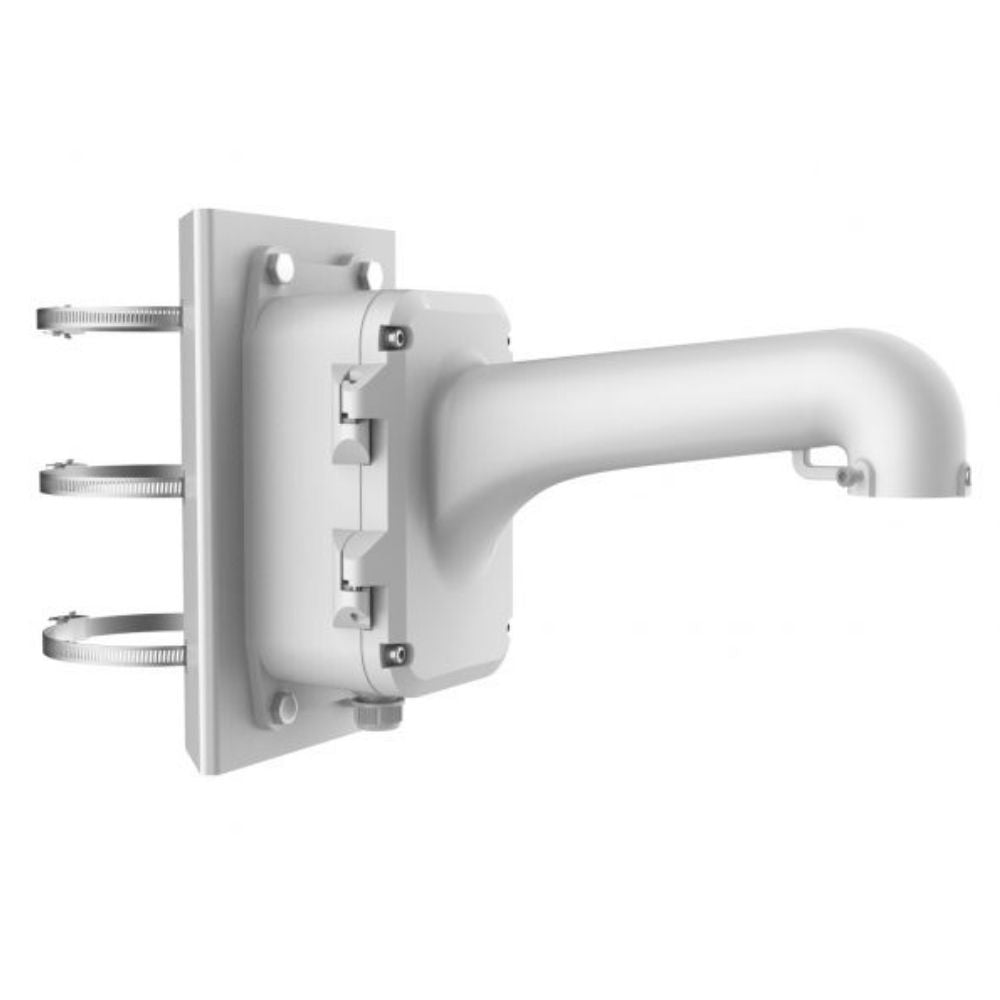

The BRA-1604ZJ-BOX-POLE is a professional-grade vertical pole mount designed specifically for speed dome cameras. Featuring an integrated junction box, dual cable outlets (bottom and back), and space to house a power adapter (AC 24V, 3A). Made of aluminum alloy and steel with corrosion-resistant surface spray treatment, it’s engineered for both indoor and outdoor use where structured, high-load mounting is essential.
Features
-
Built-In Junction Box – Comes with an integrated junction box for organized cable management and adapter storage.
-
Durable Construction – Made from aluminum alloy and steel with a corrosion-resistant coating for long-term outdoor exposure.
-
Wide Pole Compatibility – Adjustable mounting straps fit pole diameters from 100 mm to 200 mm (3.94" to 7.87").
-
Adapter Housing – Designed to accommodate a power adapter (AC 24V, 3A) securely inside the junction box.
-
Flexible Cable Routing – Offers both bottom and back outlets for versatile wiring options.
-
Installer Safety Support – Built-in safety hook for securing the speed dome during installation.
What's Included:
- BRA-1604ZJ-BOX-POLE Mount
- Integrated junction box
- Mounting straps and accessories
- Quick Start Guide
DOWNLOADS
Key Info
Pole Mount + Junction Box Combo
This dual-purpose bracket combines a sturdy pole mount with a built-in junction box, keeping cables, adapters, and connectors neatly concealed and shielded. The integrated design ensures better protection from weather, tampering, and accidental damage.
Wider Mounting Range
Accommodates pole diameters ranging from 100 mm to 200 mm, providing a versatile fit for a broad range of installation scenarios—from industrial complexes to public infrastructure like street posts and parking areas.
Speed Dome Focused
Engineered specifically to support Hikvision speed dome cameras, this bracket delivers the stability, strength, and spacing required for secure and optimal dome deployment.
Professional Cable Management
Features dual cable entry options—bottom and back—to allow flexible wiring routes that reduce strain, lower exposure risk, and maintain system integrity.
Heavy-Duty Support
With a load capacity of up to 10 kg (22 lb.), this mount provides dependable support for larger and heavier cameras, ensuring long-term performance in demanding environments.
Tech Specs
| Category |
Specification |
| Model |
BRA-1604ZJ-BOX-POLE |
| Mount Type |
Vertical Pole Mount with Junction Box |
| Color |
Hikvision White |
| Material |
Aluminum Alloy and Steel |
| Dimensions |
456.5 mm × 314 mm × 194.9 mm (17.97" × 12.36" × 7.67") |
| Pole Diameter |
Adjustable from 100 mm to 200 mm (3.94" to 7.87") |
| Weight |
5.7 kg (12.57 lb.) |
| Load Capacity |
Up to 10 kg (22 lb.) |
| Cable Outlets |
Bottom and Back |
| Adapter Space |
Fits AC 24V, 3A Power Adapter |
Q&A
Q: Can this mount hold all Hikvision speed domes?
A: It’s compatible with most standard Hikvision speed domes as long as the total weight is under 10 kg (22 lb.).
Q: Does it support cable management?
A: Yes, it has a built-in junction box with both bottom and back cable outlets.
Q: Can I place a power adapter inside?
A: Yes, it is designed to house an AC 24V, 3A power adapter safely within the box.
Q: Is it suitable for outdoor installations?
A: Absolutely, as long as waterproof rubber is used at the cable outlets.
