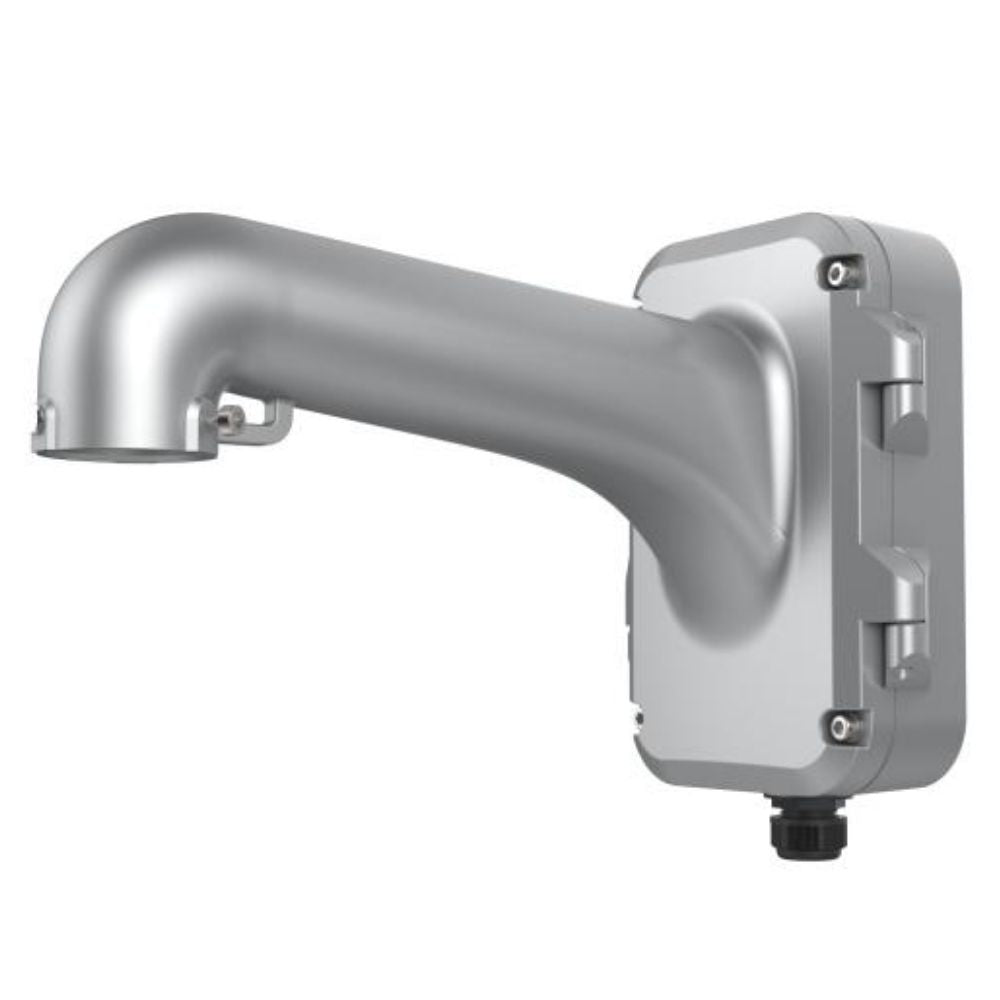

The Hikvision BRA-1604ZJ-P is a robust wall mounting bracket with an integrated junction box, engineered specifically for secure installation of Hikvision speed dome cameras. Constructed from high-strength aluminum alloy and finished with a protective coating, this bracket delivers reliable, weatherproof performance for both indoor and outdoor surveillance setups.
Features
-
Integrated Junction Box – Neatly conceals and protects camera wiring for a streamlined, tamper-resistant installation.
-
Aluminum Alloy Construction – Durable and lightweight with a surface spray treatment to resist corrosion and environmental wear.
-
Weatherproof Design – Designed for outdoor deployment with sealing features to safeguard against moisture and dust.
-
Safety Hook Support – Includes a hook for attaching a safety rope during installation, enhancing safety and ease of mounting.
-
Dual Cable Outlet Options – Features both bottom and back cable exit points to support flexible installation needs.
What’s Included
- BRA-1604ZJ-P Wall Mount Bracket
- Integrated Junction Box
- Mounting Hardware
DOWNLOADS
Extra Info
Optimized for Secure Dome Mounting
The BRA-1604ZJ-P is built to accommodate Hikvision speed domes in a safe and reliable manner. It simplifies installation with a built-in junction box, supports safety rope attachment, and offers flexible cable routing, resulting in a clean and secure setup.
Engineered for Tough Environments
Whether used indoors or outdoors, the bracket’s aluminum alloy body and sprayed finish protect against corrosion and physical impact. Its waterproof design ensures uninterrupted operation even under harsh weather conditions.
Supports Heavy-Duty Equipment
With a maximum load capacity of 10 kg (22 lb.), the bracket is compatible with a wide range of Hikvision speed domes. It should be installed on flat, load-bearing walls capable of supporting 3× the total equipment weight.
Precision Mounting Design
Includes multiple mounting holes (4 × Φ9 mm) and precise dimensioning (355.5 mm × 255.3 mm × 170.7 mm) for reliable wall placement and support. Refer to the datasheet for detailed diagrams and measurements.
Tech Specs
| Specification |
Details |
| Model |
BRA-1604ZJ-P |
| Description |
Wall Mount Bracket with Integrated Junction Box for Speed Domes |
| Material |
Aluminum Alloy with surface spray treatment |
| Color |
Platinum Gray |
| Dimensions |
355.5 mm × 255.3 mm × 170.7 mm (14" × 10" × 6.7") |
| Weight |
Approx. 2150 g (4.7 lb.) |
| Max Load |
10 kg (22 lb.) |
| Mount Type |
Wall Mount |
| Cable Management |
Internal via integrated junction box (bottom and back outlets) |
| Environmental Use |
Indoor / Outdoor |
| Safety Feature |
Hook for safety rope installation |
Q&A
Q: Is the BRA-1604ZJ-P suitable for outdoor use?
A: Yes, it has a weatherproof design and protective coating for outdoor installations.
Q: What is the bracket made of?
A: It's made from high-strength aluminum alloy with a corrosion-resistant spray finish.
Q: What is the load capacity of the mount?
A: It supports up to 10 kg (22 lb.), suitable for most Hikvision speed dome models.
Q: Can cables be hidden inside the bracket?
A: Yes, it includes an internal junction box with bottom and back cable entry options.
Q: Does it include mounting hardware?
A: Yes, mounting screws and fasteners are included for installation.
