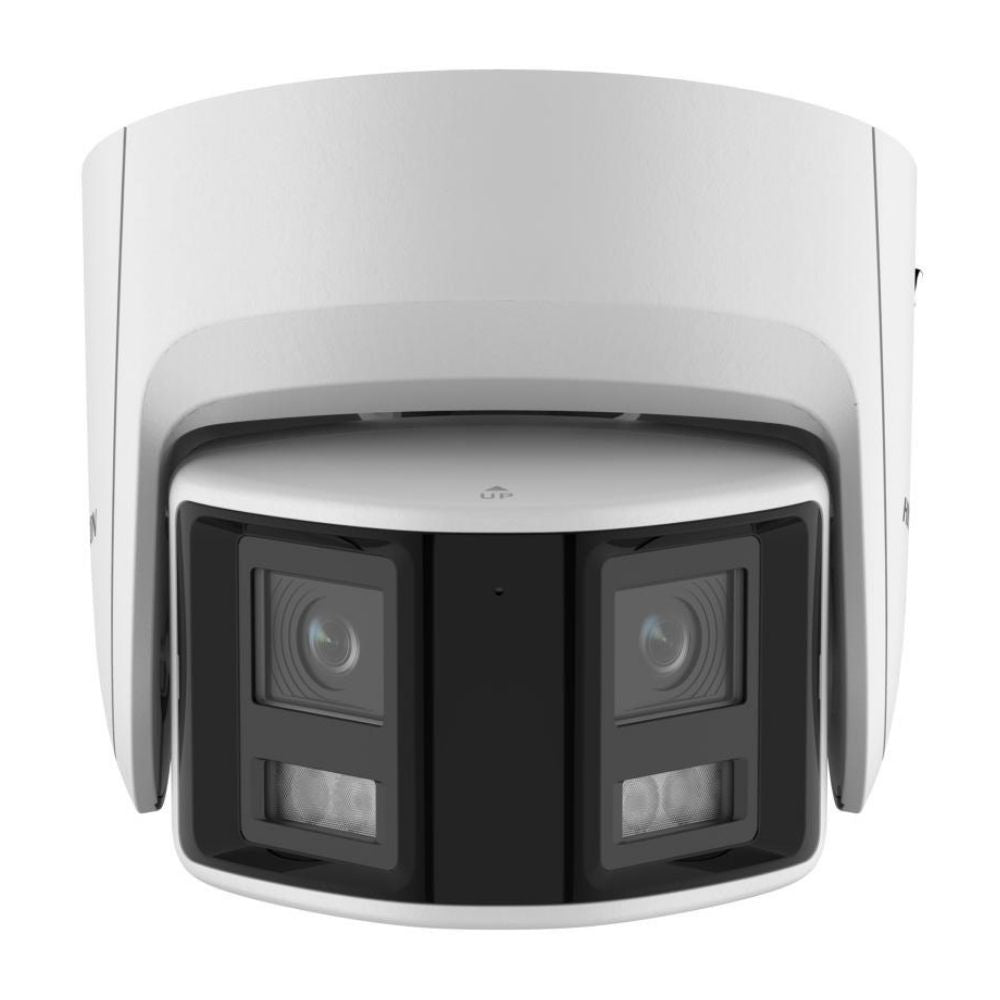

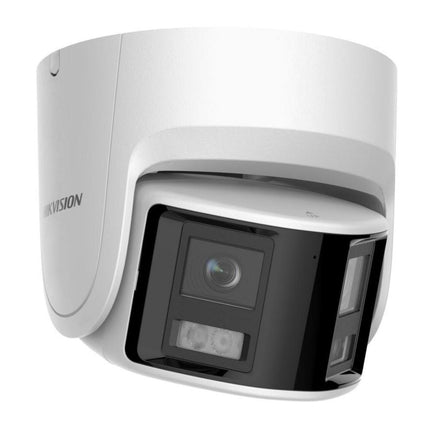

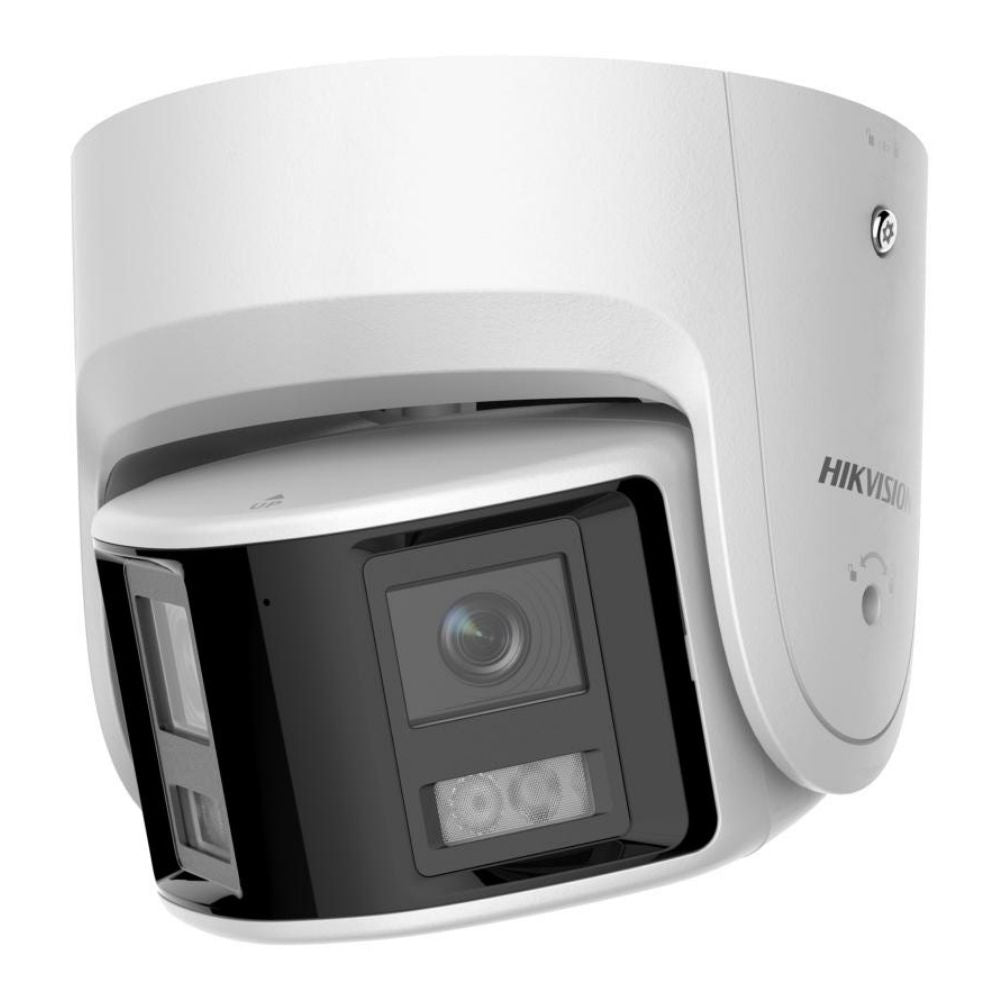

Hikvision DS-2CD2346G2P-ISU/SL 4 MP Panoramic Fixed Turret Network Camera - AcuSense Series with Active Strobe and Two-Way Audio for Enhanced Security

Description

The Hikvision DS-2CD2346G2P-ISU/SL is a 4 MP Panoramic Fixed Turret Network Camera designed for comprehensive surveillance with advanced deep learning capabilities. This camera offers a 180° horizontal field of view, providing expansive coverage from a single unit. Equipped with AcuSense technology, it intelligently distinguishes between human and vehicle targets, significantly reducing false alarms and enhancing security efficiency for both residential and commercial applications.

Features

  • Deep Learning AI: Accurately classifies human and vehicle targets, minimizing false alarms and focusing on genuine threats.
  • Panoramic View: Delivers a full 180° horizontal field of view, capturing wide scenes with a single camera.
  • Superior Low-Light Performance: Powered by DarkFighter technology for excellent imaging in extremely dim conditions.
  • Active Deterrence: Features a built-in strobe light and audio alarm to actively warn off intruders.
  • Two-Way Audio: Enables real-time communication and enhanced security monitoring.
  • Weatherproof Design: IP67 rated for reliable performance in various outdoor environments.
  • Efficient Compression: Utilizes H.265+ to optimize storage and bandwidth without compromising image quality.
  • Wide Dynamic Range: 120 dB true WDR ensures clear images against strong backlighting.

DOWNLOADS

Data Sheet DS-2CD2346G2P-ISU-SL-2.8
Quick Start Guide DS-2CD2346G2P-ISU-SL-2.8 - Quick Start Guide
Installation Guide DS-2CD2346G2P-ISU-SL-2.8 - Installation Guide
User Manual DS-2CD2346G2P-ISU-SL-2.8 - User Manual

Extra Info

This camera leverages Hikvision's cutting-edge AcuSense technology, which goes beyond basic motion detection. By applying deep learning algorithms, the camera can differentiate between humans, vehicles, and other moving objects like animals or falling leaves. This intelligence is crucial for preventing irrelevant alerts and allowing security personnel or homeowners to focus on actual security events.

The panoramic fixed turret design, with its dual 2.8mm lenses, provides a seamless 180-degree panoramic image, effectively replacing the need for multiple cameras to cover a wide area. This makes it an ideal solution for monitoring large open spaces such as parking lots, front yards, or retail floors.

Enhanced Night Vision with DarkFighter
The integrated DarkFighter technology significantly improves image clarity and color reproduction in extremely low-light conditions. This means that even in near darkness, you can expect to see clear, detailed footage, rather than grainy black and white images, which is vital for effective nighttime surveillance and evidence collection.

Active Deterrence Features
Beyond just recording, this camera actively deters potential intruders. When a human or vehicle is detected within a specified area, the camera can trigger a visible strobe light and an audible alarm. This immediate, on-site response can often be enough to make intruders leave before any further action is required, adding an active layer to your security system.

Robust and Reliable Design
Built with an IP67 rating, the camera is protected against dust and water ingress, ensuring reliable operation in harsh weather conditions. Its durable metal construction for both the base and cover means it's designed to withstand outdoor elements, providing long-term performance and peace of mind.

Tech Specs

Specification Details
Camera
Image Sensor 2 × 1/2.5" Progressive Scan CMOS
Max. Resolution 3040 × 1368
Min. Illumination Color: 0.003 Lux @ (F1.6, AGC ON)
B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 30°,
Tilt: -75° to 75°
Lens
Lens Type Fixed focal, dual lens, 2.8 mm
Focal Length & FOV 2.8 mm, horizontal FOV: 180°, vertical FOV: 81°
Lens Mount M12
Iris Type Fixed
Aperture F1.6
DORI
DORI 2.8 mm, D: 37 m, O: 15 m, R: 7 m, I: 3.5 m
Illuminator
Supplement Light Type IR
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Main Stream 50 Hz: 25 fps (3040 × 1368)
60 Hz: 24 fps (3040 × 1368)
Sub-Stream 50 Hz: 25 fps (1200 × 536, 960 × 432)
60 Hz: 24 fps (1200 × 536, 960 × 432)
Video Compression Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Video Bit Rate 32 Kbps to 8 Mbps
H.264 Type Baseline Profile, Main Profile, High Profile
H.265 Type Main Profile
Bit Rate Control CBR, VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed region for main stream
Audio
Audio Type Mono sound
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering Yes
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, Websocket, Websockets
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
User/Host Up to 32 users
3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, host authentication (MAC address)
Network Storage NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR), Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch Yes
Image Settings Saturation, brightness, contrast, sharpness, gain, white balance, adjustable by client software or web browser
Day/Night Switch Day, Night, Auto, Schedule
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask 8 rectangular privacy masks
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone Yes
Built-in Speaker Max. power consumption: 1.2 W, max. sound pressure level: 10 cm: 95 dB
Audio 1 input (line in), terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium
1 output (line out), terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm 1 input, 1 output (max. 24 VDC, 1 A)
Reset Key Yes
Event
Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)), alarm input and output, flashing alarm light output, audible alarm output, exception
Smart Event Scene change detection
Linkage Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording, trigger capture, audible warning, white light flashing
Deep Learning Function
Perimeter Protection Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle)
General
Power 12 VDC ± 25%, 0.88 A, max. 10.5 W, Ø 5.5 mm coaxial power plug
PoE: IEEE 802.3af, Class 3, 36 V to 57 V, 0.35 A to 0.22 A, max. 12.5 W
Material Base: metal, cover: metal
Dimension Ø 140 mm × 145.6 mm (Ø 5.5" × 5.7")
Package Dimension 230 mm × 230 mm × 230 mm (9" × 9" × 9")
Weight Approx. 940 g (2.1 lb.)
With Package Weight Approx. 1700 g (3.7 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function Anti-banding, heartbeat, flash log, pixel counter
Flashing Light Yes
Approval
EMC FCC: 47 CFR Part 15, Subpart B
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
RCM: AS/NZS CISPR 32: 2015
IC: ICES-003: Issue 7
Safety UL: UL 62368-1
CB: IEC 62368-1: 2014+A11
CE-LVD: EN 62368-1: 2014/A11: 2017
Environment CE-RoHS: 2011/65/EU
WEEE: 2012/19/EU
Reach: Regulation (EC) No 1907/2006
Protection IP67: IEC 60529-2013
Anti-corrosion Performance
Protection Level No specific protection
Available Model
Model DS-2CD2346G2P-ISU/SL(2.8mm)(C)
Accessories
Optional DS-1273ZJ-140 Wall mount
DS-1273ZJ-140B Wall mount
DS-1271ZJ-140 Pendant Mount


Q&A

Q: What is AcuSense technology?
A: AcuSense technology uses deep learning algorithms to distinguish between human and vehicle targets and other moving objects, significantly reducing false alarms and improving the accuracy of motion detection.

Q: Can this camera record audio?
A: Yes, the camera has a built-in microphone for mono sound and supports two-way audio, allowing for real-time communication.

Q: What is the field of view for this camera?
A: This camera offers a 180° horizontal field of view and an 81° vertical field of view with its 2.8 mm dual lenses.

Q: Is this camera suitable for outdoor use?
A: Yes, it has an IP67 rating, making it water and dust resistant and suitable for various outdoor conditions.

Q: Does this camera have night vision?
A: Yes, it features IR supplement light with a range of up to 30 meters and is powered by DarkFighter technology for excellent low-light performance.

Q: What is the purpose of the flashing light and audio alarm?
A: The active strobe light and audio alarm are designed to warn off intruders upon detection, acting as an immediate deterrent.

Q: What kind of power does this camera use?
A: It can be powered by 12 VDC or Power over Ethernet (PoE) IEEE 802.3af, Class 3.

Q: What is the maximum storage capacity for the on-board memory card?
A: The built-in memory card slot supports microSD/microSDHC/microSDXC cards up to 512 GB.
