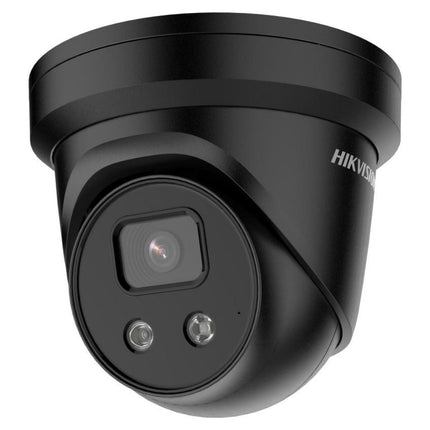

Hikvision DS-2CD2366G2-I(U) 6 Megapixel AcuSense DarkFighter Fixed Turret Network Camera with Human and Vehicle Classification for Enhanced Security

Description

The DS-2CD2366G2-I(U) is a powerful 6 MP AcuSense turret network camera designed to deliver high-quality imaging and intelligent human and vehicle target classification. Featuring Hikvision's AcuSense technology, this camera significantly enhances alarm efficiency by focusing on relevant events, reducing false alarms. Its DarkFighter technology ensures excellent low-light performance, making it ideal for 24/7 surveillance in various settings, from homes to small businesses, providing reliable and accurate security monitoring.

Features

  • Deep Learning AI: Accurately distinguishes between humans and vehicles, drastically reducing false alarms and focusing on true security threats.
  • Superior Low-Light Performance: Powered by DarkFighter technology, this camera captures clear, detailed images even in extremely dim lighting conditions.
  • Efficient H.265+ Compression: Maximizes storage and bandwidth efficiency without compromising on video quality.
  • Exceptional Clarity: 120 dB true WDR technology ensures clear imaging against strong backlighting, revealing details in both bright and dark areas.
  • Built-in Microphone (-U model): Provides real-time audio security, adding another layer of surveillance capability.
  • Weatherproof Design: IP67-rated for water and dust resistance, ensuring reliable operation in harsh outdoor environments.
  • Versatile Lens Options: Available with 2.8 mm, 4 mm, or 6 mm fixed focal lenses to suit various field of view requirements.
  • High Resolution: Delivers crisp 6 MP resolution for detailed monitoring and playback.

DOWNLOADS

Data Sheet DS-2CD2366G2-I(U)
Quick Start Guide DS-2CD2366G2-I(U) - Quick Start Guide
User Manual DS-2CD2366G2-I(U) - User Manual

Extra Info

AcuSense Technology
Hikvision AcuSense technology leverages advanced deep learning algorithms to differentiate between human and vehicle targets and other moving objects. This intelligent classification significantly reduces the number of false alarms triggered by irrelevant events such as animals, rain, or falling leaves, allowing users to focus on genuine security concerns. This translates to more efficient monitoring and reduced review times for recorded footage.

Powered-by-DarkFighter Technology
The Powered-by-DarkFighter technology is engineered for exceptional low-light performance. It utilizes a larger aperture and advanced sensor design to capture more light, producing vibrant and clear color images in environments where conventional cameras would switch to black and white or struggle to produce usable footage. This is crucial for maintaining detailed surveillance around the clock.

Efficient Compression and Clarity
The camera employs H.265+ compression, an optimized video encoding technology that drastically reduces bandwidth usage and storage requirements without sacrificing image quality. Combined with 120 dB True WDR (Wide Dynamic Range), the camera can handle challenging lighting conditions, such as entrances with bright outdoor light and dark indoor areas, by balancing exposure to ensure all critical details are visible.

Durable and Adaptable
With an IP67 ingress protection rating, the camera is fully protected against dust and can withstand immersion in water, making it suitable for both indoor and outdoor installations in various weather conditions. The turret design allows for flexible angle adjustment, ensuring optimal coverage for any given scene.

Tech Specs

Specification Details
Camera
Image Sensor 1/2.4" Progressive Scan CMOS
Max. Resolution 3200 × 1800
Min. Illumination Color: 0.003 Lux @ (F1.6, AGC ON)
B/W: 0 Lux with IR
Shutter Time 1/3 s to 1/100,000 s
Day & Night IR cut filter
Angle Adjustment Pan: 0° to 360°
Tilt: 0° to 75°
Rotate: 0° to 360°
Lens
Lens Type Fixed focal lens, 2.8, 4, and 6 mm optional
Focal Length & FOV 2.8 mm: HFOV 105°, VFOV 55°, DFOV 127°
4 mm: HFOV 78°, VFOV 38°, DFOV 96°
6 mm: HFOV 51°, VFOV 26°, DFOV 59°
Lens Mount M12
Iris Type Fixed
Aperture F1.6
DORI
2.8 mm D: 76 m, O: 30 m, R: 15 m, I: 7 m
4 mm D: 115 m, O: 45 m, R: 23 m, I: 11 m
6 mm D: 164 m, O: 65 m, R: 32 m, I: 16 m
Illuminator
Supplement Light Type IR
Supplement Light Range Up to 30 m
Smart Supplement Light Yes
IR Wavelength 850 nm
Video
Main Stream 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream 50 Hz: 25 fps (1280 × 720, 640 × 480, 640 × 360)
60 Hz: 30 fps (1280 × 720, 640 × 480, 640 × 360)
Third Stream 50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264
Video Bit Rate 32 Kbps to 16 Mbps
H.264 Type Baseline Profile, Main Profile, High Profile
H.265 Type Main Profile
Bit Rate Control CBR, VBR
Scalable Video Coding (SVC) H.264 and H.265 encoding
Region of Interest (ROI) 1 fixed region(s) for main stream and sub-stream
Audio (-U Model)
Audio Type Mono sound
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC
Audio Bit Rate 64 Kbps (G.711)
16 Kbps (G.722.1/G.726)
32 to 192 Kbps (MP2L2)
8 to 320 Kbps (MP3)
16 to 64 Kbps (AAC-LC)
Audio Sampling Rate 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Environment Noise Filtering Yes
Network
Protocols TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP,
IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP, WebSocket,
WebSockets, SRTP, SFTP
Simultaneous Live View Up to 6 channels
API Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
User/Host Up to 32 users
3 user levels: administrator, operator, and user
Security Password protection, complicated password, HTTPS encryption, 802.1X authentication
(EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest
authentication for HTTP/HTTPS, WSSE and digest authentication for Open Network
Video Interface, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS
1.1/1.2/1.3, host authentication (MAC address)
Network Storage NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR)
Support for memory card encryption and health detection with Hikvision memory card.
Client iVMS-4200, Hik-Connect, Hik-Central
Web Browser Plug-in required: IE 10, IE 11
Plug-in free: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+
Image Parameters Switch Yes
Image Settings Rotate mode, saturation, brightness, contrast, sharpness, gain, white balance,
adjustable by client software or web browser
Day/Night Switch Day, Night, Auto, Schedule
Wide Dynamic Range (WDR) 120 dB
SNR ≥ 52 dB
Image Enhancement BLC, HLC, 3D DNR
Privacy Mask 4 programmable polygon privacy masks
Interface
Ethernet Interface 1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board Storage Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Built-in Microphone -U: Yes
Reset Key Yes
Event
Basic Event Motion detection (human and vehicle)
Video tampering alarm, Exception
Smart Event Line crossing detection, Intrusion detection, Region entrance detection,
Region exiting detection (human and vehicle)
Scene change detection
Linkage Upload to FTP/NAS/memory card, Notify surveillance center, Send email,
Trigger recording, Trigger capture
Deep Learning Function
Face Capture Yes
General
Power 12 VDC ± 25%, 0.45 A, max. 5.4 W, Ø 5.5 mm coaxial power plug, reverse polarity protection
PoE: IEEE 802.3af, Class 3, max. 6.5 W
Material Metal except for trim ring
Dimension Ø 138.3 mm × 111.4 mm (Ø 5.4" × 4.4")
Package Dimension 170 mm × 170 mm × 150 mm (6.7" × 6.7" × 5.9")
Weight Approx. 740 g (1.6 lb.)
With Package Weight Approx. 1070 g (2.4 lb.)
Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F)
Humidity 95% or less (non-condensing)
Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F)
Humidity 95% or less (non-condensing)
Language 33 languages including English, Russian, German, French, Spanish, etc.
General Function Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-flicker
Approval
EMC CE-EMC, RCM, KC
Safety UL, CB, CE-LVD
Environment CE-RoHS, WEEE, Reach
Protection IP67: IEC 60529-2013
Anti-corrosion Performance No specific protection

Q&A

Q: What is the maximum resolution of this camera?
A: The maximum resolution is 3200 × 1800 (6 MP).

Q: Does this camera have a built-in microphone?
A: Yes, the DS-2CD2366G2-IU model includes a built-in microphone for real-time audio security.

Q: What is the low-light performance of this camera?
A: It has excellent low-light performance with Powered-by-DarkFighter technology, achieving color imaging down to 0.003 Lux @ (F1.6, AGC ON) and 0 Lux with IR.

Q: Can this camera differentiate between humans and vehicles?
A: Yes, it features Hikvision AcuSense technology, which uses deep learning to classify human and vehicle targets.

Q: What is the maximum IR range?
A: The supplement light (IR) range is up to 30 meters.

Q: What are the available lens options for this model?
A: Fixed focal lens options include 2.8 mm, 4 mm, and 6 mm.

Q: Is this camera suitable for outdoor use?
A: Yes, it is IP67 rated for water and dust resistance, making it suitable for outdoor installation.

Q: What power options does this camera support?
A: It supports 12 VDC ± 25% and PoE (IEEE 802.3af, Class 3).

Q: What client software can be used with this camera?
A: It can be used with iVMS-4200, Hik-Connect, and Hik-Central.

Q: Does this camera support on-board storage?
A: Yes, it has a built-in memory card slot supporting microSD/microSDHC/microSDXC cards up to 512 GB.

Read more

Product form

Hikvision DS-2CD2366G2-I(U) 6 Megapixel AcuSense DarkFighter Fixed Turret Network Camera with Human and Vehicle Classification for Enhanced Security

SKU: DS-2CD2366G2-IU-BLK Datasheet

🟢 IN STOCK— Delivery in 1–3 days.

$296.00 $257.00 Incl. GST
