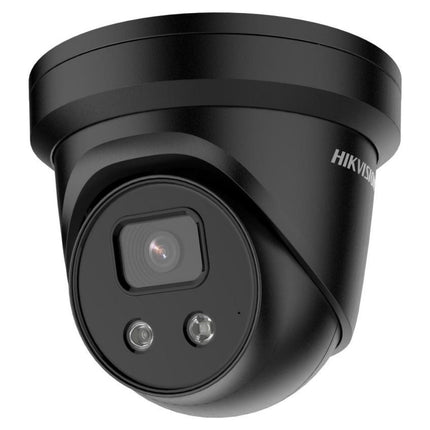

The Hikvision DS-2CD2386G2-ISU/SL combines advanced imaging, powerful AI-based detection, and active deterrence features in a compact turret design. Built with 4K ultra-high resolution, DarkFighter low-light technology, and AcuSense deep learning algorithms, it delivers reliable, real-time security in a wide range of environments. The camera’s built-in strobe light, audio alarm, and two-way audio add an extra layer of deterrence, while its IP66-rated housing ensures durability in harsh conditions.
Features
-
4K Ultra HD Imaging – Crisp, high-quality video with 8 MP resolution.
-
DarkFighter Technology – Exceptional low-light performance for night-time clarity.
-
120 dB True WDR – Clear imaging even in challenging backlight situations.
-
AcuSense AI Detection – Reduces false alarms by focusing on human and vehicle targets.
-
Active Deterrence – Strobe light and audio warnings to ward off intruders.
-
Built-in Two-Way Audio – Real-time communication through integrated mic and speaker.
-
Rugged IP66 Design – Dust and water-resistant for reliable outdoor use.
-
Efficient Compression – H.265+ technology saves bandwidth and storage.
Downloads
Extra Info
Smarter Detection, Fewer False Alarms
AcuSense technology uses deep learning to distinguish between humans, vehicles, and irrelevant motion—helping operators respond quickly while reducing wasted time reviewing footage.
Always Ready, Day or Night
With DarkFighter low-light performance, powerful IR up to 30 m, and smart supplemental lighting, you get reliable surveillance around the clock.
Active Defense
Integrated strobe light and loudspeaker offer visible and audible warnings to intruders, providing a strong deterrent before incidents escalate.
Easy Installation, Flexible Angles
With 3-axis adjustment (Pan: 0°–360°, Tilt: 0°–75°, Rotate: 0°–360°), the DS-2CD2386G2-ISU/SL adapts to different mounting positions and coverage needs.
Tech Specs
| Category |
Specification |
| Camera |
|
| Image Sensor |
1/1.8" Progressive Scan CMOS |
| Min. Illumination |
Color: 0.003 Lux @ (F1.6, AGC ON) |
| Shutter Speed |
1/3 s to 1/100,000 s (Slow Shutter Supported) |
| WDR |
120 dB True WDR |
| Day/Night |
ICR Cut Filter |
| Angle Adjustment |
Pan: 0°–360°, Tilt: 0°–75°, Rotate: 0°–360° |
| Lens Options |
|
| 2.8 mm |
H: 102°, V: 55°, D: 120° |
| 4 mm |
H: 87°, V: 47°, D: 102° |
| 6 mm |
H: 51°, V: 28°, D: 60° |
| Aperture |
F1.6 |
| Lens Mount |
M16 |
| Illumination |
|
| IR Range |
Up to 30 m |
| Wavelength |
850 nm |
| Smart Supplement Light |
Yes |
| Visual Alarm |
Yes |
| Video |
|
| Max. Resolution |
3840 × 2160 |
| Frame Rate |
50Hz: Up to 20 fps @ 8 MP60Hz: Up to 20 fps @ 8 MP |
| Compression |
H.265+/H.264+/H.265/H.264/MJPEG |
| Bit Rate |
32 Kbps to 16 Mbps |
| ROI |
1 fixed region per stream |
| Audio |
|
| Two-Way Audio |
Built-in mic and speaker |
| Compression |
G.711u, G.711a, G.722.1, G.726, MP2L2, PCM, MP3 |
| Network |
|
| Protocols |
ONVIF, ISAPI, SDK, TCP/IP, HTTP, HTTPS, RTSP, FTP, NTP, SMTP, IPv6, etc. |
| Simultaneous Live View |
Up to 6 channels |
| Security |
HTTPS encryption, IP filtering, TLS 1.2, security audit log |
| Storage |
|
| Local |
microSD/SDHC/SDXC up to 256 GB |
| Network |
NAS (NFS, SMB/CIFS), ANR support |
| Intelligent Functions |
|
| Deep Learning |
Human/vehicle classification, face capture |
| Perimeter Protection |
Line crossing, intrusion, region entrance/exit |
| General |
|
| Operating Temp |
-30 °C to 60 °C (-22 °F to 140 °F) |
| Power Supply |
12 VDC ± 25% / PoE (802.3af, Class 3) |
| Power Consumption |
Max. 9 W (DC) / 10 W (PoE) |
| Material |
Metal (except trim ring) |
| Dimensions |
Ø 138.3 × 124.5 mm |
| Weight |
~800 g |
Q&A
Q: Is the DS-2CD2386G2-ISU/SL weatherproof?
A: Yes, it’s IP66-rated for dust and water resistance, making it suitable for outdoor installation.
Q: Does this camera work well at night?
A: Yes, with DarkFighter technology and IR range up to 30 m, it delivers excellent night performance.
Q: Can it talk back to visitors or intruders?
A: Yes, it has built-in two-way audio with a microphone and speaker for real-time communication.
Q: Will it trigger only on humans and vehicles?
A: Yes, AcuSense AI detection helps filter out false alarms from irrelevant motion.
Q: Can I store footage without an NVR?
A: Absolutely. It supports microSD cards up to 256 GB and NAS recording.
Q: Is this camera compatible with third-party systems?
A: Yes, it supports ONVIF and other standard protocols for integration.
