| Model |
DS-2CD2387G2H-LISU/SL |
| Title |
8 MP Smart Hybrid Light with ColorVu Fixed Turret Network Camera |
| Resolution |
8 MP |
| Smart Hybrid Light |
Advanced technology with long range |
| WDR Technology |
130 dB |
| Compression |
H.265+ |
| Deep Learning Focus |
Human and vehicle classification |
| Two-way Audio |
Built-in |
| Alarm |
Active strobe light and audio alarm |
| On-board Storage |
Up to 512 GB (SD card slot) |
| Interfaces |
Audio and alarm interface available |
| Weather Resistance |
IP67 (Water and dust resistant) |
| Camera |
| Image Sensor |
1/1.8" Progressive Scan CMOS |
| Max. Resolution |
3840 × 2160 |
| Min. Illumination |
Color: 0.0008 Lux @ (F1.0, AGC ON)
0 Lux with light |
| Shutter Time |
1/3 s to 1/100,000 s |
| Day & Night |
IR cut filter |
| Angle Adjustment |
Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360° |
| Lens |
| Lens Type |
Fixed focal lens, 2.8 and 4 mm optional |
Focal Length & FOV
(2.8 mm) |
Horizontal FOV 108.8°
Vertical FOV 56.4°
Diagonal FOV 134.3° |
Focal Length & FOV
(4 mm) |
Horizontal FOV 93.3°
Vertical FOV 47.2°
Diagonal FOV 114.2° |
| Lens Mount |
M16 |
| Iris Type |
Fixed |
| Aperture |
F1.0 |
Depth of Field
(2.8 mm) |
3.3 m to ∞ |
Depth of Field
(4 mm) |
3.8 m to ∞ |
| DORI |
| DORI (2.8 mm) |
D: 89 m, O: 35 m, R: 17 m, I: 8 m |
| DORI (4 mm) |
D: 109 m, O: 43 m, R: 21 m, I: 10 m |
| Illuminator |
| Supplement Light Type |
IR, White Light |
| Supplement Light Range |
Up to 30 m |
| Smart Supplement Light |
Yes |
| IR Wavelength |
850 nm |
| Video |
| Main Stream (50 Hz) |
25 fps (3840 × 2160, 3200 × 1800,
2688 × 1520, 1920 × 1080, 1280 × 720) |
| Main Stream (60 Hz) |
24 fps (3840 × 2160)
30 fps (3200 × 1800, 2688 × 1520,
1920 × 1080, 1280 × 720) |
| Sub-Stream (50 Hz) |
25 fps (1280 × 720, 640 × 480, 640 × 360) |
| Sub-Stream (60 Hz) |
30 fps (1280 × 720, 640 × 480, 640 × 360) |
| Third Stream (50 Hz) |
10 fps (1920 × 1080, 1280 × 720,
640 × 480, 640 × 360) |
| Third Stream (60 Hz) |
10 fps (1920 × 1080, 1280 × 720,
640 × 480, 640 × 360) |
| Video Compression |
Main stream: H.265/H.264/H.264+/H.265+
Sub-stream: H.265/H.264/MJPEG
Third stream: H.265/H.264 |
| Video Bit Rate |
32 Kbps to 16 Mbps |
| H.264 Type |
Baseline Profile, Main Profile, High Profile |
| H.265 Type |
Main Profile |
| Bit Rate Control |
CBR, VBR |
| Scalable Video Coding (SVC) |
H.264 and H.265 encoding |
| Region of Interest (ROI) |
1 fixed region for main stream and sub-stream |
| Audio |
| Audio Compression |
G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC |
| Audio Type |
Mono sound |
| Audio Bit Rate |
64 Kbps (G.711ulaw/G.711alaw)
16 Kbps (G.722.1)
16 Kbps (G.726)
32 to 192 Kbps (MP2L2)
8 to 320 Kbps (MP3)
16 to 64 Kbps (AAC-LC) |
| Audio Sampling Rate |
8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz |
| Environment Noise Filtering |
Yes |
| Network |
| Protocols |
TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP,
RTSP, RTCP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4,
IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket,
WebSockets, SRTP, SFTP |
| Simultaneous Live View |
Up to 6 channels |
| API |
Open Network Video Interface (Profile S, Profile G, Profile T),
ISAPI, SDK, ISUP |
| User/Host |
Up to 32 users
3 user levels: administrator, operator, and user |
| Security |
Password protection, complicated password, HTTPS encryption,
802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5),
watermark, IP address filter, basic and digest authentication for
HTTP/HTTPS, WSSE and digest authentication for Open Network
Video Interface, RTP/RTSP over HTTPS, control timeout settings,
security audit log, TLS 1.1/1.2/1.3, host authentication (MAC address) |
| Network Storage |
NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR) |
| Client |
iVMS-4200, Hik-Connect |
| Web Browser |
Plug-in required live view: IE 10, IE 11
Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Edge 89+
Local service: Chrome 57.0+, Firefox 52.0+, Edge 89+ |
| Image |
| Image Parameters Switch |
Yes |
| Image Settings |
Rotate mode, saturation, brightness, contrast, sharpness, gain,
white balance, adjustable by client software or web browser |
| Day/Night Switch |
Day, Night, Auto, Schedule |
| Image Enhancement |
BLC, HLC, 3D DNR, Defog |
| SNR |
≥ 52 dB |
| Wide Dynamic Range (WDR) |
130 dB |
| Privacy Mask |
4 programmable polygon privacy masks |
| Interface |
| Ethernet Interface |
1 RJ45 10 M/100 M self-adaptive Ethernet port |
| On-Board Storage |
Built-in memory card slot, support microSD/microSDHC/microSDXC card,
up to 512 GB |
| Built-in Microphone |
Yes, 1 built-in microphone |
| Built-in Speaker |
Max. power consumption: 1.2 W
Max. sound pressure level: 10 cm: 95 dB |
| Audio Interface |
1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp,
input impedance: 4.7 KΩ, interface type: non-equilibrium
1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp,
output impedance: 100 Ω, interface type: non-equilibrium |
| Alarm Interface |
1 input, 1 output (max. 24 VDC/24 VAC, 1 A) |
| Reset Key |
Yes |
| Event |
| Basic Event |
Motion detection (support alarm triggering by specified target types
(human and vehicle)), video tampering alarm, exception |
| Smart Event |
Scene change detection |
| Linkage |
Upload to FTP/NAS/memory card, notify surveillance center, send email,
trigger alarm output, trigger recording, trigger capture, audible warning,
strobe light |
| Deep Learning Function |
| Face Capture |
Yes |
| Perimeter Protection |
Line crossing, intrusion, region entrance, region exiting
Support alarm triggering by specified target types (human and vehicle) |
| General |
| Power |
12 VDC ± 25%, 0.75 A, max. 9 W, Ø 5.5 mm coaxial power plug,
reverse polarity protection
PoE: IEEE 802.3af, Class 3, max. 10.5 W |
| Material |
Cover: metal, Main body: metal |
| Dimension |
Ø 138.3 mm × 115.4 mm (Ø 5.4" × 4.5") |
| Package Dimension |
170 mm × 170 mm × 160 mm (6.7" × 6.7" × 6.3") |
| Weight |
Approx. 820 g (1.8 lb.) |
| With Package Weight |
Approx. 1316 g (2.9 lb.) |
| Storage Conditions |
-30 °C to 60 °C (-22 °F to 140 °F).
Humidity 95% or less (non-condensing) |
| Startup and Operating Conditions |
-30 °C to 60 °C (-22 °F to 140 °F).
Humidity 95% or less (non-condensing) |
| General Function |
Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding |
| Language |
33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek,
German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese,
Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian,
Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai,
Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian |
| Approval |
| EMC |
CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014,
EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021
RCM: AS/NZS CISPR 32: 2015
IC: ICES-003: Issue 7
KC: KN32: 2015, KN35: 2015 |
| Safety |
UL: UL 62368-1
CB: IEC 62368-1: 2014+A11
CE-LVD: EN 62368-1: 2014/A11: 2017 |
| Environment |
CE-RoHS: 2011/65/EU |
| Protection |
IP67: IEC 60529-2013 |
| Typical Application |
| Anti-corrosion Performance |
No specific protection
(Equipped for use in areas where no specific anti-corrosion protection is needed) |
| Available Models |
| Models |
DS-2CD2387G2H-LISU/SL(2.8mm)
DS-2CD2387G2H-LISU/SL(4mm)

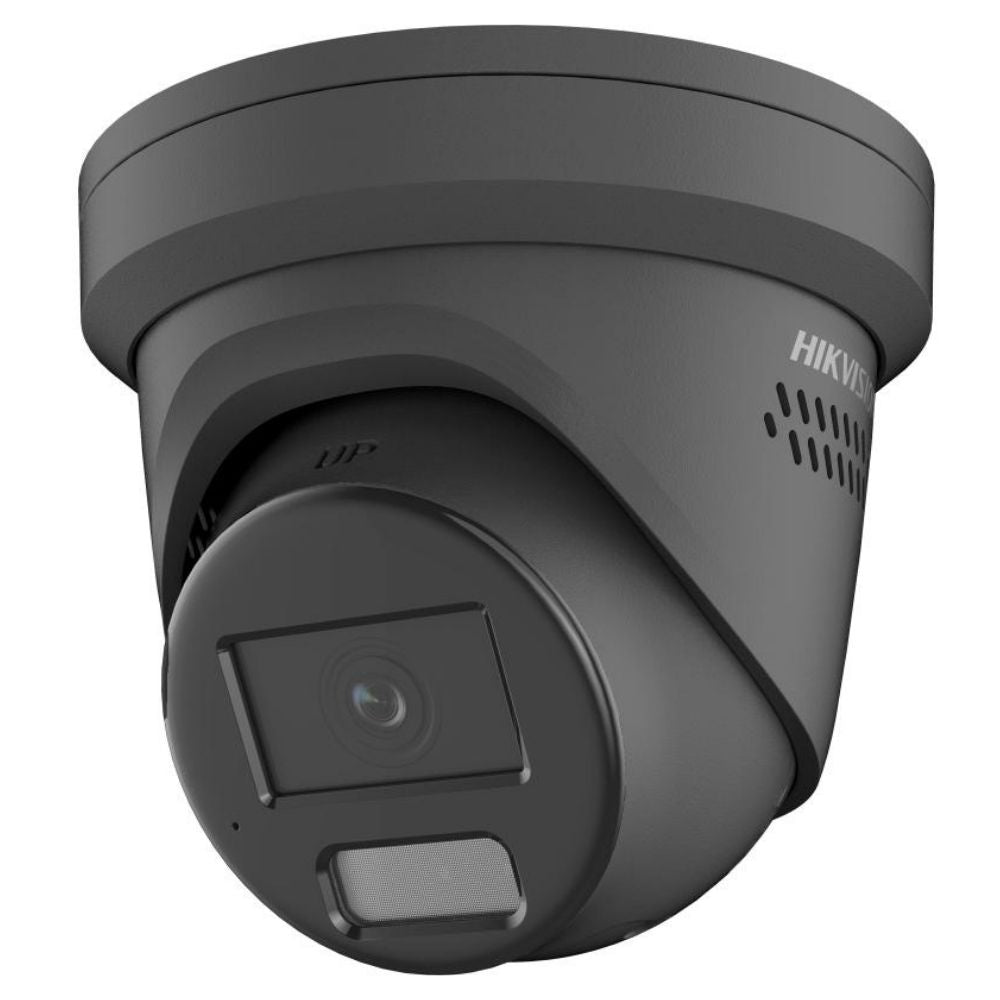

DS-2CD2387G2H-LISU/SL(2.8mm)/Black |
| Optional Accessories |
| Wall Mount |
DS-1273ZJ-140
DS-1273ZJ-140B
DS-2200ZJ-WA140
DS-2200ZJ-WAJ-140 |
| Pendant Mount |
DS-1271ZJ-140
DS-2210ZJ-WA-140 |
| Vertical Pole Mount |
DS-1275ZJ-SUS |
| Corner Mount |
DS-1276ZJ-SUS |
| Junction Box |
DS-1280ZJ-PT6
DS-2280ZJ-WA140 |
