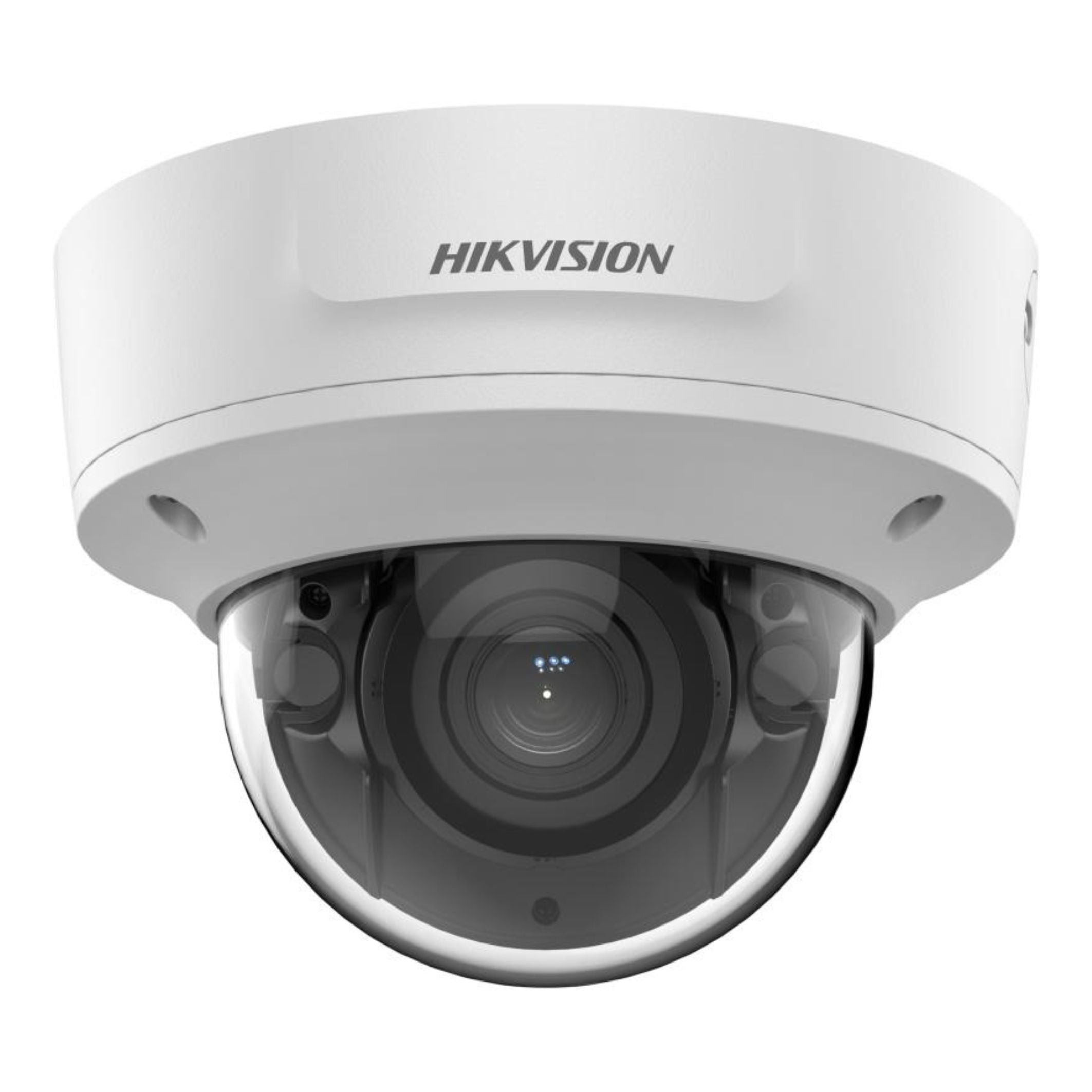

The Hikvision DS-2CD2786G2T-IZS is an 8 MP AcuSense Varifocal Dome Network Camera designed for superior security. It leverages deep learning algorithms to accurately classify human and vehicle targets, significantly reducing false alarms. With its motorized varifocal lens, installation and monitoring are streamlined, making it ideal for both residential and commercial applications requiring precise surveillance and intelligent threat detection, even in challenging lighting conditions.
Features
-
Deep Learning AI: Advanced human and vehicle target classification for highly accurate alerts and reduced false alarms.
-
Superior Night Vision: Powered-by-DarkFighter technology ensures exceptional low-light performance with clear imaging down to 0.003 Lux and IR illumination up to 40 meters.
-
Motorized Varifocal Lens: Easily adjust the 2.8 to 12 mm lens remotely for flexible viewing angles and simplified installation.
-
Robust & Durable: IP67 weather-resistant and IK10 vandal-proof ratings ensure reliable operation in harsh outdoor environments.
-
Efficient Compression: H.265+ compression technology optimizes storage and bandwidth without compromising video quality.
-
Wide Dynamic Range: 120 dB true WDR technology provides clear images against strong backlight, ensuring no detail is lost.
-
Smart Event Detection: Features like line crossing, intrusion, region entrance/exiting detection, and face capture enhance security monitoring.
-
Flexible Storage: Supports up to 512 GB on-board storage via a micro SD slot, with network storage options (NAS) and ANR.
DOWNLOADS
Perfect For
- Residential Properties
- Business Premises
- Car Parks & Warehouses
- Perimeter Security
Installer Tips
- Use the motorized varifocal lens to remotely adjust angles without needing to physically reposition the camera.
- Ensure PoE (802.3af) switch or injector is used for easier cabling and reliable power delivery.
- Pair with a high-quality microSD card (up to 512 GB) for local storage redundancy.
- For best low-light performance, avoid pointing directly at bright light sources.
- Mount securely on walls or ceilings using vandal-proof fixings for outdoor applications.
Quick-Read Specs
| Specification |
Detail |
| Resolution |
8 MP (3840 × 2160) |
| Lens |
Motorized varifocal 2.8–12 mm |
| Field of View |
Horizontal: 108°–46° |
| Low-Light Performance |
0.003 Lux (Color), 0 Lux with IR |
| IR Range |
Up to 40 m |
| WDR |
120 dB True WDR |
| AI Functions |
Human & vehicle classification, intrusion, line crossing, face capture |
| Compression |
H.265+/H.265/H.264+/H.264 |
| Audio |
1 input / 1 output, noise filtering |
| Storage |
microSD up to 512 GB, NAS, ANR |
| Protection |
IP67 weatherproof, IK10 vandal-proof |
| Power |
12 VDC ± 25% or PoE (802.3af, Class 3) |
| Power Consumption |
Max. 12.5 W |
| Dimensions |
Ø153 × 112 mm |
| Weight |
~860 g |
Extra Info
AcuSense Technology
This camera incorporates Hikvision's AcuSense technology, which utilizes deep learning algorithms to distinguish between humans and vehicles and other moving objects. This intelligent classification significantly reduces the number of false alarms triggered by irrelevant movements like animals or changing weather conditions, allowing security personnel to focus on genuine threats. This is especially useful for perimeter protection in homes or businesses.
Powered-by-DarkFighter
The "Powered-by-DarkFighter" designation highlights the camera's exceptional low-light performance. Its 1/1.8" Progressive Scan CMOS sensor and F1.4 aperture enable it to capture high-quality color images in extremely dim conditions, down to 0.003 Lux, before switching to its powerful IR night vision. This ensures continuous, clear surveillance around the clock, even in poorly lit areas.
Motorized Varifocal Lens with DORI
The motorized varifocal lens (2.8 to 12 mm) offers great flexibility. Installers can remotely adjust the focal length to achieve the desired field of view without needing to physically access the camera. The DORI (Detect, Observe, Recognize, Identify) values provided (e.g., Detect human objects up to 86 meters at wide angle) offer practical guidance on the camera's effective range for different surveillance needs.
Advanced Compression and Image Enhancement
The camera supports H.265+ compression, which drastically reduces bandwidth and storage requirements compared to older compression standards, while maintaining excellent video quality. Features like 120 dB true WDR (Wide Dynamic Range), BLC (Backlight Compensation), HLC (Highlight Compensation), and 3D DNR (Digital Noise Reduction) work together to deliver clear, balanced images in challenging lighting conditions, such as entrances with strong backlighting or brightly lit areas at night.
Q&A
Q: What is the maximum resolution of this camera?
A: The maximum resolution is 3840 × 2160 (8 MP).
Q: Does this camera have audio capabilities?
A: Yes, it has 1 audio input and 1 audio output, supporting mono sound with environment noise filtering.
Q: What is the IR range for night vision?
A: The camera's IR range is up to 40 meters.
Q: Is this camera suitable for outdoor use?
A: Yes, it is rated IP67 for water and dust resistance and IK10 for vandal proofing, making it suitable for outdoor use.
Q: What kind of power supply does it use?
A: It can be powered by 12 VDC ± 25% or PoE (802.3af, Class 3).
Q: Does it support on-board storage?
A: Yes, it has a built-in micro SD slot that supports up to 512 GB.
Q: Can it classify human and vehicle targets?
A: Yes, it is equipped with deep learning functions for human and vehicle targets classification in motion detection and perimeter protection events.
