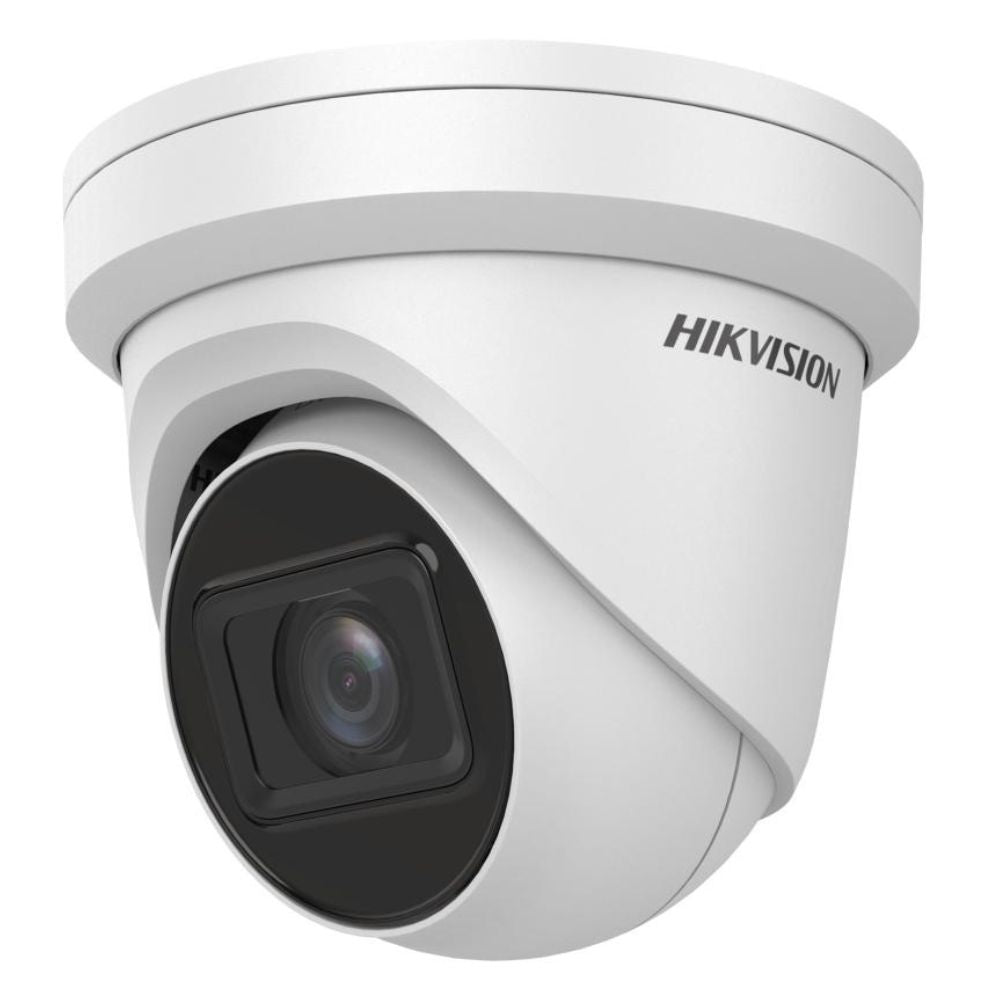

The Hikvision DS-2CD2H86G2T-IZS is a high-performance 8MP AcuSense turret camera designed for professional surveillance. With DarkFighter technology, a motorized varifocal lens, and AI-driven target classification, it delivers crystal-clear video and intelligent alerts in challenging lighting. Its rugged build and advanced features make it a top choice for businesses and critical infrastructure.
Key Features
-
Ultra HD Imaging – 8MP resolution for sharp and detailed video.
-
Powered-by-DarkFighter – Superior low-light performance for 24/7 monitoring.
-
Motorized Varifocal Lens (2.8–12 mm) – Easy remote zoom and focus adjustment.
-
AcuSense Technology – Human and vehicle classification reduces false alarms.
-
120 dB True WDR – Clear imaging even against strong backlight.
-
Built-in Audio & Alarm Interface – Supports microphone, speaker, and alarm integration.
-
IR Night Vision up to 40m – Smart IR for balanced illumination.
-
Rugged Design – IP67 weatherproof and IK10 vandal-resistant housing.
-
Efficient Compression – H.265+ reduces bandwidth and storage use.
Downloads
Perfect For:
- Retail shops & malls
- Office buildings & warehouses
- Parking lots & entrances
- Industrial sites & factories
- Schools & government facilities
Installer Tips
-
Lens Setup: Use the motorized varifocal (2.8–12mm) to fine-tune FOV without manual adjustment.
-
Best Mounting Height: 2.5–5m for wide coverage and optimal detail.
-
PoE Advantage: Simplify cabling with PoE (IEEE 802.3af).
-
Lighting: For areas with poor lighting, rely on DarkFighter + IR up to 40m.
-
Integration: Pair with Hikvision NVRs to unlock full AcuSense AI and remote monitoring.
Quick-Read Specs
| Specification |
Detail |
| Resolution |
8MP (3840 × 2160) |
| Lens |
Motorized varifocal 2.8–12mm |
| Field of View |
108°–46° (Horizontal), 58°–26° (Vertical) |
| Night Vision |
IR up to 40m |
| WDR |
120 dB True WDR |
| Compression |
H.265+/H.265/H.264+/H.264 |
| Audio |
Input & Output, noise filtering |
| Alarm I/O |
1 input, 1 output |
| Storage |
microSD/SDHC/SDXC up to 512GB |
| Protection |
IP67 weatherproof, IK10 vandal-proof |
| Power |
12V DC ±25% / PoE (802.3af), Max. 12.5W |
| Weight |
Approx. 850 g (1.9 lb) |
| Operating Temperature |
-30°C to 60°C (-22°F to 140°F) |
Extra Info
AcuSense Technology
Powered by advanced deep learning algorithms, AcuSense enables the camera to accurately identify and classify human and vehicle targets. This dramatically reduces false alarms caused by irrelevant motion such as rain, swaying branches, moving shadows, or animals. Security teams can focus on real threats, improving response times and overall efficiency.
DarkFighter Low-Light Imaging
Equipped with Hikvision’s DarkFighter technology, the camera delivers superior performance in challenging lighting. Even in ultra-low light environments where standard cameras struggle, it provides sharp, detailed color images and switches to clear black-and-white when necessary. This ensures dependable monitoring around the clock without compromising detail.
Motorized Varifocal Lens
The integrated motorized varifocal lens (2.8 mm to 12 mm) offers exceptional flexibility. Operators can remotely adjust the field of view—whether it’s a wide-angle shot for general area coverage or a narrow telephoto view for capturing facial details or license plates. This adaptability makes it ideal for diverse monitoring scenarios without physically accessing the camera.
Built-In Audio & Alarms
With audio input/output support, the camera enables real-time two-way communication—useful for challenging intruders, guiding visitors, or issuing warnings. Integrated alarm I/O also allows the camera to be connected with external sirens, strobes, or access control devices, making it a proactive security tool rather than just a passive recorder.
Rugged Design
Built to withstand demanding environments, the camera features an IP67-rated housing that ensures complete protection against dust and heavy rain. Its IK10-rated vandal-resistant dome safeguards against tampering or impact, making it a reliable choice for both indoor and outdoor installations in areas prone to physical damage or harsh weather.
Q&A
Q1: Can it zoom remotely?
Yes. The motorized varifocal lens (2.8–12mm) allows remote zoom and focus.
Q2: Does it have audio?
Yes. It supports both audio input and output with noise filtering.
Q3: Is it suitable for outdoor use?
Yes. It’s IP67-rated weatherproof and IK10 vandal-resistant.
Q4: What is the IR range?
It provides smart IR night vision up to 40m.
Q5: Can it integrate alarms?
Yes. It has 1 alarm input and 1 alarm output for sensors and sirens.
Q6: What storage options are available?
Supports microSD/SDHC/SDXC cards up to 512GB, as well as NVR and NAS storage.
