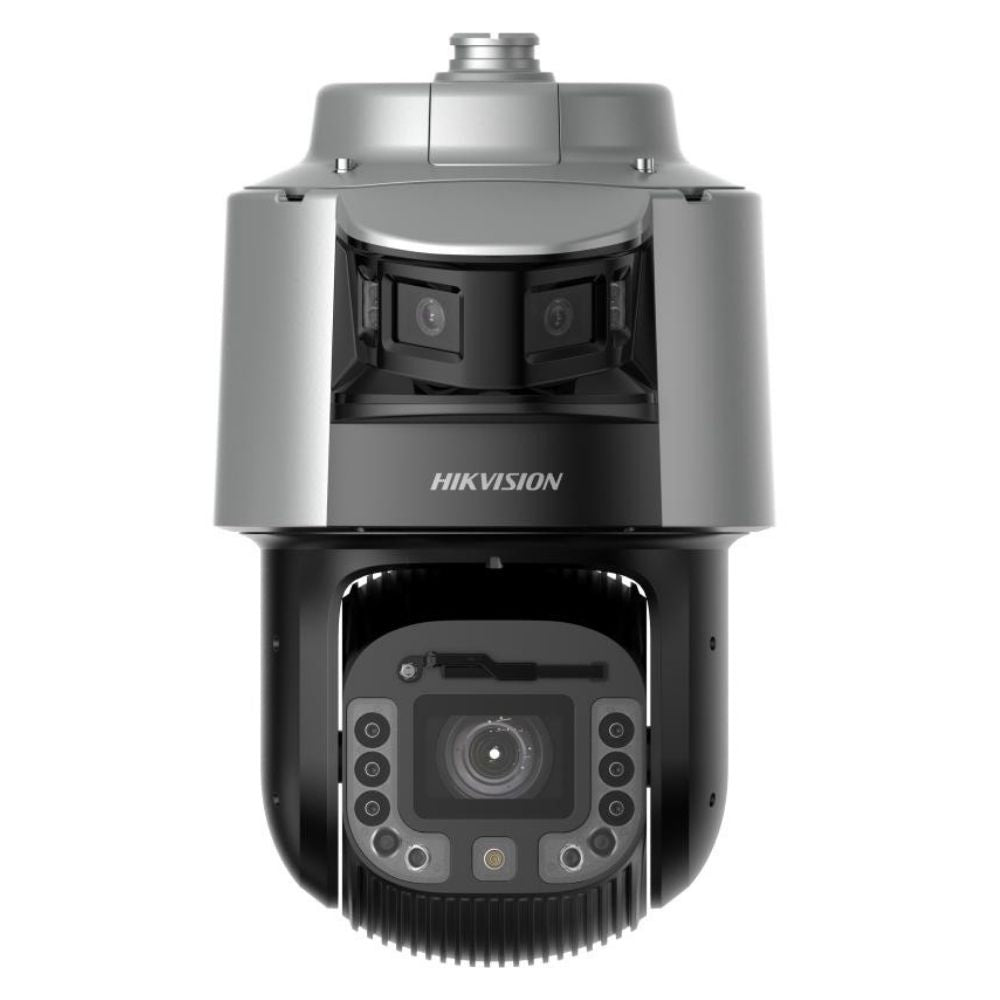

The Hikvision DS-2SF8C442MXG-ELW/26 TandemVu PTZ Camera is an advanced security solution designed for comprehensive surveillance. This camera excels at capturing both wide-area overviews and intricate details simultaneously, making it ideal for monitoring large outdoor spaces, commercial properties, or expansive residential areas. With its powerful optical zoom and exceptional low-light performance, you can maintain clear visibility around the clock, ensuring no critical events are missed.
Features
-
TandemVu Technology: Captures both a wide panoramic view and detailed PTZ (Pan-Tilt-Zoom) footage simultaneously, providing comprehensive coverage without blind spots.
-
High-Quality Imaging: Offers a 6 MP resolution for the panoramic channel and 4 MP for the PTZ channel, ensuring sharp and clear video evidence.
-
DarkFighter Technology: Provides 24/7 colorful imaging and excellent performance in extremely low-light conditions, crucial for nighttime surveillance.
-
Powerful Zoom: Features a 42x optical zoom and 16x digital zoom, allowing for detailed inspection of distant objects or persons.
-
Extensive Night View: Equipped with up to 30 meters of white light distance for color imaging and 300 meters of IR distance for traditional black and white night vision.
-
Deep Learning Functions: Supports advanced AI capabilities for intelligent detection and analysis, enhancing security and reducing false alarms.
-
Robust Design: Built with IP67 weather resistance and IK10 vandal resistance, ensuring reliable operation in harsh outdoor environments.
-
Optical Defog: Improves image clarity in foggy or hazy conditions, ensuring consistent video quality.
-
EIS (Electronic Image Stabilization): Built-in gyroscope to enhance image stability, especially useful in windy conditions or when mounted on unstable surfaces.
DOWNLOADS
Perfect For
- Airports, seaports & transport hubs
- Industrial sites & energy facilities
- City surveillance & large perimeters
- Parking lots & public squares
Installer Tips
-
Power: Requires 36 VDC ±25%, max. 60 W (heater & lights included).
-
Mounting: Wall or pole mounting with Hikvision brackets recommended.
-
Low-Light Setup: Use panoramic ColorVu (F1.0) for color, PTZ IR for long-range B/W.
-
AI Configuration: Enable perimeter protection + smart tracking for automated response.
-
Maintenance: Built-in wiper + demist reduce manual cleaning needs.
Quick-Read Specs
| Specification |
Details |
| Resolution |
Panoramic: 3632 × 1632 |
| Sensor |
1/1.8" CMOS (both channels) |
| Min. Illumination |
Panoramic: 0.0005 Lux (F1.0) |
| Lens |
Panoramic: 2.8 mm |
| Field of View |
Panoramic: 190° H |
| IR Range |
PTZ: up to 300m |
| White Light |
Panoramic: up to 30m |
| PTZ Range |
Pan: 360° endless |
| Presets |
300 |
| Compression |
H.265+/H.265/H.264+/H.264/MJPEG |
| WDR |
120 dB (both channels) |
| Storage |
MicroSD up to 256 GB, NAS, ANR |
| Protection |
IP67, IK10, TVS 6000V surge |
| Power |
36 VDC ±25% |
| Operating Temp |
-40°C to 70°C |
| Weight |
~10.5 kg |
Extra Info
Dual Lens Advantage
This camera leverages its unique TandemVu design with two independent image sensors. One sensor provides a wide, panoramic overview, while the other is a PTZ camera capable of panning, tilting, and zooming. This combination allows you to monitor a vast area without losing the ability to zoom in on specific points of interest for detailed examination, all from a single device. This is particularly useful for large perimeters, parking lots, or public squares where both situational awareness and close-up identification are critical.
Advanced Low-Light Performance
Hikvision's DarkFighter technology integrated into this camera ensures superior image quality even in challenging low-light scenarios. The panoramic channel features an F1.0 aperture, allowing more light to reach the sensor, resulting in vivid color images even at night. The PTZ channel, with its F1.3 aperture and powerful IR illuminators, delivers clear black and white video up to 300 meters, ensuring comprehensive night surveillance.
Intelligent Analytics and Protection
The camera integrates deep learning functions for enhanced security. This includes perimeter protection capabilities on both panoramic and PTZ channels, allowing for accurate detection of line crossing, intrusion, region entrance, and region exiting. Furthermore, the PTZ channel supports simultaneous detection and capture of human bodies and faces, which can be invaluable for forensic analysis and real-time alerts. These intelligent features minimize false alarms and improve the efficiency of your security monitoring.
Built for Durability: Designed for outdoor installation, the DS-2SF8C442MXG-ELW/26 boasts an IP67 rating for water and dust resistance, making it suitable for exposure to various weather conditions. Its IK10 vandal-resistant housing provides robust protection against physical impacts, ensuring the camera remains operational even in high-risk areas.
Q&A
Q: What is TandemVu technology?
A: TandemVu technology combines a fixed panoramic camera with a PTZ (Pan-Tilt-Zoom) camera into a single unit. This allows for simultaneous wide-area monitoring and detailed close-up surveillance, providing comprehensive coverage without gaps.
Q: What is the maximum optical zoom?
A: The PTZ channel of this camera offers a powerful 42x optical zoom, allowing you to magnify distant objects without compromising image quality.
Q: Can this camera see in color at night?
A: Yes, the panoramic channel utilizes DarkFighter technology and an F1.0 aperture, enabling 24/7 colorful imaging even in extremely low-light conditions up to 30 meters. The PTZ channel provides IR night vision up to 300 meters.
Q: Is this camera suitable for outdoor use?
A: Absolutely. This camera has an IP67 rating for water and dust resistance and an IK10 rating for vandal resistance, making it highly durable and suitable for harsh outdoor environments.
Q: What kind of smart features does it have?
A: It supports deep learning functions including perimeter protection (line crossing, intrusion, region entrance/exiting detection) on both channels. The PTZ channel also features multi-target type detection for simultaneous capture of human bodies and faces.
Q: What is the DORI distance?
A: DORI stands for Detect, Observe, Recognize, Identify. For the PTZ channel (telephoto), the DORI distances are approximately: Detect at 2965.5m, Observe at 1176.8m, Recognize at 593.1m, and Identify at 296.6m. For the panoramic channel, these distances are shorter, ranging from Detect at 77.0m to Identify at 7.7m.
