Thermal and Optical Bi-spectrum Technology

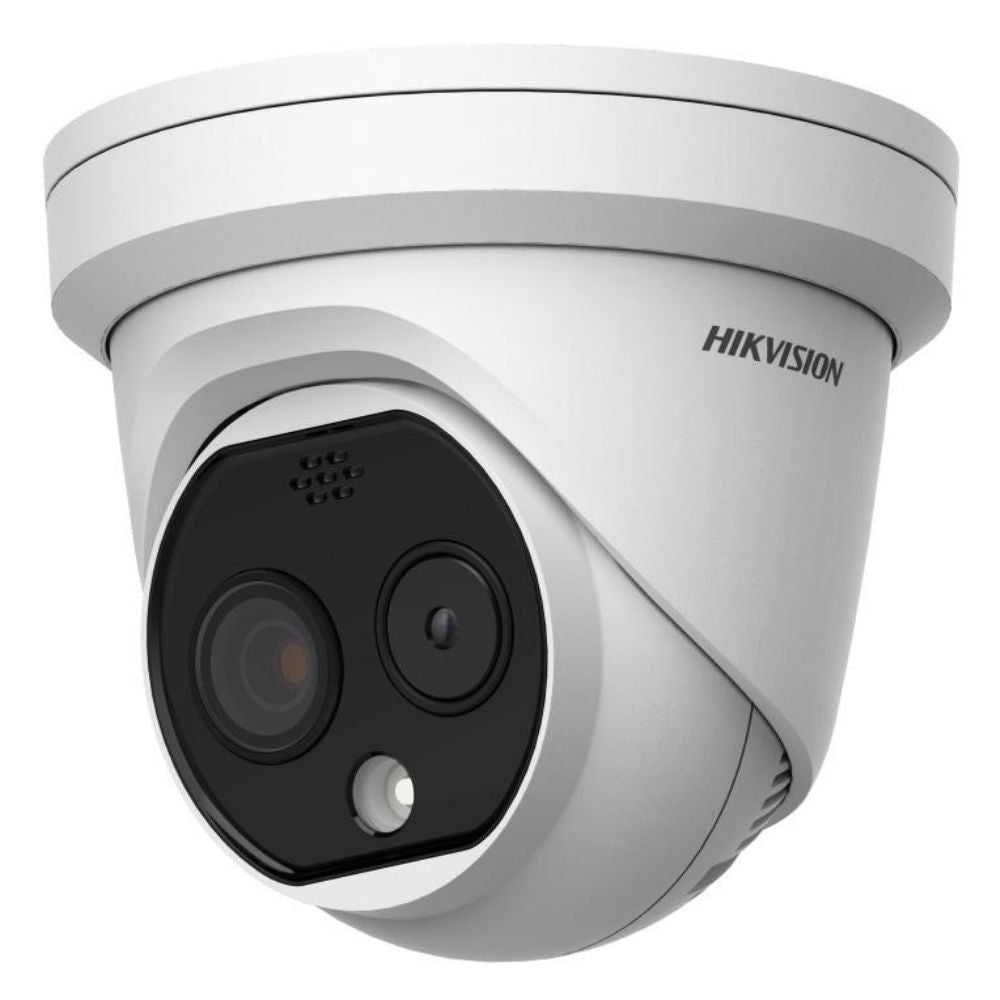

This camera integrates two powerful sensors: a thermal module and an optical module. The thermal sensor detects heat signatures, allowing for clear visibility in total darkness, fog, or smoke, and is crucial for accurate temperature measurement and fire detection. The optical sensor provides traditional high-resolution color video, offering detailed visual information for identification and general surveillance. This combination ensures comprehensive coverage and robust security, day and night.
Smart Detection and Prevention
Beyond basic motion detection, the DS-2TD1228-7/QA features advanced Video Content Analysis (VCA). It can accurately classify targets as either human or vehicle, significantly reducing nuisance alarms from irrelevant movements. The camera's temperature measurement capabilities are precise, enabling it to trigger alarms if temperatures exceed predefined thresholds, which is invaluable for preventing fires in sensitive areas like warehouses or manufacturing workshops. It even supports specialized algorithms for smoking detection and includes a sun-reflection filter to maintain image quality.
Versatile Application
Designed for flexibility, this camera is suitable for a diverse range of environments. From monitoring private residences and community areas to securing parking lots, construction sites, and critical industrial facilities, its comprehensive features make it an ideal choice. The ability to detect temperature anomalies and classify targets makes it particularly effective for loss prevention and safety monitoring in complex settings.
Tech Specs
| Thermal Module |
|
| Image Sensor |
Vanadium Oxide Uncooled Focal Plane Arrays |
| Resolution |
256 × 192 |
| Pixel Pitch |
12 μm |
| Spectral Range |
8 μm to 14 μm |
| NETD |
<40 mK (25°C, F1.1) |
| Focal Length |
6.9mm |
| IFOV |
1.74 mrad |
| Field of View |
24.9° × 18.7° (H × V) |
| Min. Focusing Distance |
1.3m |
| Aperture |
F1.0 |
| Digital Zoom |
×2, ×4 |
| Optical Module |
|
| Image Sensor |
1/2.7" Progressive Scan CMOS |
| Resolution |
2688 × 1520 |
| Min. Illumination |
0.0089Lux @(F1.6,AGC ON),
0 Lux with IR |
| Shutter Speed |
1 s to 1/100,000 s |
| Focal Length |
6.4 mm |
| Field of View |
53.0°(H) x28.0°(V) |
| Aperture (Range) |
F1.6 |
| WDR |
120 dB |
| Image Effect |
|
| Target Coloration |
Yes. Supported in white hot and black hot mode. |
| Illuminator |
|
| IR Distance |
Up to 15 m |
| IR Intensity and Angle |
Automatically adjusted |
| Audible and Visual Alarm |
|
| White Light Range |
Up to 30 m |
| Visual Alarm |
Yes. White light alarm with adjustable flashing frequencies |
| Audio Alarm |
Yes, for two types of audible alarm (VCA and Temperature Exception)
2 preset voice alerts (one for each)
6 importable user-defined voice alerts (6 options shared in the two types) |
| Smart Function |
|
| VCA |
4 VCA rule types (line crossing, intrusion, region entrance, and region exiting),
up to 8 VCA rules in total. |
| Temperature Measurement |
3 temperature measurement rule types, 21 rules in total (10 points, 10 areas, and 1 line) |
| Temperature Range |
-20°C to 150°C (-4°F to 302°F) |
| Temperature Accuracy |
± 8°C (±14.4°F) |
| General Function |
Fire detection, smoking detection, sun-reflection filter |
| Video and Audio |
|
| Main Stream Thermal |
25 fps (1280 × 720, 704 × 576, 640 × 512, 320 × 240) |
| Main Stream Optical (50 Hz) |
25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Main Stream Optical (60 Hz) |
30 fps (2688 × 1520, 1920 × 1080, 1280 × 720) |
| Sub-stream Thermal |
25 fps (704 × 576, 640 × 512, 320 × 240) |
| Sub-stream Optical (50 Hz) |
25 fps (704 × 576, 352 × 288) |
| Sub-stream Optical (60 Hz) |
30 fps (704 × 480, 352 × 240) |
| Video Compression Main Stream |
H.265/H.264 |
| Video Compression Sub-Stream |
H.265/H.264/MJPEG |
| Audio Compression |
G.722.1/G.711ulaw/G.711alaw/MP2L2/G.726/PCM |
| Network |
|
| Protocols |
IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS,
NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP,
PPPoE,TP,Bonjour,SFTP,SRTP,TLS |
| Network Storage |
MicroSD/SDHC/SDXC card (up to 256 G) local storage, NAS (NFS, SMB/CIFS),
Auto Network Replenishment (ANR) |
| API |
ISAPI, HIKVISION SDK,ISUP, and third-party management platform, Open
Network Video Interface,ONVIF (Profile S, Profile G) |
| Simultaneous Live View |
Up to 20 channels |
| User/Host level |
Up to 32 users, 3 levels: Administrator, Operator, User |
| Security |
User authentication (ID and password), MAC address binding, HTTPS
encryption, IEEE 802.1x(EAP-MD5, EAP-TLS), access control, IP address filtering |
| Client |
iVMS-4200, Hik-Connect |
| Web Browser (Live view plug-in allowed) |
Internet Explorer 11 |
| Web Browser (Live view plug-in free) |
Chrome 57.0 +, Firefox 52.0 + |
| Web Browser (Local service) |
Chrome 57.0+, Firefox 52.0 + |
| Interface |
|
| Alarm Input |
1, alarm input (0-5 VDC) |
| Alarm Output |
1, alarm output (alarm response actions configurable) |
| Alarm Action |
SD recording/Relay output/Smart capture/FTP upload/Email linkage |
| Audio Input |
1, 3.5 mm Mic in/Line in interface
Line input: 2 - 2.4 V [p-p], output impedance: 1 KΩ ± 10% |
| Audio Output |
Linear level, impedance: 600 Ω |
| Communication Interface |
1, RJ45 10 M/100 M Self-adaptive Ethernet interface.
1, RS-485 interface (half duplex) |
| General |
|
| Web Client Language |
32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German,
Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian,
Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish,
Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian,
Portuguese (Brazil) |
| Power Supply |
12 VDC ± 25%, φ 5.5 mm coaxial power plug
PoE (802.3af, class 3) |
| Power Consumption (12 VDC) |
0.5 A, Max 6 W |
| Power Consumption (PoE) |
42.5 V to 57 V, 0.14 A to 0.22 A, Max 6.5 W |
| Working Temperature/Humidity |
Temperature: -40°C to 65°C (-40°F to 149°F)
Humidity: 95% or less |
| Protection Level |
IP67 Standard
TVS 6000V lightning protection, surge protection, voltage transient protection |
| Dimensions |
138.3 mm × 138.3 mm × 123.1 mm (5.45" × 5.45" × 4.85") |
| Weight |
940 g (2.07 lb) |
| Range Table |
|
| VCA Range (Vehicles: 1.4 × 4.0 m) |
144.9 m |
| VCA Range (Humans: 1.8 × 0.5 m) |
55.2 m |
| Temperature Measurement (Object: 0.2 × 0.2 m) |
23.3 m |
| Temperature Measurement (Object: 1 × 1 m) |
116.7 m |
| Fire Detection (Object: 0.2 × 0.2 m) |
82.8 m |
| Smoking Detection |
10.35 m |
| DORI Ranges |
|
| Detection Range (Vehicles: 1.4 × 4.0 m) |
881 m |
| Detection Range (Humans: 1.8 × 0.5 m) |
287 m |
| Recognition Range (Vehicles: 1.4 × 4.0 m) |
220 m |
| Recognition Range (Humans: 1.8 × 0.5 m) |
72 m |
| Identification Range (Vehicles: 1.4 × 4.0 m) |
110 m |
| Identification Range (Humans: 1.8 × 0.5 m) |
36 m |
| Available Model |
|
| Model |
DS-2TD1228-7/QA |
| Optional Accessories |
|
| Wall Mount |
DS-1273ZJ-140
DS-1273ZJ-140B
DS-1273ZJ140(BLACK) |
| Pendant Mount |
DS-1271ZJ-140 |
| Vertical Pole Mount |
DS-1275ZJ-SUS |
| Corner Mount |
DS-1276ZJ-SUS |
| Junction Box |
DS-1280ZJ-DM21 |
Q&A
Q: What is the primary benefit of a bi-spectrum camera?
A: A bi-spectrum camera combines thermal and optical imaging, allowing for comprehensive surveillance in all lighting conditions, including complete darkness, and enabling advanced features like accurate temperature measurement and human/vehicle classification.
Q: Can this camera detect fires?
A: Yes, the camera has a temperature measurement range of -20°C to 150°C and can send temperature exception alarms for fire prevention. It also features a dedicated fire detection function.
Q: What is the detection range for humans and vehicles?
A: The detection range for humans (1.8 × 0.5 m) is up to 287 meters, and for vehicles (1.4 × 4.0 m) is up to 881 meters, based on Johnson's Criteria.
Q: Does this camera have night vision?
A: Yes, it has an IR distance of up to 15 meters and a white light range of up to 30 meters for effective illumination in low-light or no-light conditions.
Q: Is the camera weatherproof?
A: Yes, the camera has an IP67 protection level, making it resistant to dust and water, and is suitable for outdoor use. It also features TVS 6000V lightning, surge, and voltage transient protection.
Q: Can I access the camera remotely?
A: Yes, you can access the camera using client software like iVMS-4200 and Hik-Connect, or through a web browser (Internet Explorer 11, Chrome 57.0+, Firefox 52.0+).
Q: Does it support local storage?
A: Yes, it supports MicroSD/SDHC/SDXC cards up to 256 GB for local storage, as well as NAS (NFS, SMB/CIFS) and Auto Network Replenishment (ANR).
Q: What kind of alarms does it provide?
A: It offers visual alarms (white light with adjustable flashing frequencies) and audio alarms (2 preset voice alerts, 6 importable user-defined voice alerts) for VCA and temperature exceptions.
Q: What are the power options for this camera?
A: The camera can be powered by 12 VDC ± 25% or Power over Ethernet (PoE 802.3af, class 3).
