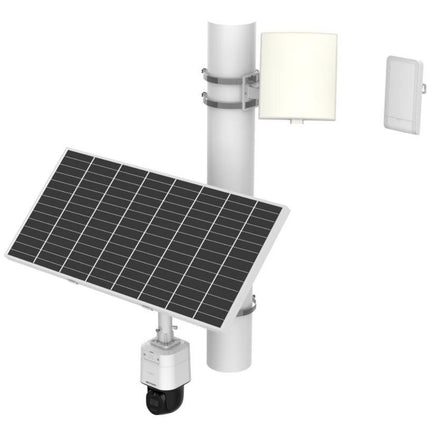

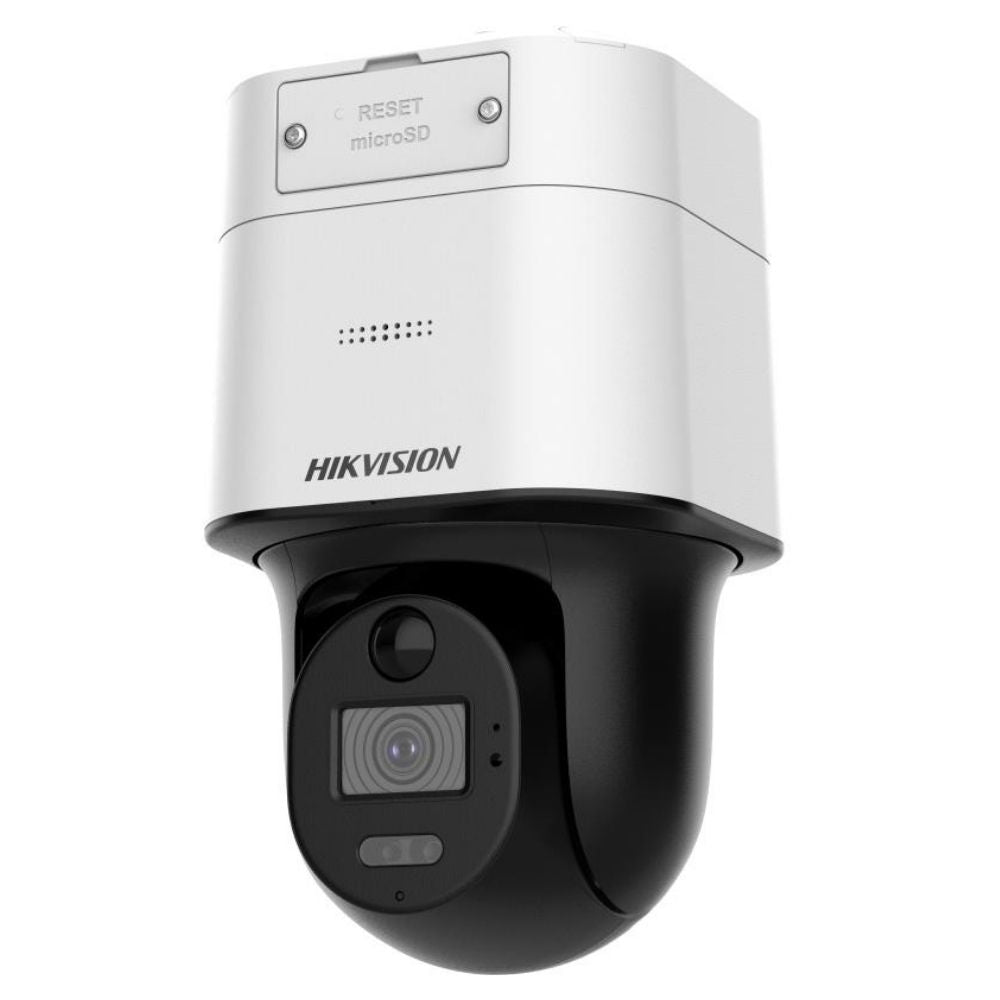

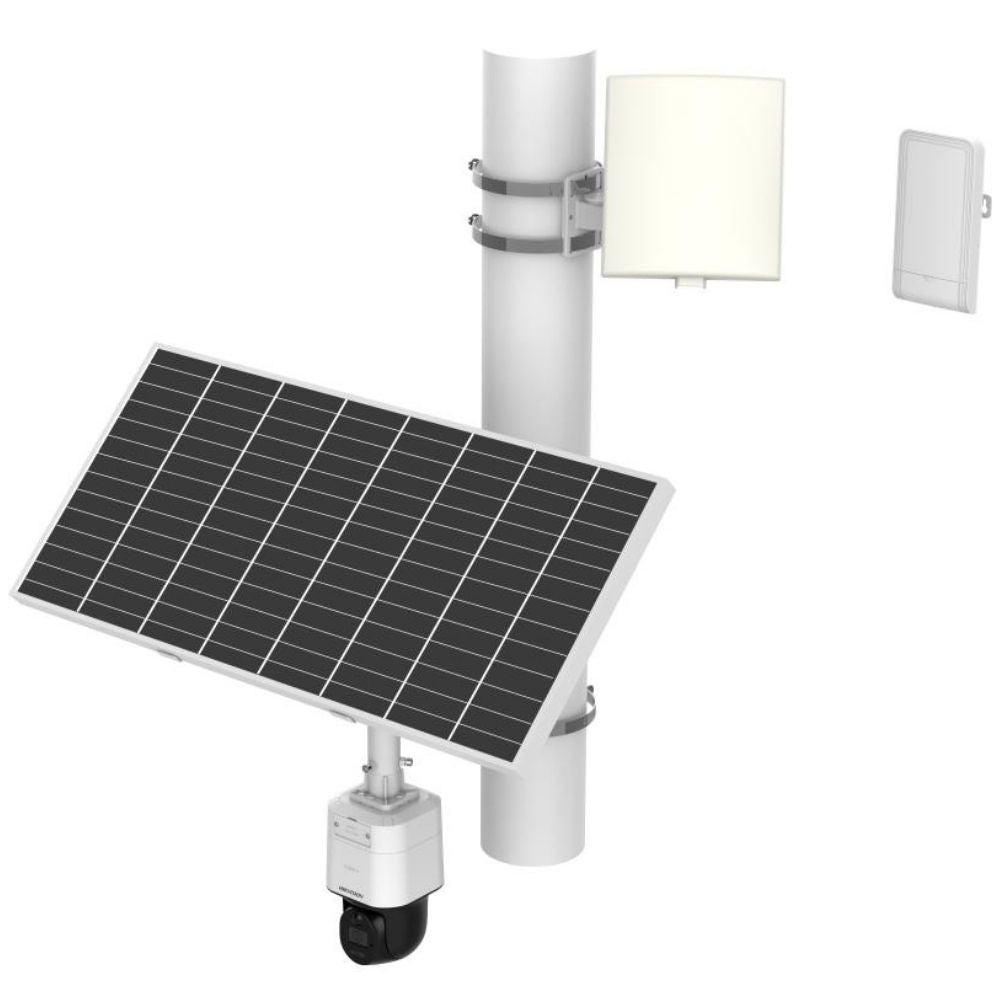

The Hikvision DS-2XS3Q47G1-LDW(H)/C18S40 is a standalone 4MP ColorVu solar-powered PT camera designed for reliable off-grid security. Featuring a built-in solar panel, rechargeable battery, and two-way audio, it provides 24/7 colorful monitoring without the need for wired power. With flexible lens options, smart video compression, and wireless connectivity, this camera is ideal for remote locations, farms, construction sites, and critical outdoor monitoring.
Key Features
-
4MP High-Resolution Imaging: Captures sharp details at 2560 × 1440 resolution.
-
Solar-Powered & Battery Backup: Integrated solar panel and lithium battery allow standalone operation.
-
24/7 ColorVu Imaging: F1.0 super-aperture lens delivers bright, colorful video even in low light.
-
Supplemental White Light (30m): Ensures visibility in complete darkness.
-
Two-Way Audio: Built-in microphone and speaker provide real-time communication.
-
Wireless Connectivity: Supports Wi-Fi and P2P Network Bridge for flexible deployment.
-
PT Camera Setup: 0°–340° pan and -5°–105° tilt range with configurable speed control.
-
Rugged Outdoor Design: IP65 protection, designed for demanding environments.
Downloads
Perfect For:
- Remote farms & agricultural fields
- Off-grid construction sites
- Oil, gas, and mining operations
- Border monitoring & temporary checkpoints
- Parking lots & outdoor storage areas
Installer Tips
-
Optimal Angle: Adjust solar panel pan (0°–358°) and tilt (-40°–0°) for maximum sunlight.
-
Mounting Height: Install between 3–5 meters for wide coverage and effective deterrence.
-
Lens Choice:
- 2.8mm for wide open areas
- 4mm for balanced coverage
- 6mm for long-distance focus
-
Battery Modes:
- Performance: ~3.6 days runtime
- Proactive: ~6 days runtime
- Standby: up to 30 days
Quick-Read Specs
| Specification |
Detail |
| Resolution |
4MP (2560 × 1440) |
| Lens Options |
2.8mm (96° HFOV), 4mm (76° HFOV), 6mm (50° HFOV) |
| Aperture |
F1.0 |
| Pan/Tilt Range |
Pan: 0°–340°, Tilt: -5°–105° |
| Illumination |
White light up to 30m |
| Audio |
Built-in mic & speaker (97 dB @ 10cm) |
| Connectivity |
Wi-Fi (2.4 GHz), P2P bridge |
| Storage |
Built-in 64GB eMMC + microSD up to 512GB |
| Power |
Solar + dual lithium battery packs (8.4Ah × 2) |
| Protection |
IP65 |
| Weight |
Approx. 13.3 kg (camera + solar unit) |
Extra Info
Solar-Powered Independence
The integrated solar panel and lithium battery design allow this camera to run completely off-grid, ensuring uninterrupted monitoring in remote areas.
ColorVu Technology
With a 0.0005 Lux sensitivity and F1.0 aperture lens, the camera delivers full-color images around the clock, capturing critical details even in low-light conditions.
Two-Way Audio Security
The built-in microphone and speaker enable real-time communication with visitors or intruders, adding an active deterrence layer.
Smart PT Control
Supports flexible pan and tilt adjustments with configurable speed for precise area coverage.
Rugged Reliability
Certified IP65 for outdoor use, with strong resistance to dust, water, and harsh environments.
Battery Performance
Dual lithium packs ensure long-lasting operation with multiple modes: performance, proactive, and standby, offering flexibility for different deployment needs.
Q&A
Q1: Can it work without external power?
Yes, it runs on its built-in solar panel and battery, making it fully standalone.
Q2: Does it support night vision?
Yes, it provides 24/7 ColorVu imaging and supplemental white light up to 30m.
Q3: Can I talk through the camera?
Yes, it supports two-way audio with a microphone and speaker.
Q4: Is it weatherproof?
Yes, it has an IP65 rating for outdoor environments.
Q5: What storage options are available?
It has built-in 64GB eMMC storage and supports microSD cards up to 512GB.
Q6: How long does the battery last?
Depending on mode, it lasts from 3.6 days (performance) to 30 days (standby).
Q7: Does it support wireless connection?
Yes, it supports Wi-Fi and P2P communication for easy remote access.
