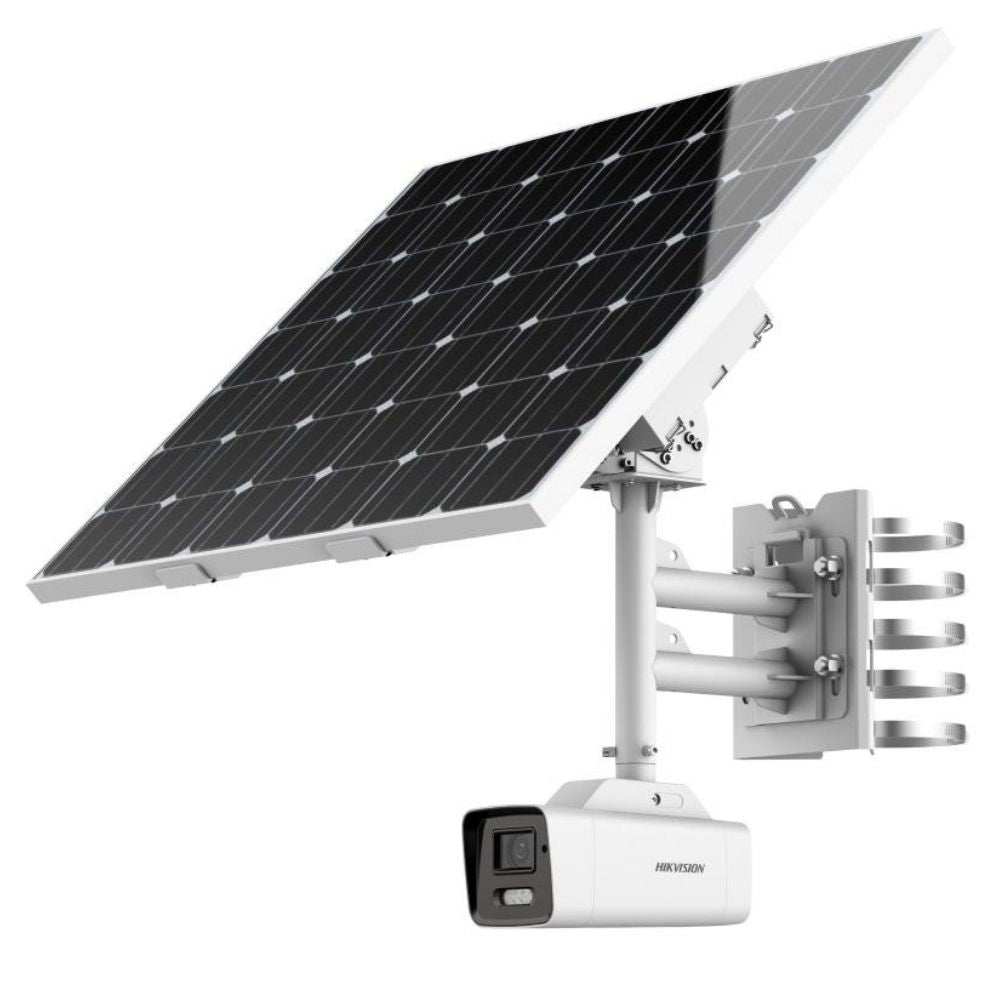

The Hikvision DS-2XS6A46G1/P-IZS/C36S80 is a high-performance 4MP ANPR (Automatic Number Plate Recognition) camera designed for standalone solar-powered operation. Featuring deep learning algorithms, 4G connectivity, and rugged IP66 weather protection, this camera provides reliable monitoring in remote or off-grid locations. With built-in ANPR, smart event detection, and advanced battery management, it is ideal for traffic monitoring, perimeter defense, and temporary surveillance deployments.
Key Features
-
Solar & Battery Powered: 80W photovoltaic panel with 360Wh lithium battery for off-grid use.
-
4MP ANPR Camera: Built-in license plate capture and recognition with ≥95% accuracy.
-
Smart Detection: AcuSense technology for human and vehicle classification, intrusion, and line crossing alerts.
-
Wide Dynamic Range: 120 dB true WDR for clear imaging against strong backlight.
-
Flexible Lens Options: Motorized 2.8–12mm or 8–32mm lenses with auto-iris.
-
IR Illumination: Up to 50m smart IR for nighttime visibility.
-
4G Wireless Transmission: LTE-TDD/LTE-FDD/WCDMA/GSM support with Micro SIM card.
-
Rugged Build: Metal housing, IP66-rated weather protection, wind resistance up to 40 m/s.
-
Battery Management: Protection against overcharge/discharge, high/low temperature, and remote wake-up.
Downloads
Perfect For:
- Remote highways & road traffic control
- Temporary event security (concerts, festivals, construction sites)
- Rural & off-grid farms, forestry, and oil/gas pipelines
- Riverbanks, power lines, and other critical infrastructure
- Border surveillance and temporary checkpoints
Installer Tips
-
Mounting: Install in an open area with maximum solar exposure.
-
Lens Selection:
- 2.8–12mm for general coverage (30m IR)
- 8–32mm for long-range vehicle monitoring (50m IR)
-
Battery Modes:
- Proactive Mode: ~8 days runtime
- Standby Mode: ~80 days runtime
-
Networking: Use a Micro SIM card for 4G connectivity; Wi-Fi module supports AP mode (Channel 11 only).
-
Height Placement: Mount at ~3–6 meters for optimal ANPR accuracy.
Quick-Read Specs
| Specification |
Detail |
| Resolution |
4MP (2560 × 1440) |
| Image Sensor |
1/1.8" Progressive Scan CMOS |
| Lens Options |
2.8–12mm (F1.2) / 8–32mm (F1.6), motorized zoom |
| IR Range |
Up to 30m (2.8–12mm), up to 50m (8–32mm) |
| ANPR |
≥95% license plate recognition accuracy |
| WDR |
120 dB |
| Audio |
Line in/out supported |
| Connectivity |
4G LTE, WCDMA, GSM |
| Storage |
MicroSD up to 256GB + 8GB eMMC |
| Protection |
IP66, wind resistance up to 40 m/s |
| Power |
80W solar + 360Wh lithium battery |
| Weight |
~31.9 kg (with solar unit) |
Extra Info
Solar-Powered Independence
The 80W solar panel and 360Wh rechargeable lithium battery make this camera completely standalone, with smart power management to extend runtime during cloudy days.
Advanced ANPR
Built-in deep learning algorithms deliver high-accuracy plate recognition, including blocklist/allowlist management for automated alarms.
Smart Detection & Events
Supports intrusion detection, line crossing, unattended baggage, face detection, and region entrance/exit alerts for advanced security scenarios.
Rugged Outdoor Reliability
The IP66-rated housing with metal body withstands dust, rain, and harsh weather. Tested for wind resistance up to 40 m/s, making it suitable for exposed environments.
Flexible Storage & Transmission
Built-in 8GB eMMC and support for up to 256GB microSD cards, plus 4G wireless transmission for real-time remote monitoring.
Battery Lifecycle
Supports more than 500 cycles with proactive (8 days) and standby (80 days) modes, ensuring long-lasting field operation.
Q&A
Q1: Can it capture license plates at night?
Yes, the camera features smart IR up to 50m and deep learning ANPR with high accuracy.
Q2: How long can the battery last without sunlight?
Up to 8 days in proactive mode, and up to 80 days in standby mode.
Q3: Does it need wired power or internet?
No, it operates fully via solar and 4G wireless network.
Q4: Is it weatherproof?
Yes, it has an IP66 rating and resists strong winds up to 40 m/s.
Q5: What lens options are available?
You can choose between 2.8–12mm (general coverage) or 8–32mm (long-range focus).
Q6: Can it store footage locally?
Yes, it supports microSD (up to 256GB) plus built-in 8GB eMMC storage.
Q7: What are typical use cases?
Ideal for road traffic ANPR, temporary event monitoring, remote farms, oil pipelines, and other off-grid security applications.
