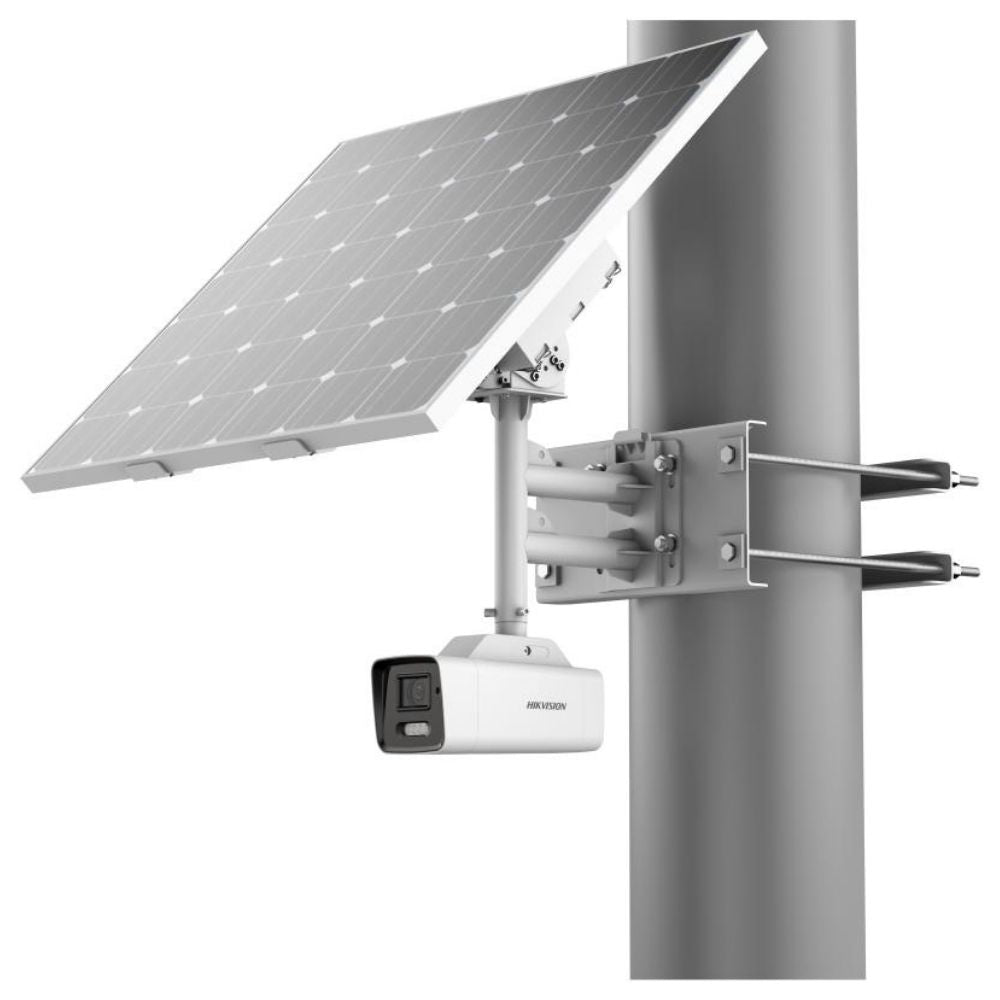

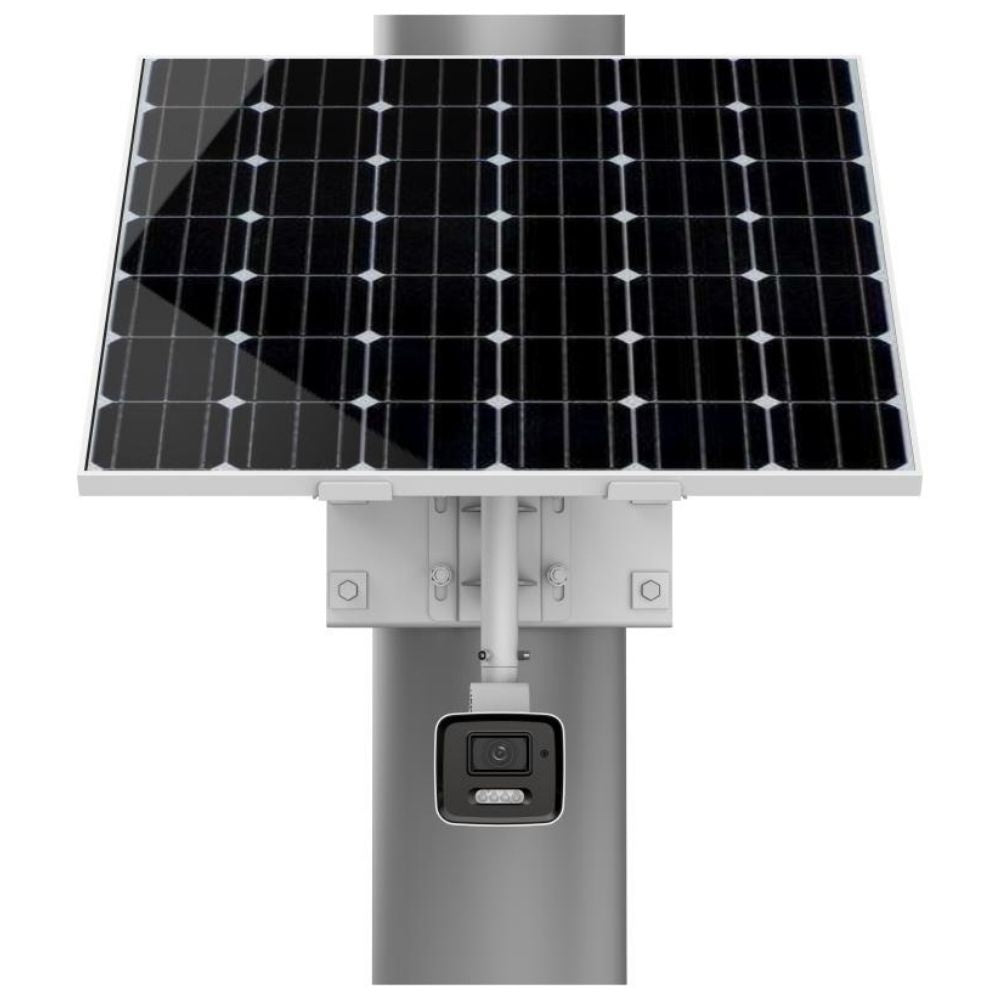

The Hikvision DS-2XS6A87G1-LS/C36S80 is a 4K solar-powered ColorVu camera designed for off-grid surveillance in tough environments. With its integrated solar panel, lithium battery, and 4G wireless connectivity, it operates independently without wired network or power lines. Featuring 24/7 full-color imaging, AcuSense deep learning for human and vehicle detection, and IP67-rated durability, this camera is ideal for farms, critical infrastructure, river systems, pipelines, and temporary monitoring scenarios such as events, construction, and traffic control.
Key Features
-
Ultra HD Imaging: 8MP (3840 × 2160) resolution at 15 fps for crystal-clear monitoring.
-
ColorVu Technology: F1.0 super-aperture lens with advanced sensor for vivid full-color images day and night.
-
Smart Detection: AcuSense algorithms for human and vehicle classification, intrusion, and line crossing alerts.
-
Solar-Powered: 80W photovoltaic panel with 360Wh rechargeable lithium battery for reliable off-grid use.
-
Battery Protection: Built-in power management with overcharge/discharge, temperature protection, and remote wake-up.
-
4G Wireless Connectivity: LTE-TDD/LTE-FDD/WCDMA/GSM support with Micro SIM card slot.
-
Onboard Storage: Built-in 64GB eMMC and microSD card support up to 256GB.
-
Rugged Build: IP67 weatherproof housing, wind resistance up to 40m/s.
-
Smart White Light: Up to 30m illumination with adaptive brightness.
Downloads
Perfect For:
- Remote farms, forests, and river monitoring
- Power lines, oil & gas pipelines, and critical infrastructure
- Temporary event security and public activities
- Traffic checkpoints and construction zones
- Off-grid locations requiring stable, independent surveillance
Installer Tips
-
Mounting: Install in open areas for maximum solar exposure.
-
Lens Choice:
- 2.8mm for wide-angle coverage (101° HFOV, 30m DORI identify range)
- 4mm for focused coverage (88° HFOV, 42m DORI observe range)
-
Battery Runtime:
- Proactive mode: up to 5 days
- Standby mode: up to 80 days
-
Network Setup: Insert Micro SIM card for 4G transmission; supports global bands depending on region model.
-
Height Placement: 3–6 meters recommended for optimal detection and field of view.
Quick-Read Specs
| Specification |
Detail |
| Resolution |
8MP (3840 × 2160) @15 fps |
| Sensor |
1/1.2" Progressive Scan CMOS |
| Lens Options |
2.8mm (HFOV 101.6°) / 4mm (HFOV 88°), fixed |
| Aperture |
F1.0 (super-aperture) |
| Illumination |
White light up to 30m |
| WDR |
130 dB |
| Audio |
Line in/out supported |
| Storage |
Built-in 64GB eMMC + microSD up to 256GB |
| Connectivity |
4G LTE, WCDMA, GSM |
| Protection |
IP67, wind resistance up to 40 m/s |
| Power |
80W solar panel + 360Wh lithium battery |
| Weight |
~30.2 kg (with solar unit) |
Extra Info
ColorVu Technology
With its advanced F1.0 lens and large 1/1.2" CMOS sensor, the camera produces vivid, full-color images even in near-total darkness—ideal for identifying details such as faces, license plates, and objects.
Smart AcuSense Detection
Equipped with deep learning, it can distinguish humans and vehicles from irrelevant motion, reducing false alarms and improving alert accuracy.
Solar-Powered Reliability
The 80W solar panel paired with a 360Wh lithium battery provides sustainable, independent operation. Intelligent battery management prevents overcharging, overheating, and ensures extended field performance.
Rugged Outdoor Design
The IP67-rated metal housing resists dust, rain, and harsh weather. Wind resistance up to 40 m/s ensures durability in exposed environments.
Flexible Deployment
Supports remote standalone monitoring without grid power or wired internet—perfect for temporary and hard-to-reach sites.
Q&A
Q1: Can it record in complete darkness?
Yes, the ColorVu technology with F1.0 aperture and white light illumination provides full-color imaging 24/7.
Q2: Does it have built-in audio?
Yes, it supports audio input and output (line in/out) for recording and external speaker integration.
Q3: How long does the battery last without sunlight?
Up to 5 days in proactive mode, and up to 80 days in standby mode.
Q4: Is it weatherproof?
Yes, it is IP67-rated and withstands wind speeds up to 40 m/s.
Q5: Can it store footage locally?
Yes, with built-in 64GB eMMC and microSD card support up to 256GB.
Q6: Does it support two lens options?
Yes, you can choose between 2.8mm (wide coverage) and 4mm (longer range).
Q7: Where is it best used?
In off-grid environments such as farms, forests, riverbanks, construction sites, and remote infrastructure.
