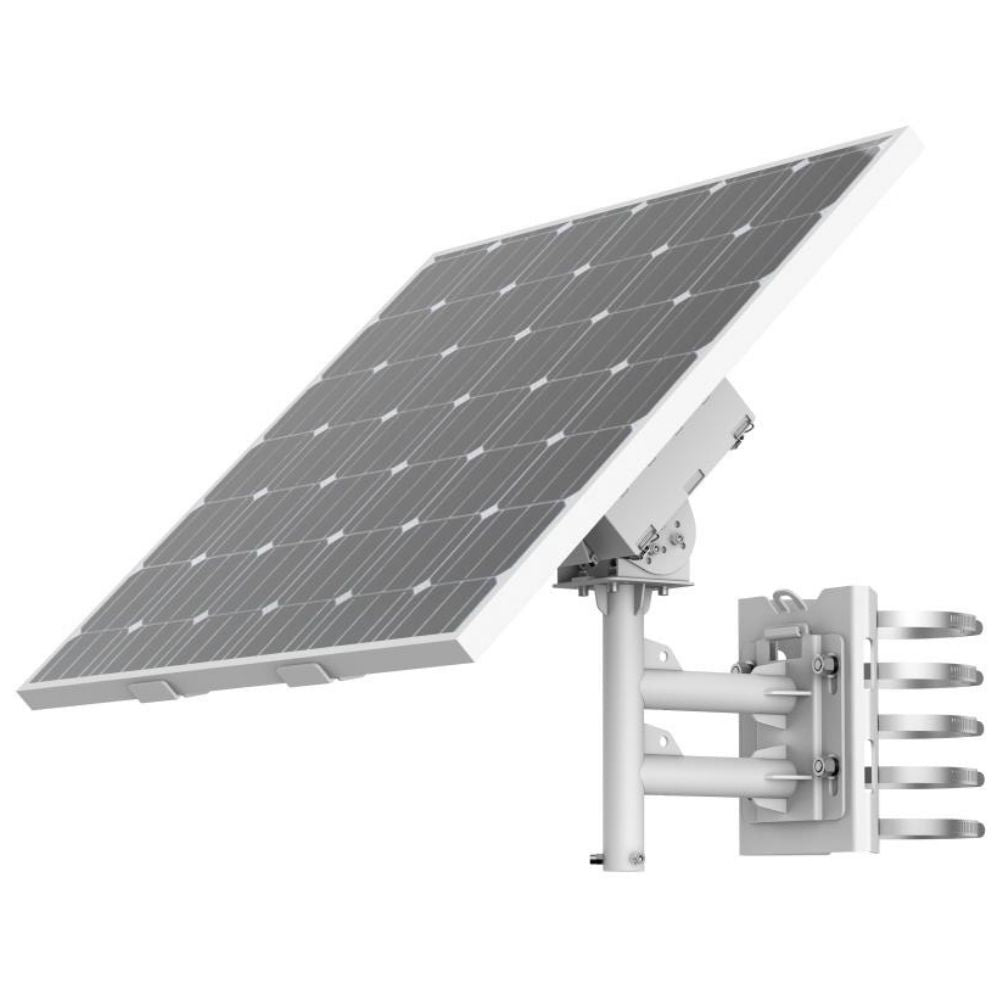

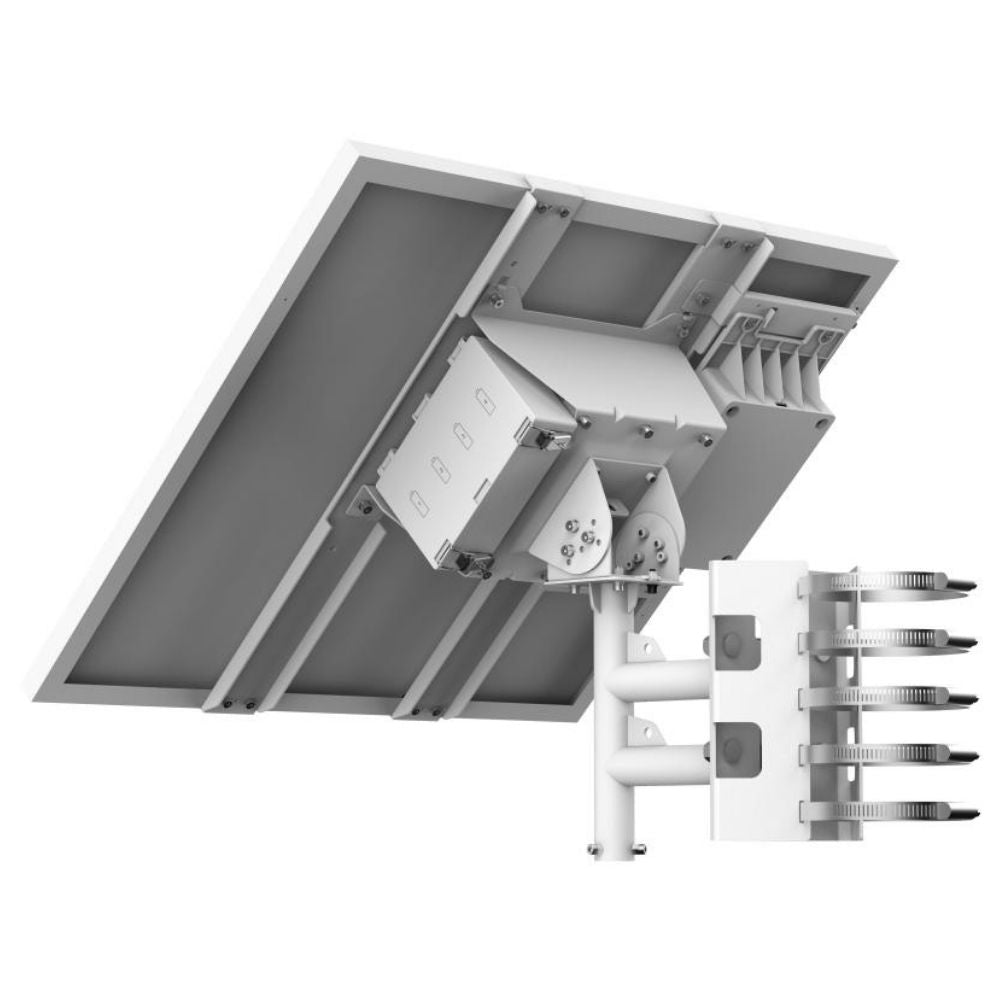

The Hikvision DS-2XS6K01-C36S80 is a rugged solar power kit designed to provide reliable, sustainable energy for Hikvision solar-powered camera systems. Equipped with an 80W photovoltaic panel and a 360Wh rechargeable lithium battery, it ensures continuous operation in remote and off-grid environments. With advanced battery management, IP66 weather resistance, and intelligent safety protections, this kit is built for long-term outdoor deployments where stable power is essential.
Key Features
-
80W Photovoltaic Panel: Efficient solar energy conversion for 24/7 operation.
-
360Wh Lithium Battery: Rechargeable, long-lasting power supply with over 500 life cycles.
-
Battery Management System: Protects against overcharge, over-discharge, and extreme temperatures.
-
Remote Wake-Up: Allows activation even from standby mode.
-
Rugged Outdoor Design: IP66 water- and dust-resistant housing with wind resistance up to 40 m/s.
-
Stable Output: Provides 9–12.6 VDC, max. 30W power via dual coaxial plugs.
-
Flexible Integration: Connects seamlessly with Hikvision Solar 4G Network Camera Kits via RS-485.
Downloads
Perfect For:
- Remote farms and forest monitoring
- Construction sites and temporary surveillance points
- Oil pipelines, power lines, and industrial facilities
- Traffic checkpoints and public event security
- Any location without stable grid power
Installer Tips
-
Solar Exposure: Install in open areas with maximum sunlight access.
-
Mounting: Ensure proper structural support for wind resistance up to 40 m/s.
-
Battery Care: Operates best within charging range (-20°C to 45°C) and discharging range (-20°C to 60°C).
-
Integration: Use RS-485 connection for communication with solar-powered cameras.
-
Protection Level: This model has no specific anti-corrosion protection—avoid deployment in heavy coastal or chemical environments.
Quick-Read Specs
| Specification |
Detail |
| Solar Panel |
80W photovoltaic |
| Battery |
Lithium, 360Wh total (90Wh × 4) |
| Battery Voltage |
10.8V |
| Battery Life |
500+ charge/discharge cycles |
| Power Output |
9–12.6 VDC, max. 30W |
| Interface |
RS-485 (half duplex) |
| Dimensions |
640.4 × 735.9 × 760 mm (assembled) |
| Weight |
~24 kg (30 kg with packaging) |
| Protection |
IP66, wind resistance up to 40 m/s |
| Operating Temp |
Charging: -20°C to 45°C / Discharging: -20°C to 60°C |
| Compliance |
CE, RCM, ICES, CB, RoHS, WEEE, REACH |
Extra Info
Advanced Battery Protection
The system integrates high/low temperature protection, charge-discharge safety, low-battery sleep mode, and remote wake-up, ensuring long service life and safe operation in harsh environments.
Durable Outdoor Design
With IP66 water and dust resistance plus strong wind resistance, the DS-2XS6K01-C36S80 is engineered for reliable performance in exposed outdoor conditions.
Environmental Compliance
Certified with CE-EMC, RCM, ICES, and RoHS standards, this solar kit meets strict safety and environmental regulations.
Application Suitability
While designed for general outdoor use, it does not feature enhanced anti-corrosion coating. For coastal or chemical plant environments, Hikvision’s top-level protection models are recommended.
Q&A
Q1: Can this power kit work without sunlight?
Yes, the 360Wh battery stores energy, providing backup during low-light conditions.
Q2: How long does the battery last?
With over 500 charge cycles, it is built for long-term operation.
Q3: Is it weatherproof?
Yes, the system is IP66-rated and resists wind speeds up to 40 m/s.
Q4: Does it have anti-corrosion protection?
No, this model has no specific anti-corrosion coating and is not ideal for high-salt or chemical-heavy environments.
Q5: Can it integrate with solar-powered cameras?
Yes, it connects via RS-485 and is designed to work with Hikvision Solar 4G Network Camera Kits.
