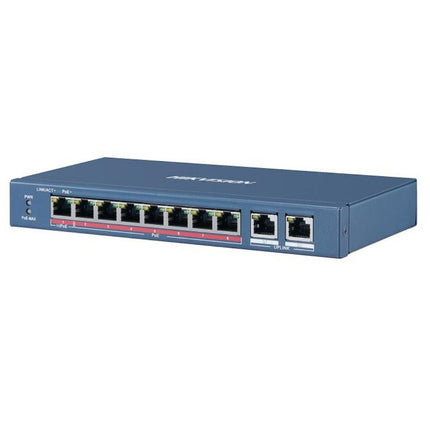

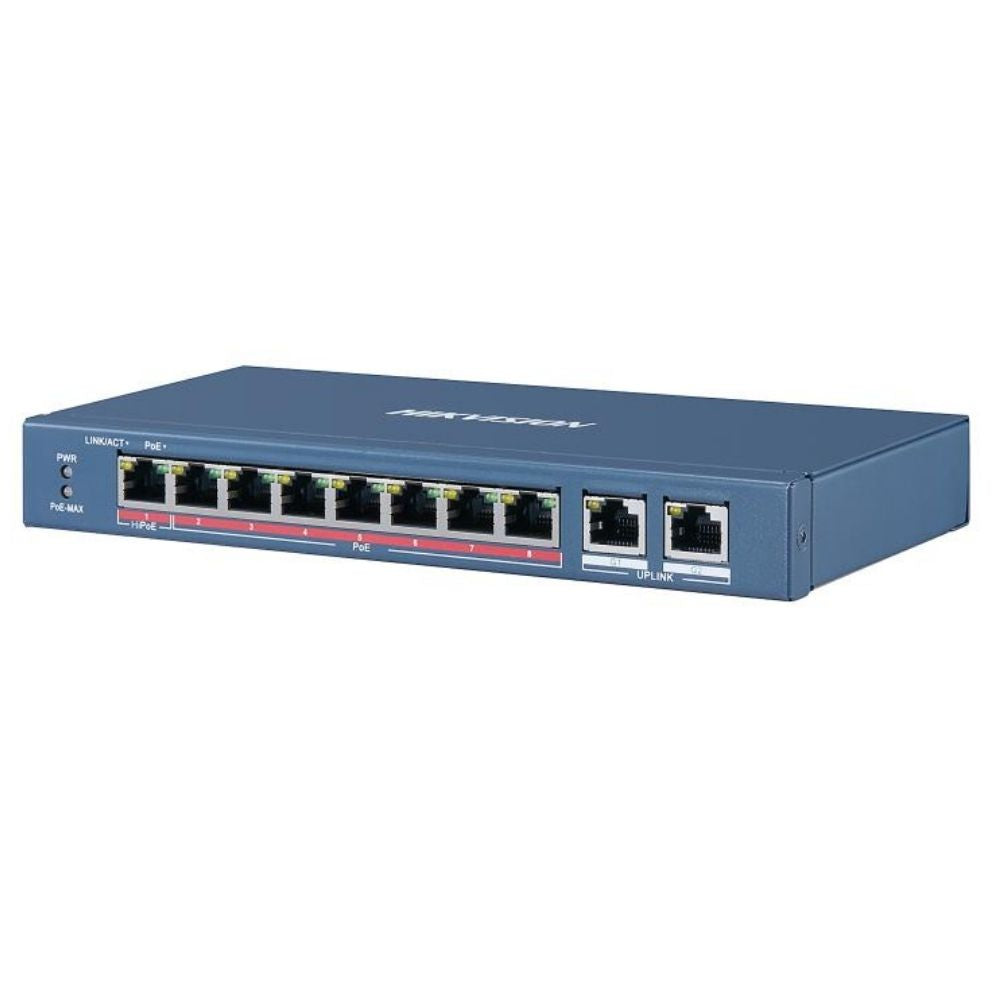

The Hikvision DS-3E0310HP-E is an 8-port Fast Ethernet unmanaged PoE switch designed for reliable power and data transmission in various security applications. This robust switch offers intelligent PoE management, extended long-range PoE transmission up to 300 meters, and supports the IEEE 802.3bt standard for high-power devices, providing up to 90W on a single port. Ideal for powering IP cameras, wireless access points, and other PoE-compatible devices, it's a perfect solution for home security setups, small office networks, or expanding an existing surveillance system with ease and efficiency.
Features
-
Intelligent PoE Management: Optimizes power allocation to connected devices, ensuring stable operation and preventing overload.
-
Extended Reach PoE: Transmit power and data up to 300 meters, ideal for installations requiring longer cable runs without additional extenders.
-
High-Power PoE (Hi-PoE): Delivers up to 90W on Port 1, capable of powering demanding devices like PTZ cameras or high-performance wireless access points.
-
Enhanced Durability: Features 6 kV surge protection, providing reliable operation even in harsh electrical environments.
-
Efficient Power Supply: Utilizes a 4/8-core adaptive power supply, minimizing power loss and improving overall efficiency.
-
Flexible Installation: Designed for both wall-mounted and desk-mounted setups, offering versatile placement options.
-
Silent Operation: Fan-free design ensures quiet performance, suitable for noise-sensitive environments.
-
Prioritized Data Transmission: VIP port function ensures critical data from specified ports is preferentially forwarded when bandwidth is limited.
DOWNLOADS
Installer Tips
-
Use Port 1 for High-Power Devices: PTZ cameras or high-power APs requiring up to 90W should be connected here.
-
Long-Range Setup: For cable runs beyond 100m, use the extended PoE mode (up to 300m).
-
Prioritize Critical Streams: Assign VIP ports to important devices like NVRs or priority cameras.
-
Mounting Options: Wall-mount for clean cable management or desktop use for flexible positioning.
-
Surge Protection: Ensure proper grounding to maximize the built-in 6 kV surge resistance.
Quick-Read Specs
| Specification |
Detail |
| Ports |
8 × 10/100 Mbps PoE, 2 × Gigabit uplink |
| PoE Standard |
IEEE 802.3af / at / bt |
| Max PoE Power |
Port 1: 90W (Hi-PoE), Ports 2–8: 30W each |
| Total PoE Budget |
110W |
| Switching Capacity |
5.6 Gbps |
| Packet Forwarding Rate |
4.17 Mpps |
| Surge Protection |
6 kV |
| Design |
Metal housing, fan-free |
| Dimensions |
217.6 × 27.8 × 103.55 mm |
| Weight |
Net: 0.55 kg / Gross: 1.22 kg |
| Operating Temp |
0 °C to 40 °C (32 °F to 104 °F) |
| Mounting |
Wall or desktop |
Extra Info
Long-Range PoE Capabilities
The DS-3E0310HP-E stands out with its ability to extend PoE transmission distances up to 300 meters. This is particularly beneficial for security camera installations in larger properties, warehouses, or outdoor areas where power outlets might be scarce and traditional 100-meter Ethernet limits are a constraint. This feature can significantly reduce installation complexity and cost by eliminating the need for additional power sources or signal extenders.
High-Power Device Support
With support for the IEEE 802.3bt standard, Port 1 of this switch can deliver up to 90W of power. This makes it suitable for powering power-hungry devices such as advanced pan-tilt-zoom (PTZ) cameras with heaters and blowers, video intercom systems, or high-power wireless access points, providing a single cable solution for both data and power.
Robust and Reliable Design
The switch is built with a metal shell and features a fan-free design for silent operation and enhanced reliability by eliminating a common point of failure. The inclusion of 6 kV surge protection safeguards the device and connected equipment from power surges, making it a dependable choice for installations in environments prone to electrical fluctuations.
Intelligent Power Management
The intelligent PoE management system dynamically allocates power to connected devices. This smart feature helps prevent power overloads and ensures that each connected device receives adequate power for optimal performance, contributing to the longevity and stability of your surveillance system.
Q&A
Q: What is the maximum PoE power output for a single port on this switch?
A: Port 1 can provide up to 90W of PoE power, while Ports 2 to 8 can provide up to 30W each.
Q: Can this switch transmit power and data over long distances?
A: Yes, it supports long-range PoE transmission up to 300 meters for Ports 1 to 8.
Q: Is this switch managed or unmanaged?
A: The DS-3E0310HP-E is an unmanaged PoE switch, offering plug-and-play simplicity.
Q: What is the total PoE power budget for this switch?
A: The total PoE power budget is 110W.
Q: What kind of surge protection does this switch offer?
A: It features 6 kV surge protection to enhance reliability in harsh environments.
Q: What are the dimensions of this switch?
A: The dimensions are 217.6 mm × 27.8 mm × 103.55 mm (W × H × D).
Q: What is the operating temperature range for this device?
A: The operating temperature range is 0 °C to 40 °C (32 °F to 104 °F).
Q: Does this switch have a fan?
A: No, it features a fan-free design for silent operation.
