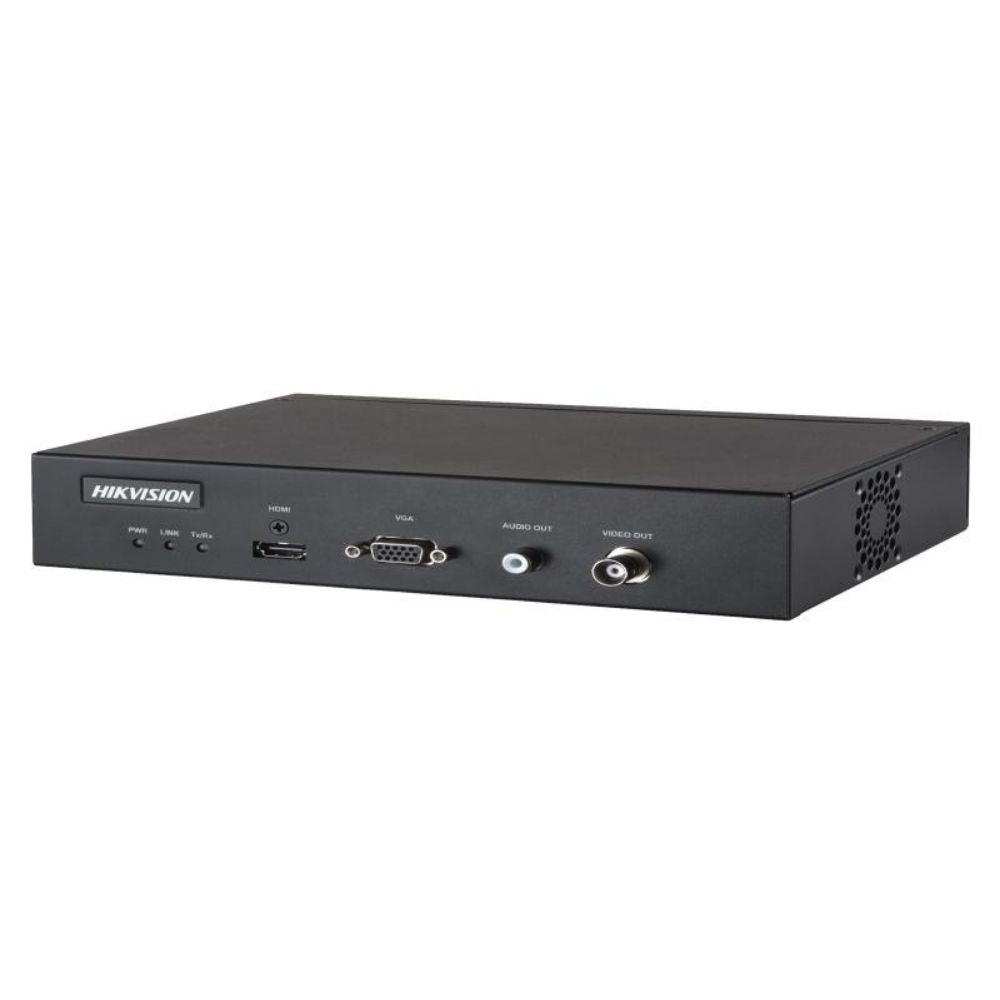

The Hikvision DS-6901UDI(B) is a powerful decoder designed for professional video wall and surveillance applications. It supports multiple output interfaces including HDMI, VGA, and BNC, delivering up to 4K resolution for crystal-clear display. With support for advanced compression formats, multi-channel decoding, and seamless integration with Hikvision cameras (including thermal and DeepinView models), it ensures high-performance, flexible, and reliable video decoding.
Key Features
-
Multi-Output Interfaces – HDMI, VGA, and BNC outputs with resolutions up to 4K.
-
High Decoding Capability – Supports up to 24MP resolution and 16-channel decoding.
-
Advanced Compression – Compatible with H.265+, H.265, H.264+, H.264, MPEG4, and MJPEG.
-
Flexible Screen Management – Supports window roaming, split screen (1/4/6/8/9/12/16), and multi-screen control.
-
Smart Camera Integration – Works with Hikvision DeepinView and thermal network cameras, enabling smart functions such as fire detection, temperature measurement, and VCA info display.
-
Two-Way Audio – Enables interactive communication via client software.
-
Network Versatility – Supports streaming and decoding via URL or RTSP, plus Ethernet port aggregation for stable performance.
-
Customizable Video Wall – Configurable LED screen sizes and virtual screen layouts for dynamic display setups.
Downloads
Perfect For:
- Professional video wall control rooms
- Surveillance monitoring centers
- Large commercial and industrial facilities
- Public safety and city surveillance projects
- Environments requiring integration with thermal or DeepinView cameras
Installer Tips
-
Display Setup: Configure LED width/height properly for seamless video wall integration.
-
Network Load: Use port aggregation for stable bandwidth in multi-stream environments.
-
Smart Functions: Enable or disable smart info when connecting thermal cameras as needed.
-
Screen Flexibility: Take advantage of irregular virtual screen layouts to maximize video wall usage.
-
Power Supply: Use only the recommended 12 VDC power input and ensure stable power conditions.
Quick-Read Specs
| Specification |
Detail |
| Model |
DS-6901UDI(B) |
| Type |
Video Decoder |
| Output Interfaces |
HDMI × 1, VGA × 1, BNC × 1 |
| Output Resolution |
HDMI: Up to 4K (3840 × 2160@30Hz); 1080p@50/60Hz; 720p@50/60HzBNC: PAL 704 × 576 / NTSC 704 × 480 |
| Decoding Capacity |
Up to 24MP@30fps (1-ch), 12MP@20fps (2-ch), 8MP@30fps (4-ch), 1080p@30fps (16-ch) |
| Split Screen Modes |
1/4/6/8/9/12/16 |
| Audio |
Two-way audio in/out (3.5mm connectors) |
| Interfaces |
RS-232, RS-485, Ethernet (10/100/1000 Mbps) |
| Alarms |
8 In / 8 Out |
| Power Supply |
12 VDC |
| Power Consumption |
≤ 15 W |
| Dimensions (W×D×H) |
220 × 148 × 45 mm (8.66 × 5.83 × 1.77 in) |
| Weight |
≤ 1.12 kg (2.47 lb) |
| Operating Temp |
-10 °C to 55 °C (14 °F to 131 °F) |
| Humidity |
10% to 90% |
Extra Info
Advanced Decoding Performance
The DS-6901UDI(B) delivers high decoding capacity, supporting multiple high-resolution streams simultaneously with smooth playback.
Smart Camera Compatibility
Direct integration with Hikvision DeepinView and thermal cameras enables advanced analytics, including fire source detection, temperature measurement, and ship detection.
Flexible Display Options
Supports irregular virtual screens, LED configuration, and multi-window display for dynamic and professional video wall layouts.
Stable Network & Audio Support
With port aggregation and two-way audio, it provides robust communication and seamless integration for command centers.
Q&A
Q1: What is the maximum decoding resolution supported?
It supports up to 24MP@30fps (1 channel) and multiple streams at lower resolutions.
Q2: Can it be connected directly to cameras?
Yes, it can decode streams directly from cameras or via stream media forwarding.
Q3: Does it support thermal cameras?
Yes, it integrates with Hikvision thermal network cameras and can display smart functions.
Q4: How many channels can it decode simultaneously?
It supports up to 16 channels at 1080p resolution.
Q5: What output resolutions are available?
Up to 4K via HDMI, plus support for 1080p, 720p, PAL, and NTSC formats.
