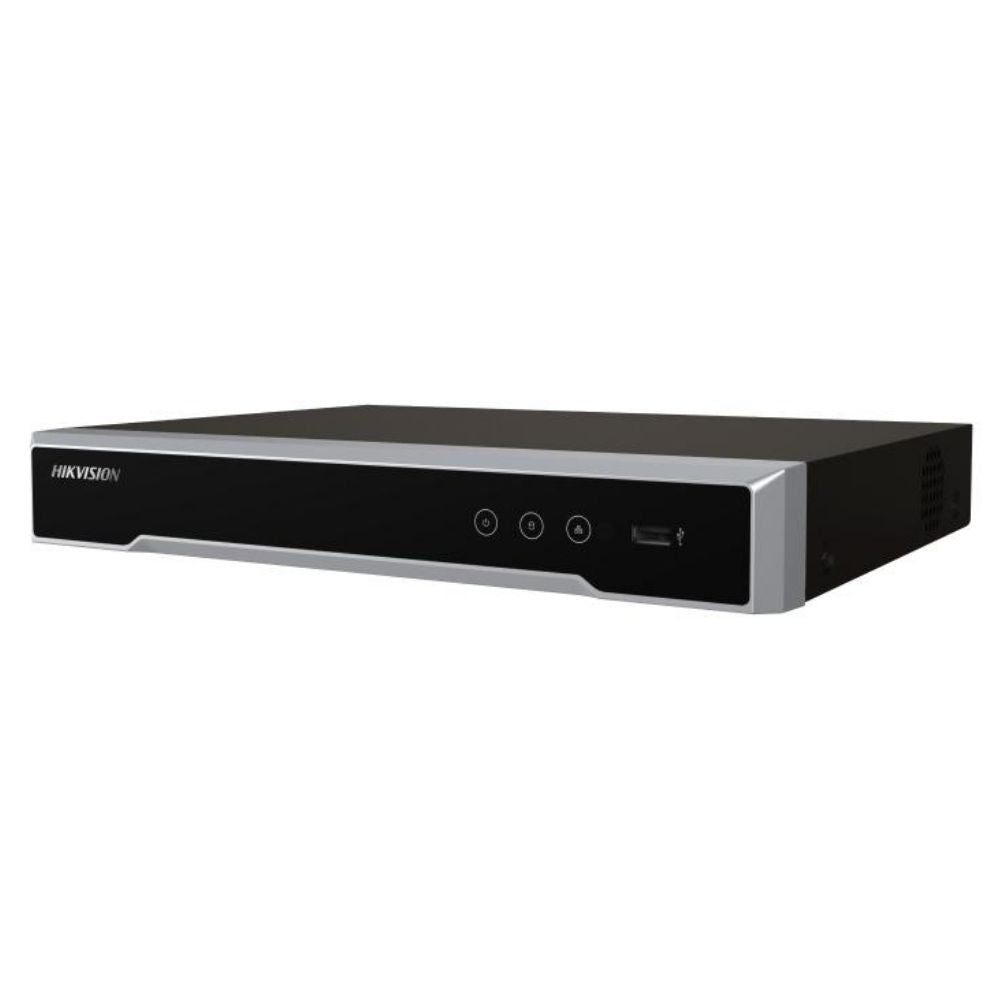

The DS-7604NI-M1/4P is a cutting-edge 8K Network Video Recorder designed for both residential and professional security applications. This NVR boasts impressive decoding capabilities, supporting up to 32 MP resolution for crystal-clear surveillance. With its efficient H.265+ compression, it significantly reduces storage space while maintaining high-quality video. The integrated PoE interfaces simplify installation, making it an ideal choice for homes, small businesses, or retail environments seeking reliable and high-performance video recording.
Features
-
8K Video Output: Experience unparalleled clarity with support for up to 8K resolution on your display.
-
Efficient Compression: Save significant storage space with H.265+ technology, reducing video file sizes by up to 75%.
-
High-Resolution Decoding: Decode up to 4-ch at 8 MP, ensuring every detail is captured with precision.
-
Integrated PoE: Simplify your camera setup with 4 independent Power-over-Ethernet interfaces.
-
Versatile VCA Support: Utilize smart functions like motion detection, line crossing, intrusion detection, and ANPR for intelligent monitoring.
-
Secure Transmission: Benefit from stream over TLS encryption for enhanced data security during transmission.
-
Flexible Storage: Connect up to a 16 TB HDD for ample video storage.
-
Synchronous Playback: Review footage from up to 4 channels simultaneously for comprehensive incident analysis.
-
POS Integration: Overlay transaction information on live view and playback for retail security and loss prevention.
DOWNLOADS
Extra Info
Advanced Video Compression
The DS-7604NI-M1/4P utilizes H.265+ compression, an advanced video encoding standard. This technology intelligently optimizes video streams to drastically reduce bandwidth and storage requirements, often by up to 75% compared to older standards like H.264. For users, this means longer recording times on less disk space and smoother remote viewing even with high-resolution cameras.
Intelligent Video Analytics (VCA)
This NVR supports various Video Content Analytics events, transforming your surveillance system from mere recording to proactive monitoring. Features like line crossing detection can alert you when someone crosses a predefined boundary, while intrusion detection can trigger alarms if an unauthorized person enters a specific area. These capabilities are invaluable for automating security responses and minimizing the need for constant manual monitoring, providing smarter protection for your property.
Secure Stream Transmission
With the integration of stream over TLS (Transport Layer Security) encryption, the DS-7604NI-M1/4P ensures that your video feeds are transmitted securely. This encryption protocol protects your surveillance data from unauthorized access during network transmission, providing a higher level of privacy and security for sensitive footage.
Point-of-Sale (POS) Integration
For retail environments, the NVR's POS function is a significant advantage. It allows for the overlay of transaction information directly onto the live video feed and during playback. This integration helps in verifying transactions, investigating discrepancies, and identifying instances of theft or fraud by correlating video evidence with sales data.
Tech Specs
| Specification |
Details |
| Video and Audio |
|
| IP Video Input |
4-ch
Up to 32 MP resolution |
| Incoming Bandwidth |
40 Mbps |
| Outgoing Bandwidth |
80 Mbps |
| HDMI Output |
8K (7680 × 4320)/30Hz
4K (3840 × 2160)/30Hz
2K (2560 × 1440)/60Hz
1920 × 1080/60 Hz |
| VGA Output |
1920 × 1080/60 Hz |
| Video Output Mode |
HDMI/VGA independent output |
| CVBS Output |
NA |
| Audio Output |
1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio |
1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
| Decoding |
|
| Dual-Stream Recording |
Support |
| Decoding Format |
H.265+/H.265/H.264+/H.264 |
| Decoding Capability |
4-ch@8 MP (30 fps)
8-ch@4 MP (30 fps)
16-ch@1080p (30 fps) |
| Synchronous Playback |
4-ch |
| Recording Resolution |
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Stream Type |
Video, Video & Audio |
| Audio Compression |
G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2 |
| Network |
|
| Remote Connection |
128 |
| Network Protocol |
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| Network Interface |
1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| PoE |
|
| Interface |
4, RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power |
≤ 60 W |
| Standard |
IEEE 802.3 af/at |
| Auxiliary Interface |
|
| SATA |
1 SATA interface |
| Capacity |
Up to 16 TB capacity for each HDD |
| Alarm In/Out |
4/1 |
| USB Interface |
Front panel: 1 × USB 2.0
Rear panel: 1 × USB 2.0 |
| General |
|
| Power Supply |
48 VDC, 1.875 A |
| Consumption |
≤ 15 W (without HDD and PoE off) |
| Working Temperature |
-10 °C to 50 °C (14 °F to 122 °F) |
| Working Humidity |
10% to 90% |
| Dimension (W × D × H) |
320 × 240 × 48 mm (12.4" × 9.4" × 1.9") |
| Weight |
≤ 1.2 kg (without HDD, 2.6 lb.) |
| Certification |
|
| CE |
EN 55032:2015+A1:2020, EN IEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020 |
| Available Model |
|
| Model |
DS-7604NI-M1/4P |
Q&A
Q: What is the maximum resolution this NVR can record?
A: The NVR can record up to 32 MP resolution.
Q: Does this NVR support Power over Ethernet (PoE) for cameras?
A: Yes, it has 4 independent PoE network interfaces following the IEEE 802.3 af/at standard, with a total power budget of ≤60 W.
Q: What is the maximum hard drive capacity supported?
A: It supports one SATA interface with a capacity of up to 16 TB for each HDD.
Q: Can I connect this NVR to an 8K display?
A: Yes, the HDMI output supports up to 8K (7680 × 4320)/30Hz resolution.
Q: What kind of smart functions are available with this NVR?
A: It supports various VCA detections such as motion, line crossing, intrusion, heat map, ANPR (Automatic Number Plate Recognition), and people counting, depending on the connected camera's capabilities.
Q: Does this NVR support remote viewing?
A: Yes, it supports Hik-Connect & DDNS for easy network management and remote connection.
Q: What are the dimensions of the NVR?
A: The dimensions are 320 × 240 × 48 mm (12.4" × 9.4" × 1.9").
Q: Can I access the NVR settings through a web browser?
A: Yes, it supports web access without the need for additional plug-ins.
Q: How many channels can be played back simultaneously?
A: It supports 4-ch synchronous playback.
