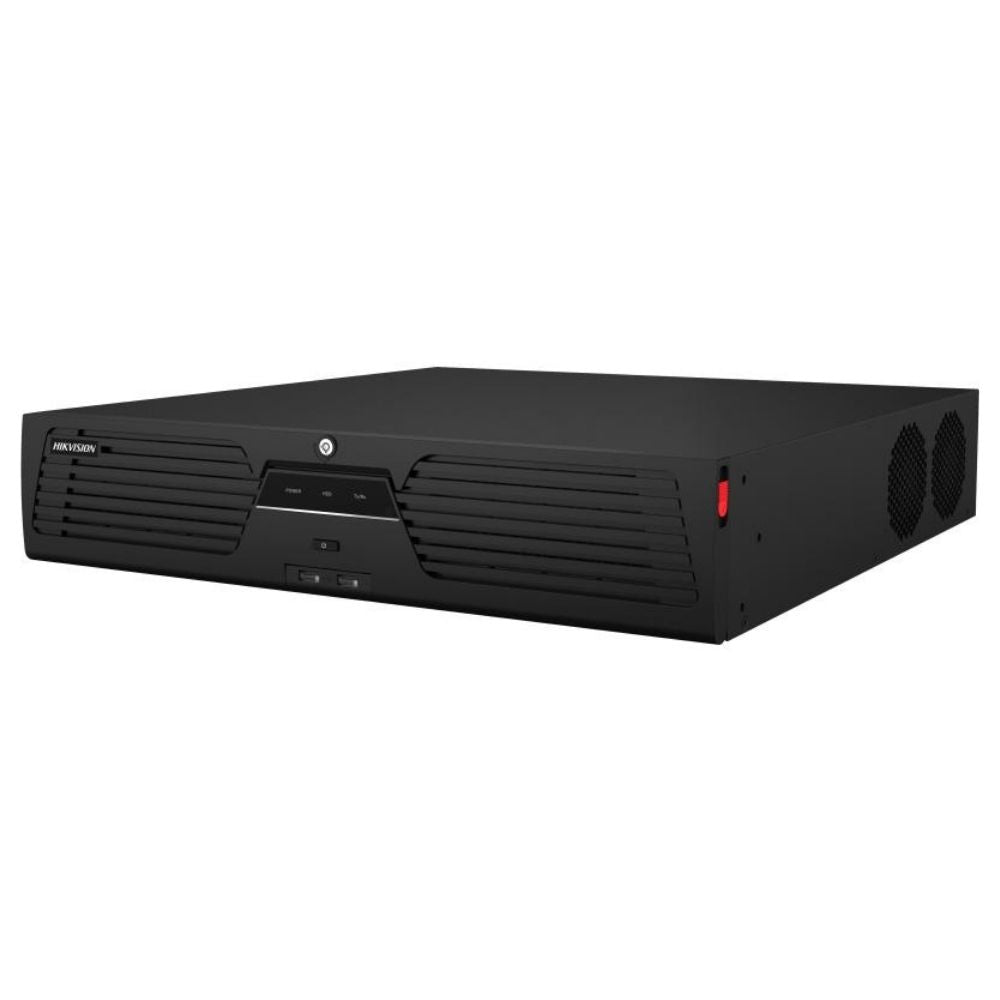

Are you looking for a robust and reliable recording solution for your high-end security camera system? The DS-9632NI-M8 M Series 8K NVR is designed for professional surveillance applications, offering exceptional decoding capabilities and extensive storage options. It's ideal for large-scale deployments, commercial properties, or any scenario where superior video quality, long-term data retention, and system reliability are paramount. This NVR ensures your critical footage is always secure and accessible.
Features
-
Massive IP Camera Support: Connect up to 32 IP cameras for comprehensive surveillance coverage.
-
Unparalleled 8K Decoding: View incredibly detailed footage with support for up to 2-ch 32 MP or dual 4K video outputs.
-
High Bandwidth Performance: Enjoy smooth live viewing and recording with 320 Mbps incoming and 400 Mbps outgoing bandwidth.
-
Flexible Video Outputs: Utilize dual HDMI and dual VGA interfaces for versatile display configurations, including 8K or dual 4K.
-
Advanced Camera Compatibility: Seamlessly integrate specialized cameras like people counting, ANPR, and fisheye cameras.
-
Reliable Data Storage: Benefit from RAID 0, 1, 5, 6, 10, and N+M hot spare support to prevent data loss.
-
Efficient H.265+ Compression: Drastically reduce storage space requirements by up to 75% without compromising video quality.
-
Secure Stream Transmission: Protect your video feeds with stream over TLS encryption technology.
-
Extensive Storage Capacity: Connect up to 8 SATA HDDs, each with a massive 16 TB capacity, plus an eSATA interface.
DOWNLOADS
Extra Info
Superior Decoding for High-Resolution Footage
This NVR boasts an impressive decoding capability, allowing it to handle up to 2 channels of 32 MP footage simultaneously or 10 channels of 8 MP. This means you can view incredibly detailed video from your high-resolution cameras without sacrificing performance, crucial for applications requiring precise identification.
Enhanced Data Protection with RAID
The integrated RAID support (0, 1, 5, 6, 10, and N+M hot spare) offers multiple layers of data redundancy. In the event of a hard drive failure, your recorded footage remains secure and accessible, minimizing the risk of critical data loss. This is essential for businesses and organizations where continuous recording and data integrity are vital.
Optimized Bandwidth Management
With 320 Mbps incoming and 400 Mbps outgoing bandwidth, the DS-9632NI-M8 can efficiently manage a large number of high-resolution cameras. This ensures smooth live viewing, playback, and recording, even in demanding surveillance environments with numerous active streams.
Smart Functionality Integration
This NVR is designed to work seamlessly with intelligent cameras, supporting various Video Content Analytics (VCA) events such as motion detection, line crossing, and intrusion detection. It also supports advanced features from specialized cameras like heat mapping, ANPR (Automatic Number Plate Recognition), and people counting, providing deeper insights and automated alerts for enhanced security and operational efficiency.
Tech Specs
| Specification |
Details |
| Video and Audio |
|
| IP Video Input |
32-ch |
| Incoming Bandwidth |
320 Mbps |
| Outgoing Bandwidth |
400 Mbps |
| HDMI 1 Output |
8K (7680 × 4320)/30Hz,
4K (3840 × 2160)/60Hz,
4K (3840 × 2160)/30Hz,
2K (2560 × 1440)/60Hz,
1920 × 1080/60Hz,
1600 × 1200/60Hz,
1280 × 1024/60Hz,
1280 × 720/60Hz,
1024 × 768/60Hz |
| HDMI 2 Output |
4K (3840 × 2160)/60Hz,
4K (3840 × 2160)/30Hz,
2K (2560 × 1440)/60Hz,
1920 × 1080/60Hz,
1600 × 1200/60Hz,
1280 × 1024/60Hz,
1280 × 720/60Hz,
1024 × 768/60Hz |
| Video Output Mode |
HDMI 1 and VGA 1 simultaneous (main);
HDMI 2 and VGA 2 simultaneous (auxiliary) |
| CVBS Output |
1-ch, BNC (1.0 Vp-p, 75 Ω),
PAL: 704 × 576,
NTSC: 704 × 480 |
| Audio Output |
2-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio |
1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
| Decoding |
|
| Decoding Format |
H.265+/H.265/H.264+/H.264 |
| Recording Resolution |
32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Synchronous Playback |
16-ch |
| Decoding Capability |
2-ch@32 MP (30 fps) + 2-ch@8 MP (30 fps)/
10-ch@8 MP (30 fps)/
20-ch@4 MP (30 fps)/
40-ch@1080p (30 fps) |
| Audio Compression |
G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2/PCM |
| Smart & POS Function |
|
| VCA Events |
Support multiple VCA events |
| Smart Functions |
VCA detection (motion, line crossing, intrusion, etc.),
heat map,
ANPR,
people counting |
| POS Function |
Information overlay on live view and playback,
POS triggered recording and alarm |
| Network & Ethernet Access |
|
| Network Protocol |
TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS |
| Network Interface |
2, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface |
| RAID |
|
| RAID Type |
RAID0, RAID1, RAID5, RAID6, RAID10 |
| Auxiliary Interface |
|
| Serial Interface |
1 RS-485 (full-duplex),
1 RS-232 |
| SATA |
8 SATA interfaces supporting hot-plug |
| eSATA |
1 eSATA interface |
| Capacity (per disk) |
Up to 16 TB |
| Alarm In/Out |
16/9 |
| USB Interface |
Front: 2 × USB 2.0;
Rear: 2 × USB 3.0 |
| Ctrl 12V Output |
Controllable 12 VDC, 1 A power output (controlled by alarm output 9) |
| DC 12V Output |
12 VDC, 1 A power output |
| General |
|
| Power Supply |
100 to 240 VAC, 50 to 60 Hz |
| Consumption |
≤ 50 W (without HDD) |
| Working Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity |
10% to 90% |
| Chassis |
2U chassis |
| Dimension (W × D × H) |
442 × 462 × 88 mm (17.4" × 18.2" × 3.5") |
| Weight (without HDD) |
≤ 10 kg (22 lb.) |
| Certification |
|
| Obtained Certification |
CE, FCC |
| FCC Standard |
Part 15 Subpart B, ANSI C63.4-2014 |
| CE Standard |
EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4 |
| Available Model |
|
| Model |
DS-9632NI-M8 |
Q&A
Q: How many hard drives can this NVR support?
A: The DS-9632NI-M8 supports up to 8 SATA interfaces for HDD connection, with each drive supporting up to 16 TB capacity. It also has 1 eSATA interface.
Q: What is the maximum video output resolution?
A: This NVR offers HDMI 1 output up to 8K (7680 × 4320)/30Hz and HDMI 2 output up to 4K (3840 × 2160)/60Hz.
Q: Does this NVR support advanced analytics like ANPR or people counting?
A: Yes, it supports special cameras, including people counting cameras, ANPR (automatic number plate recognition) cameras, and fisheye cameras, and allows for configurable smart functions from these cameras.
Q: What compression formats does this NVR use?
A: It supports H.265+/H.265/H.264+/H.264 video compression formats, with H.265+ effectively reducing storage space by up to 75%.
Q: Can I access the NVR remotely?
A: Yes, it supports Hik-Connect & DDNS (Dynamic Domain Name System) for easy network management and web access without a plug-in.
