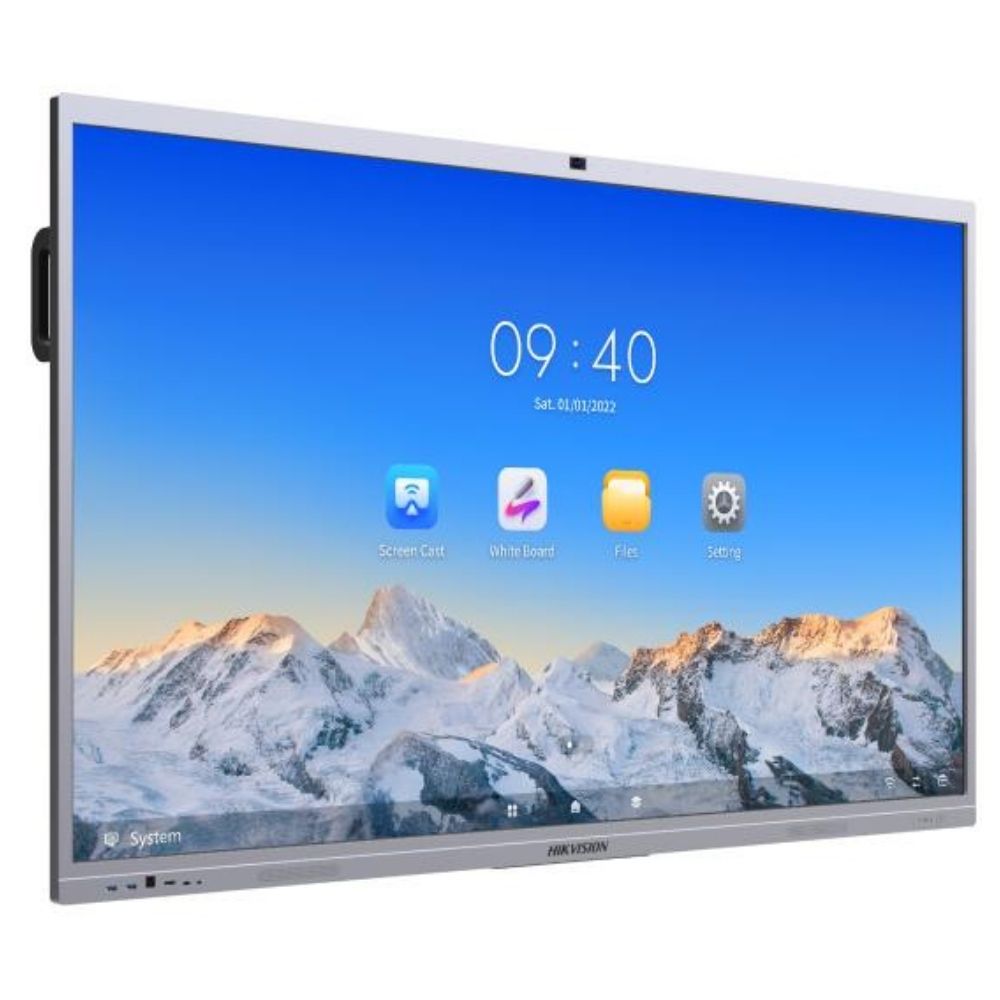

Transform your collaborative spaces with the Hikvision DS-D5C65RB/B 65-inch 4K Interactive Flat Panel. This powerful display integrates a crystal-clear 4K touchscreen, an advanced Android 13.0 operating system, and a high-resolution 48MP camera, making it ideal for dynamic presentations, interactive learning environments, and seamless video conferencing. Enhance productivity and engagement in boardrooms, classrooms, or command centers with its intuitive multi-touch capabilities and robust built-in features.
Features
-
Vibrant 4K Display: Experience stunning clarity and detail on a large 65-inch screen, perfect for showcasing intricate data or high-resolution visuals.
-
Responsive 50-Point Touch: Enjoy fluid and natural interaction, enabling multiple users to collaborate simultaneously with exceptional precision.
-
Integrated 48MP Camera: Conduct crystal-clear video conferences and capture high-quality images, ensuring every participant is seen with impressive detail.
-
Powerful Android 13.0 System: Access a wide range of applications and enjoy a smooth, intuitive user experience powered by a robust Octa-core processor.
-
Omni-directional Microphone Array: Capture clear audio from up to 12 meters, ensuring every voice is heard during meetings and presentations, even in larger rooms.
-
Dual 20W + 25W Loudspeakers: Deliver rich, powerful audio for impactful presentations and clear communication in video conferences.
-
Zero Lamination Glass Bonding: Benefit from reduced parallax and enhanced touch accuracy for a more natural writing and interaction experience.
-
Anti-Glare Surface: Minimize reflections and eye strain, ensuring comfortable viewing and usability in various lighting conditions.
-
Versatile Connectivity: Connect a wide array of devices with multiple HDMI, USB (including Type-C with charging), DP, and LAN ports for seamless integration.
DOWNLOADS
Extra Info
Advanced Touch Technology
The DS-D5C65RB/B features an infrared touch screen with an impressive 50-point multi-touch capability. This allows for incredibly responsive and accurate interaction, enabling multiple users to write, draw, or manipulate content simultaneously with virtually no lag. The Zero Lamination Glass Bonding further enhances this by minimizing the gap between the touch surface and the display, reducing parallax and providing a more natural writing experience akin to pen on paper.
Integrated High-Resolution Camera
Beyond just a display, this interactive flat panel includes a high-pixel 48MP camera for photos and an 8MP camera for video. This sophisticated camera supports intelligent switching between Android, OPS, and PC systems, ensuring you're always ready for video conferencing or content capture. Its 120° diagonal field of view is wide enough to capture a full conference room, and advanced image processing technologies like 3D digital noise reduction and automatic white balance ensure optimal visual quality in various lighting conditions.
Superior Audio Performance
Equipped with an 8-array omni-directional microphone and powerful 2x20W + 25W loudspeakers, this panel delivers exceptional audio. The microphone array boasts a 12-meter voice pickup distance and features advanced audio processing technologies such as echo reduction, adaptive noise reduction, and automatic gain control. These features work together to ensure clear, crisp audio for all participants, eliminating distractions and enhancing communication during meetings and presentations.
Robust Android 13.0 System
The built-in Android 13.0 operating system, powered by a high-performance Octa-core processor (Quad-core Cortex-A76 and Quad-core Cortex-A55), provides a smooth and stable platform for all your interactive needs. With 8GB of RAM and 128GB of built-in storage, it offers ample resources for running applications, storing files, and delivering a responsive user experience.
Tech Specs
| Display & Touch |
| Screen Size |
65 inch |
| Type |
Infrared Touch Screen |
| Backlight |
DLED |
| Touch Point |
50 point multi-touch |
| Pixel Pitch |
0.124(H) × 0.372(V)mm |
| Touch Response Time |
≤ 2 ms |
| Resolution |
3840 × 2160 @60 Hz |
| Minimum Touch Object |
≥ 1.5 mm (≥ 90% touching area) |
| Brightness |
400 cd/m² (Typ.) |
| Touch Precision |
± 0.5 mm (≥ 90% touching area) |
| Color Depth |
10 bit |
| Touch Resolution |
32768 × 32768 |
| Display Color |
1.07G |
| Response Time |
5 ms |
| Panel Type |
VA |
| Contrast Ratio |
5000:1 (Static); 30,000:1 (Dynamic) |
| Color Gamut |
72% NTSC (CIE1931) (Typ.) |
| Refresh Rate |
60 Hz |
| Viewing Angle |
178°(H)/178°(V) |
| Aspect Ratio |
16:09 |
| Surface Hardness |
9H |
| Surface Glass |
3.2 mm Anti-Glare Glass |
| Surface Haze |
25%Haze |
| Glass Bonding Method |
Zero Lamination |
| Display Area |
1428.48mm x 803.52mm |
| Working Duration |
7 × 16H |
| Transmittance |
88% ± 3 |
| Lifespan |
50,000 hours |
| Built-in System |
| Operation System |
Android 13.0 |
| Memory |
8 GB |
| Built-in Storage |
128 GB |
| Processor |
Quad-core Cortex-A76 × 4 (2.4GHz) and
quad-core Cortex-A55 × 4 (1.8GHz) |
| GPU |
Mali-G610 MC4 |
| HDCP Version |
2.3 |
| Camera |
| Pixel |
48MP for Photos & 8 MP for Video |
| Camera Function |
Support intelligent switching between
Android system, OPS, and PC. |
| Field Angle |
120°(diagonal), 110°(horizontal),
75°(vertical) |
| Distortion |
≤2.5% |
| Camera Resolution Ratio |
Up to 4K |
| Microphone |
| Specification |
Omni-directional 8-array layout |
| Mic Function |
Echo reduction and smart noise cancellation |
| Voice Distance |
12 m |
| Sampling Rate |
32 K |
| Mic Sampling Rate |
16 bit |
| Interface |
| Video & Audio Input |
HDMI In (HDMI 2.0)× 3, VGA In x 1,
DP In (DP 1.2)× 1, Audio In × 1 |
| Video & Audio Output |
HDMI Out (HDMI 2.0)× 1, Audio Out × 1, SPDIF Out × 1 |
| Control Interface |
TOUCH-USB 3.0 × 3, RS232 × 1 |
| Network Interface |
LAN (1000 Mbps) × 2
WIFI AP&Station，2.4G/5G
IEEE 802.11 a/b/g/n/ac 2x2 MIMO (2.4 GHz and 5 GHz)
authentication protocols WEP, WPA, WPA2, PSK and
802.1X EAP |
Data Transmission
Interface |
USB 3.0 × 4, USB 2.0 × 1, Type-C × 2 (Type-C supports
USB 2.0, DP 1.2, and charging functions; side charging 15
W, front charging 65 W) |
| Power |
| Power Supply |
100 to 240 VAC, 50/60 Hz |
| Standby Consumption |
≤ 0.5 W |
| Average Consumption |
< 107W |
| Internal Function |
| Loudspeaker |
Built-in 2 × 20 W + 25 W loudspeaker |
| Bluetooth |
Built-in BLE (Bluetooth Low Energy) module supports
Bluetooth 5.1 |
| NFC |
Support screen mirroring by Android phones |
| Light Sensor |
Yes |
| Image Processing Technology |
| Technology |
Support 3D digital noise reduction, face detection,
automatic white balance, automatic purple edge
removal, automatic defogging；support shadow
correction and distortion correction for lens. |
| Audio Processing Technology |
| Technology |
Support dereverberation, adaptive noise reduction,
adaptive non-stationary noise reduction, adaptive echo
cancellation, automatic gain control, automatic
electrical level control, sound source localization,
speech dynamic detection, digital beam forming, speech
detection. |
| General |
| VESA |
600 mm × 400 mm (4 × M8-25 mm) |
| Product Dimensions |
1491.9 mm × 910.6 mm × 82.3 mm |
| Package Dimensions (W × H × D) |
1704 mm × 251 mm × 1073 mm |
| Net Weight |
37.6 kg |
| Gross Weight |
47.6 kg |
| Working Environment |
| Working Temperature |
0 °C to 40 °C (32 °F to 104°F) |
| Working Humidity |
10%~90% RH |
| Accessory |
Wall mount bracket, hook, user manual, touch writing pen, packing list, 3M touch USB cable, 3.5M HDMI cable (2.0), 1.5m
power cable (European standard), Bluetooth remote control. |
Q&A
Q: What is the resolution of the display?
A: The display boasts a stunning 4K UHD resolution of 3840 x 2160 pixels at 60 Hz.
Q: How many touch points does the screen support?
A: It supports up to 50 points of multi-touch, allowing for extensive collaborative interactions.
Q: Can I connect my laptop to the display?
A: Yes, the display offers multiple input options including HDMI, VGA, and DisplayPort, as well as USB-C for video and charging.
Q: Does it have built-in Wi-Fi?
A: Yes, it includes built-in Wi-Fi supporting 2.4G/5G IEEE 802.11 a/b/g/n/ac 2x2 MIMO.
Q: What is the purpose of the built-in camera?
A: The integrated 48MP camera is designed for high-quality video conferencing and capturing images, supporting intelligent switching between different operating systems.
Q: What kind of audio features does it have?
A: It features an 8-array omni-directional microphone with a 12-meter voice pick-up range, along with advanced audio processing technologies like echo reduction and noise cancellation. It also has powerful built-in loudspeakers.
Q: Is the screen protected against glare?
A: Yes, the 3.2 mm Anti-Glare Glass surface minimizes reflections and enhances visibility in various lighting conditions.
Q: What operating system does it run on?
A: It comes with Android 13.0 built-in, offering a versatile and user-friendly platform.
