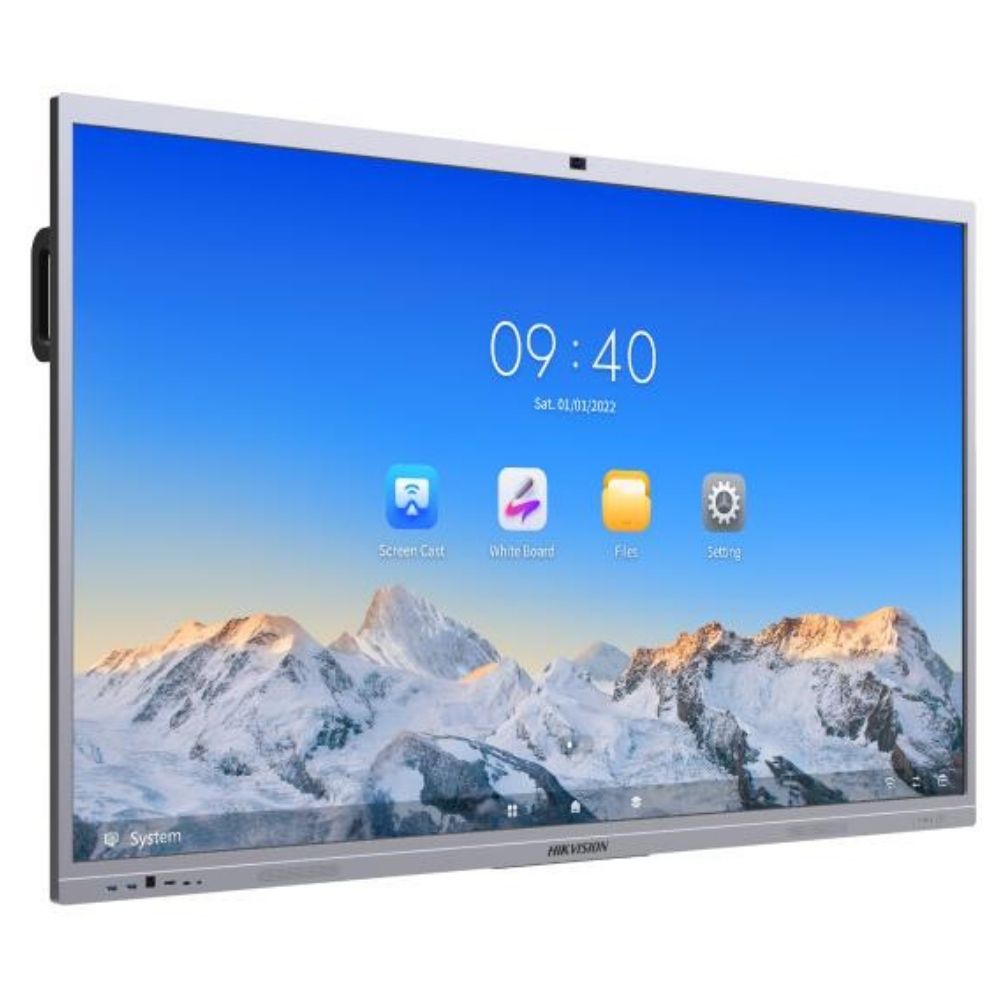

The Hikvision DS-D5C75RB/B is a cutting-edge 75-inch interactive flat panel display designed for seamless collaboration and dynamic presentations. With its stunning 4K resolution and responsive infrared touch technology, it transforms any meeting room or classroom into an engaging, interactive environment. Experience crystal-clear visuals, effortless annotation, and intuitive control, making it ideal for everything from detailed security system blueprints to interactive educational content.
Features
-
Immersive 4K Display: Delivers breathtaking clarity and detail, perfect for showcasing high-resolution content, schematics, and video feeds.
-
Responsive 50-Point Touch: Enables natural and fluid multi-user interaction, allowing for collaborative annotation, drawing, and precise control.
-
Integrated Android 13.0 System: Provides a powerful, familiar, and user-friendly platform for direct access to apps and smooth operation without external devices.
-
High-Fidelity Audio: Built-in 2x20W+25W loudspeakers ensure clear and powerful sound for presentations, video conferences, and multimedia playback.
-
Advanced Microphone Array: Features an omni-directional 8-array microphone with echo reduction and noise cancellation for crystal-clear voice pickup up to 12 meters.
-
Versatile Connectivity: Offers a comprehensive range of input/output options including HDMI, DP, VGA, USB 3.0, and Type-C for seamless integration with various devices.
-
Built-in 48MP Camera: Supports intelligent switching between systems, providing high-quality video for remote collaboration and enhanced visual communication.
-
Anti-Glare Glass: Reduces reflections and eye strain, ensuring comfortable viewing in various lighting conditions.
-
Robust Design: Constructed with 9H surface hardness and zero lamination for durability and a premium touch experience.
DOWNLOADS
Extra Info
Intuitive Touch Technology
The infrared touch screen with 50-point multi-touch capability offers a highly responsive and accurate interactive experience. This allows multiple users to simultaneously write, draw, and manipulate content with precision, making it ideal for brainstorming sessions, group projects, or detailed design reviews. The rapid ≤2 ms touch response time ensures a fluid and natural feel, much like writing on a traditional whiteboard, but with the added benefits of digital functionality.
Powerful Integrated System
Running on Android 13.0, the display features a robust processor with quad-core Cortex-A76 and quad-core Cortex-A55, along with a Mali-G610 MC4 GPU. This powerful configuration ensures smooth multitasking, rapid application loading, and seamless performance for demanding software and multimedia. With 8GB of memory and 128GB of built-in storage, there's ample space for applications, files, and recordings directly on the display.
Enhanced Audio and Visuals
Beyond its stunning 4K display, the DS-D5C75RB/B integrates advanced audio and video processing technologies. The 48MP camera, supporting intelligent switching between Android, OPS, and PC systems, provides sharp and clear visuals for video conferencing. The 8-array microphone system features sophisticated algorithms for echo reduction, adaptive noise cancellation, and sound source localization, ensuring that voices are captured clearly even in large rooms, facilitating effective remote collaboration.
Versatile Connectivity and Sharing
With multiple HDMI, USB (including Type-C with charging capabilities), DP, VGA, and LAN ports, the display offers extensive connectivity. Additionally, built-in Wi-Fi and Bluetooth 5.1 facilitate wireless content sharing and peripheral connections. NFC support for screen mirroring from Android phones further enhances convenience, allowing for quick and effortless content projection.
Tech Specs
| Display Touch |
| Screen Size |
75 inch |
| Type |
Infrared Touch Screen |
| Backlight |
DLED |
| Touch Point |
50 point multi-touch |
| Pixel Pitch |
0.14325(H) × 0.42975(V)mm |
| Touch Response Time |
≤ 2 ms |
| Resolution |
3840 × 2160 @60 Hz |
| Minimum Touch Object |
≥ 1.5 mm (≥ 90% touching area) |
| Brightness |
400 cd/m² （Typ.） |
| Touch Precision |
± 0.5 mm (≥ 90% touching area) |
| Color Depth |
10 bit |
| Touch Resolution |
32768 × 32768 |
| Display Color |
1.07G |
| Response Time |
5 ms |
| Panel Type |
VA |
| Contrast Ratio |
5000:1 (Static); 30,000:1 (Dynamic) |
| Color Gamut |
72% NTSC（CIE1931）（Typ.） |
| Refresh Rate |
60 Hz |
| Viewing Angle |
178°(H)/178°(V) |
| Aspect Ratio |
16:09 |
| Surface Hardness |
9H |
| Surface Glass |
3.2 mm Anti-Glare Glass |
| Surface Haze |
25%Haze |
| Glass Bonding Method |
Zero Lamination |
| Display Area |
1650.24mmx928.26mm |
| Working Duration |
7 × 16H |
| Transmittance |
88% ± 3 |
| Lifespan |
50,000 hours |
| Built-in System |
| Operation System |
Android 13.0 |
| Memory |
8 GB |
| Built-in Storage |
128 GB |
| Processor |
Quad-core Cortex-A76 × 4 (2.4GHz)
and quad-core Cortex-A55 × 4 (1.8GHz) |
| GPU |
Mali-G610 MC4 |
| HDCP Version |
2.3 |
| Camera |
| Pixel |
48MP for Photos & 8 MP for Video |
| Camera Function |
Support intelligent switching between
Android system, OPS, and PC. |
| Field Angle |
120°(diagonal), 110°(horizontal),
75°(vertical) |
| Distortion |
≤2.5% |
| Camera Resolution Ratio |
Up to 4K |
| Microphone |
| Specification |
Omni-directional 8-array layout |
| Mic Function |
Echo reduction and smart noise
cancellation |
| Voice Distance |
12 m |
| Sampling Rate |
32 K |
| Mic Sampling Rate |
16 bit |
| Interface |
| Video & Audio Input |
HDMI In (HDMI 2.0)× 3, VGA In x 1,
DP In (DP 1.2)× 1, Audio In × 1 |
| Video & Audio Output |
HDMI Out (HDMI 2.0)× 1, Audio Out × 1, SPDIF Out × 1 |
| Control Interface |
TOUCH-USB 3.0 × 3, RS232 × 1 |
| Network Interface |
| LAN |
(1000 Mbps) × 2 |
| WIFI |
AP&Station，2.4G/5G
IEEE 802.11 a/b/g/n/ac 2x2 MIMO (2.4 GHz and 5 GHz) |
| Authentication Protocols |
WEP, WPA, WPA2, PSK and
802.1X EAP |
| Data Transmission Interface |
| USB |
USB 3.0 × 4, USB 2.0 × 1 |
| Type-C |
× 2 (Type-C supports USB 2.0, DP 1.2, and charging functions;
side charging 15W, front charging 65W) |
| Power |
| Power Supply |
100 to 240 VAC, 50/60 Hz |
| Standby Consumption |
≤ 0.5 W |
| Average Consumption |
< 170W |
| Internal Function |
| Loudspeaker |
Built-in 2 ×20 W+25W loudspeaker; |
| Bluetooth |
Built-in BLE (Bluetooth Low Energy) module supports
Bluetooth 5.1 |
| NFC |
Support screen mirroring by Android phones |
| Light Sensor |
Yes |
| Image Processing Technology |
| Features |
Support 3D digital noise reduction, face detection,
automatic white balance, automatic purple edge
removal, automatic defogging；support shadow
correction and distortion correction for lens. |
| Audio Processing Technology |
| Features |
Support dereverberation, adaptive noise reduction,
adaptive non-stationary noise reduction, adaptive echo
cancellation, automatic gain control, automatic
electrical level control, sound source localization,
speech dynamic detection, digital beam forming, speech
detection. |
| General |
| VESA |
800 mm × 400 mm(4 × M8-25 mm) |
| Product dimensions |
1713.2 mm × 1034.5 mm × 82.5mm |
| Package Dimensions (W × H × D) |
1937 mm × 264 mm × 1222mm |
| Net Weight |
51.23 kg |
| Gross Weight |
67.62 kg |
| Working Environment |
| Working Temperature |
0 °C to 40 °C (32 °F to 104°F) |
| Working Humidity |
10%~90% RH |
| Accessory |
Wall mount bracket, hook, user manual, touch writing pen, packing list,
3M touch USB cable, 3.5M HDMI cable (2.0), 1.5m power cable
(European standard), Bluetooth remote control. |
Q&A
Q: What is the primary use case for this interactive flat panel?
A: This interactive flat panel is ideal for collaborative environments such as corporate meeting rooms, educational institutions for interactive learning, and command centers requiring large, interactive displays for data visualization and communication.
Q: Can I connect my laptop to this display?
A: Yes, you can connect your laptop via HDMI, VGA, DP, or the versatile Type-C port, which supports video input.
Q: Does it have built-in speakers and a microphone?
A: Yes, it features powerful built-in 2x20W+25W loudspeakers and an omni-directional 8-array microphone for comprehensive audio capabilities.
Q: What operating system does it run on?
A: The display has an integrated Android 13.0 operating system. It also supports intelligent switching to OPS (Open Pluggable Specification) or an external PC.
Q: Is the screen durable?
A: Yes, the screen is protected by 3.2 mm Anti-Glare Glass with a 9H surface hardness, making it highly durable and resistant to scratches.
Q: How many touch points does it support simultaneously?
A: The display supports up to 50 points of multi-touch simultaneously.
