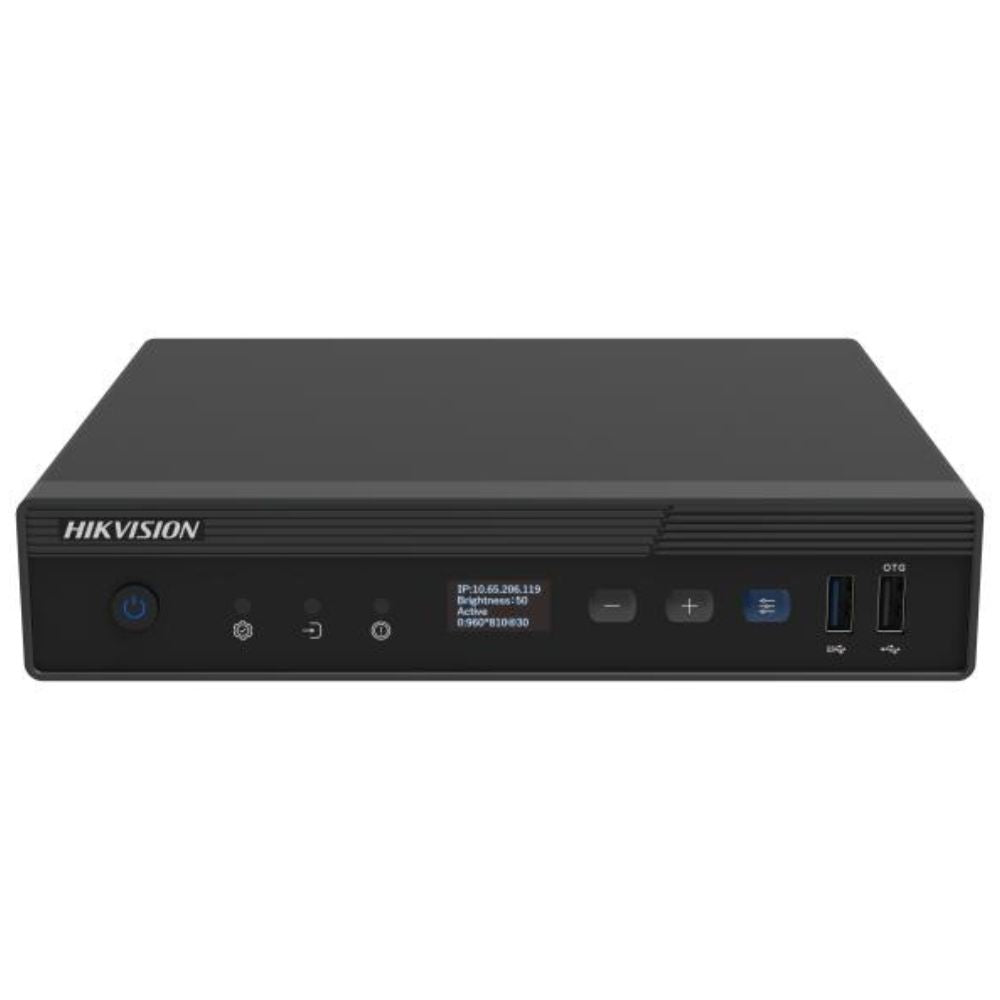

Hikvision 3-in-1 LED Controller, Support Built-in Digital Signage function and Built-in Videowall Controller 2 - HDMI 1.4 Input, 1 - Signage Input - DS-DT60P-02HI04NO

Description

Description

4 Ports 3-in-1 LED Controller

Features

  • Provides a full-color OLED non-touch screen with the resolution of 128 × 64. Thus, you can view device status at any time and the device maintenance become easier.
  • Adopts the rackmount chassis of 1 U height and half width and industrial grade chassis system.
  • Provides buttons on the front panel to change brightness and other parameters.
  • Provides indicators on the front panel to indicate the power status, signal access status, and running status.
  • Supports 2 channels of HDMI 1.4 video signal input. The resolution is 1920 × 1200@60 Hz.
  • Supports frame rate self-adaption ranging from 25 Hz to 60 Hz for image collection.
  • Supports 4 channels of loading output with the maximum loading capacity of 2.6 MP. The maximum width is 32760 pixels and maximum height is 5120 pixels for a single device and the maximum loading capacity of each network port is 0.65 MP.
  • Supports the RGB and YUV 444 image loading output without image quality loss.
  • Supports input of mixed HDMI audio and video stream, and 3.5 mm audio output.
  • Supports full-screen zoom and custom zoom for video signal input, custom changing, and custom splicing.
  • Supports opening the signal source windows on the display and roaming window.
  • Supports the video wall configuration and window visualization.
  • Supports 1 channel of subtitle. You can set the color, font, and scrolling speed for the subtitle and add the picture.
  • Supports cascading management and unified control of multiple LED controllers through the network.
  • Supports high-bandwidth digital content protection technology of HDCP 2.2 protocol.
  • Supports custom EDID settings.
  • Supports dual backup of the power supplies, dual backup of LED controller network ports, dual backup of LED controllers, and dual backup of receiving cards.
  • Supports custom cable alignment without rectangular frame limit.
  • Supports the operation through the client or the LED controller web page.
  • Supports configuring the background.
  • Supports configuring the startup logo.
  • Supports configuring the screen dehumidification.
  • Supports using the remote control to control the screen to display the remote UI menu.
  • Supporting adjusting the brightness, contrast, hue, and other parameters of the output image.
  • Supports pixel-level screen correction to effectively eliminate color difference and improve the quality of the display
  • Supports changing the display mode, including general, text, advertisement, video, cinema, security, and etc.
  • Supports selecting the color temperature adjustment mode such as standard, warm color, and cold color and customizing color temperature.
  • Supports eye protection mode to protect the vision of the viewer.
  • Supports high refresh rate output at 3840 Hz, nanosecond response time, and smooth video picture.
  • Supports viewing the loading relationship between the device and LED screen.
  • Supports viewing abnormal screen positioning during running.
  • Supports checking parameters such as device running status, device memory, CPU usage, device running temperature, and network port usage.
  • Supports abnormal screen voltage detection, screen temperature detection, and device temperature detection
  • Supports connecting to the central control device and IoT device through RS-485 port.
  • Supports docking device command and managing device by using the control network port and the protocols such as OTAP.
  • Supports using the control network port to connect to the multi-functional card to realize environment temperature detection, environment humidity detection, and the cooperation between the human body temperature monitoring and screen control.
  • Supports up to 10 scenes. Thus, the saved scene can be used directly in the future.
  • Supports displaying 7 windows (3 signal source windows + 2 image windows + 1 scrolling text window + 1 background window) and customizing the window layout for all windows except for the background window.
  • Provides built-in Android 12 system, 4 GB memory and 32 GB storage and supports multi-media playing.

SKU: DS-DT60P-02HI04NO

Hikvision 3-in-1 LED Controller, Support Built-in Digital Signage function and Built-in Videowall Controller 2 - HDMI 1.4 Input, 1 - Signage Input - DS-DT60P-02HI04NO

For additional details including technical specifications, please refer to the manufacturer's official page or the datasheet.

  • Information for DS-DT60P-02HI04NO

    • 3-year Manufacturer's Warranty

    Hikvision takes quality seriously and puts a lot of effort into ensuring their products are both innovative and reliable. They understand the importance of this, both for peace of mind and cost control, most Hikvision products come with a standard 3-year warranty. As a distributor of authorised and genuine security devices, all Hikvision electronic devices purchased from SpyMonkey are eligible for the 3-year Manufacturer's Warranty.

    Read more

    Product form

    Hikvision 3-in-1 LED Controller, Support Built-in Digital Signage function and Built-in Videowall Controller 2 - HDMI 1.4 Input, 1 - Signage Input - DS-DT60P-02HI04NO

    SKU: DS-DT60P-02HI04NO

    🔴 OUT OF STOCK— Product may be EOL/obsolete. Contact us for alternatives.

    $2,059.00 Incl. GST
