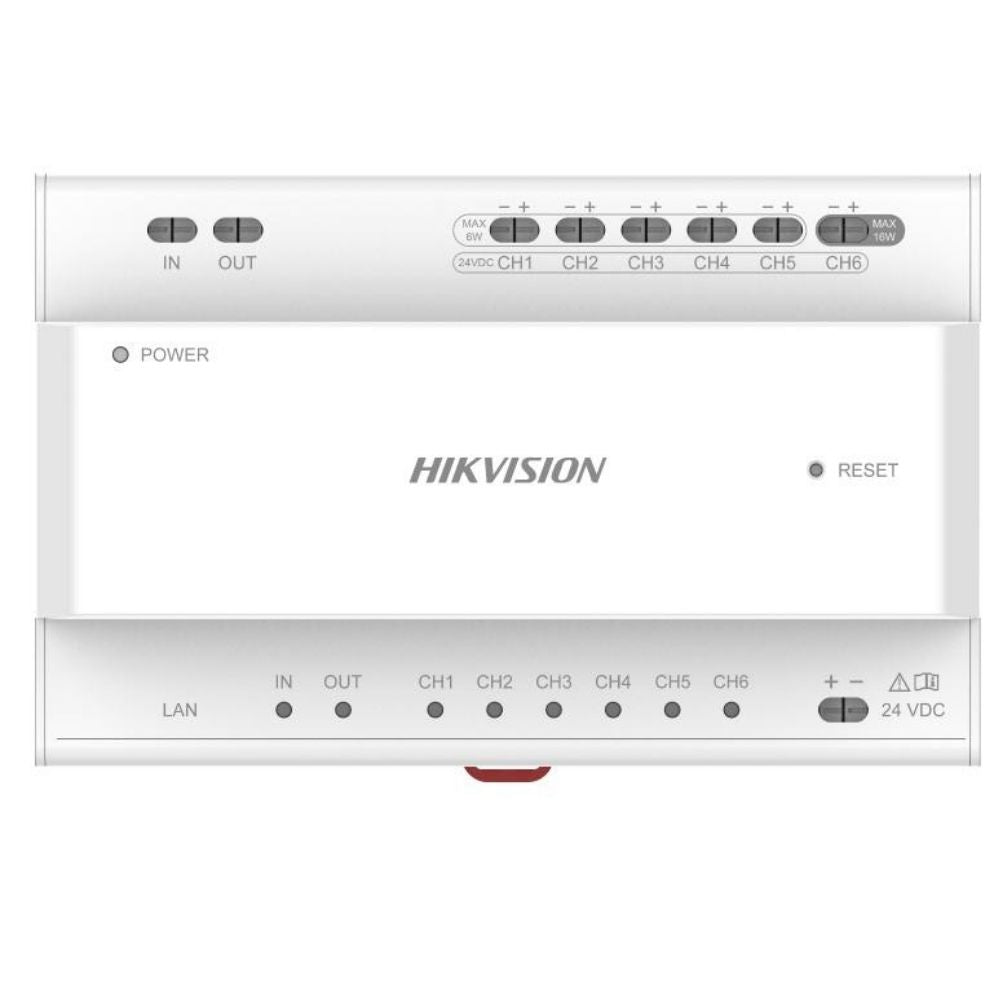

The Hikvision DS-KAD706Y-P is a 2-wire IP distributor designed to provide reliable power and connectivity for video intercom systems. With six cascade interfaces supporting both device power supply and interconnection, it ensures flexible expansion for residential and commercial projects. Compact, rail-mounted, and equipped with status indicators, it delivers stable performance in a professional setup.
Key Features
-
Multi-Port Distribution – 6-port 2-wire cascade interfaces with device power supply.
-
Flexible Expansion – 2 cascade interfaces for DS-KAD704Y, DS-KAD706Y & DS-KAD706Y-S series.
-
Convenient Monitoring – 8 interface indicators for system status.
-
Network Integration – Includes 1 RJ-45 interface and reset button.
-
Reliable Mounting – DIN rail design with stable 24 VDC input power.
Downloads
Perfect For:
- Expanding Hikvision 2-wire video intercom systems
- Residential apartments and commercial office setups
- Projects requiring multiple door stations and indoor monitors
- Professional-grade installations with reliable power distribution
Installer Tips
-
Mounting: Designed for DIN rail installation; ensure stable enclosure.
-
Power Input: Use regulated 24 VDC power supply.
-
Load Distribution: Do not exceed port power consumption (CH1–CH5 < 6 W, CH6 < 16 W).
-
Cascading: When expanding, use only compatible models (DS-KAD704Y, DS-KAD706Y, DS-KAD706Y-S).
-
Testing: Check interface indicators after installation for proper connectivity.
Quick-Read Specs
| Specification |
Detail |
| Model |
DS-KAD706Y-P |
| Type |
2-Wire IP Distributor |
| Ports |
6 × 2-wire cascade with power |
| Cascade Support |
2 × for DS-KAD704Y/706Y/706Y-S |
| Indicators |
8 interface LEDs |
| Network |
1 × RJ-45 |
| Reset |
1 button |
| Power Supply |
24 VDC |
| Power Consumption |
CH1–CH5 < 6 W, CH6 < 16 W |
| Mounting |
DIN Rail |
| Operating Temp. |
-10 °C to 55 °C (14 °F to 131 °F) |
Extra Info
Flexible Integration
The DS-KAD706Y-P is designed to work seamlessly within the Hikvision two-wire video intercom ecosystem. It supports direct connection with multiple indoor stations, door stations, and extension modules, making it a highly versatile choice for residential complexes, office buildings, or multi-tenant installations. Its compatibility with cascading setups also allows for scalable system designs, ensuring smooth integration as projects expand.
Reliable Power Distribution
Beyond data connectivity, this distributor ensures stable and efficient power delivery across all connected devices. With six two-wire channels, each port provides consistent output, while Channel 6 (CH6) is enhanced with higher capacity to support devices with greater power demands. This helps maintain overall system stability and prevents voltage drops, even in larger deployments.
Compact DIN Rail Mounting
Engineered for professional installations, the distributor features a DIN rail mounting design that fits neatly inside electrical control cabinets. This not only saves space but also ensures a tidy, organized, and safe installation. Installers can easily snap it into place without requiring complex tools, streamlining setup time in the field.
Status at a Glance
For hassle-free monitoring, the unit includes LED indicators for each interface, giving technicians a quick overview of system health, connectivity, and power status. During installation and ongoing maintenance, these indicators provide immediate feedback, helping installers and operators quickly troubleshoot and confirm device performance.
Q&A
Q1: What is the purpose of the DS-KAD706Y-P?
It distributes power and signal for Hikvision 2-wire IP intercom systems.
Q2: How many devices can it support?
It supports 6 2-wire devices plus cascading to other distributors.
Q3: Is it compatible with DS-KAD706Y-S?
Yes, it supports cascading with DS-KAD704Y, DS-KAD706Y, and DS-KAD706Y-S.
Q4: Does it come with a power supply?
No, it requires an external 24 VDC power source.
Q5: Where is it best installed?
Inside a DIN rail-mounted control box or structured wiring cabinet.
