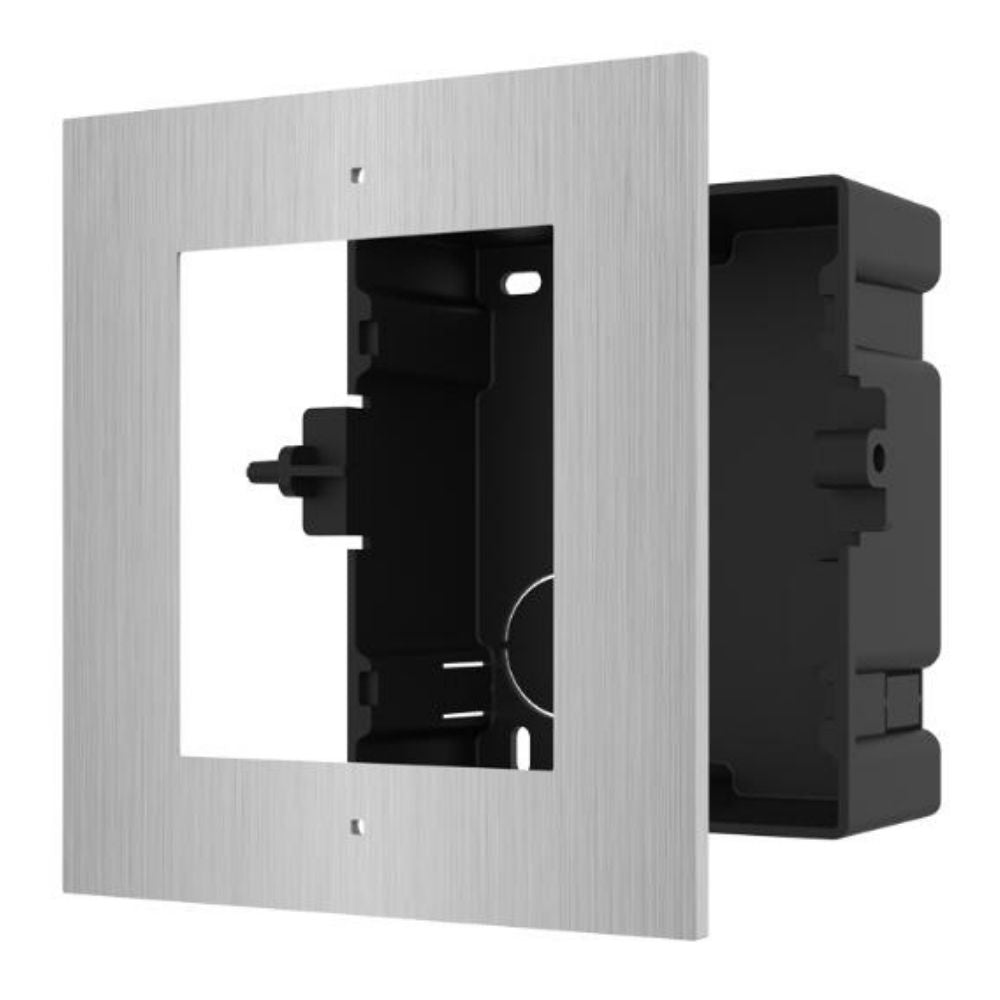

The Hikvision DS-KD-ACF1/Plastic is a flush mounting bracket designed for single-module installation of Hikvision modular video intercom door stations. Made from lightweight plastic, it includes all essential accessories such as the gang box, cover screws, and lines for quick and easy setup. Its compact design ensures a neat and professional finish for residential and commercial intercom systems.
Key Features
-
Single-Module Support – Designed to house and mount one Hikvision modular door station module.
-
Complete Kit – Includes gang box, cover screws, and lines for simplified installation.
-
Lightweight Build – Made from durable plastic for cost-effective and efficient setups.
-
Wide Operating Range – Functions reliably in extreme temperatures from -40 °C to 55 °C.
-
Professional Finish – Ensures clean, flush-mounted installation for modern intercom systems.
Downloads
Installer Tips
-
Flush Mounting – Ensure proper wall cutout size for a secure and flush fit.
-
Weather Considerations – Recommended for indoor or sheltered outdoor use due to its plastic material.
-
Compatibility Check – Works with Hikvision modular door stations such as DS-KD8003-IME1, DS-KD8003Y-IME2, and DS-KD7003EY-IME2.
-
Alignment – Double-check leveling during installation to achieve a neat finish.
Quick-Read Specs
| Specification |
Detail |
| Model |
DS-KD-ACF1/Plastic |
| Type |
Single-Module Flush Mount Bracket |
| Material |
Plastic |
| Dimensions (Cover) |
117 × 107 × 11.5 mm (4.61" × 4.21" × 0.45") |
| Dimensions (Box) |
117 × 107 × 45 mm (4.61" × 4.21" × 1.77") |
| Net Weight |
195 g |
| Gross Weight |
366 g |
| Working Temperature |
-40 °C to 55 °C (-40 °F to 131 °F) |
| Working Humidity |
10% to 95% (non-condensing) |
| Application |
Indoor / Outdoor (sheltered) |
Q&A
Q1: Which devices is it compatible with?
It is designed for Hikvision modular door stations such as DS-KD8003-IME1, DS-KD8003Y-IME2, and DS-KD7003EY-IME2.
Q2: Is it suitable for outdoor use?
Yes, but since it is plastic, it is best suited for indoor or sheltered outdoor installations.
Q3: How many modules can it hold?
It supports a single module.
Q4: What is included in the kit?
The package includes a gang box, cover, screws, and wiring lines for installation.
Q5: Does Hikvision offer other versions?
Yes, Hikvision provides flush mounting brackets in aluminum and multi-module options for larger intercom setups.
