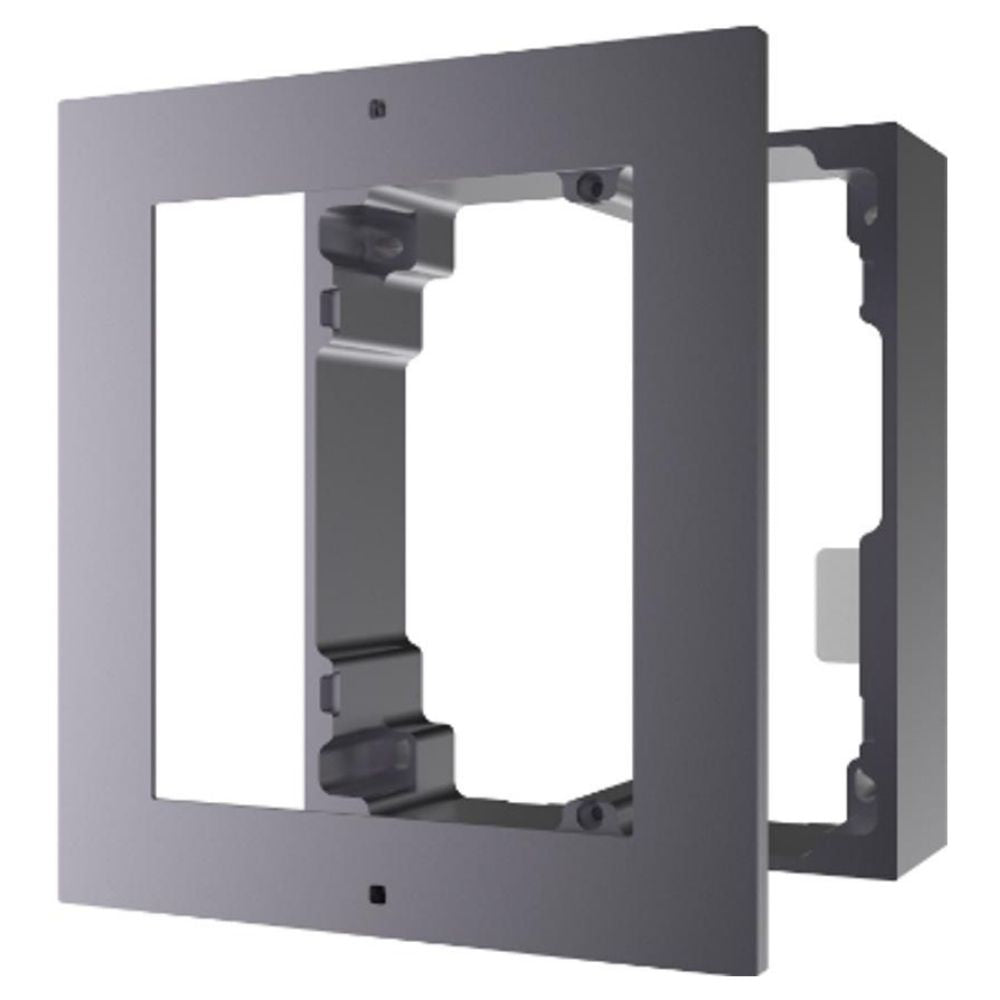

The Hikvision DS-KD-ACW1 is a surface mounting bracket designed for single-module installation of Hikvision modular video intercom door stations. The package includes a module frame, a front panel, and all necessary installation accessories. Made from aviation-grade aluminum, it combines durability with a sleek finish, ensuring reliable long-term performance in residential and commercial environments.
Key Features
-
Single-Module Support – Designed for surface mounting one Hikvision modular door station module.
-
Complete Kit – Includes a module frame, front panel, and required installation accessories.
-
Durable Build – Constructed from aviation aluminum for strength and corrosion resistance.
-
Reliable Performance – Operates in wide temperature ranges from -40 °C to 55 °C.
-
Broad Compatibility – Supports DS-KD8003-IME1, DS-KD8003-IME2, and other Hikvision modular intercom components.
Downloads
Installer Tips
-
Flat Surface Mounting – Ensure the mounting wall is flat and stable for secure installation.
-
Weather Protection – Apply sealing where needed for outdoor use to prevent water ingress.
-
Check Alignment – Confirm that the module frame is properly aligned before securing.
-
Compatibility – Verify the bracket matches the specific Hikvision modular series in use.
Quick-Read Specs
| Specification |
Detail |
| Model |
DS-KD-ACW1 |
| Type |
Single-Module Surface Mount Bracket |
| Material |
Aviation Aluminum |
| Cover Dimensions |
117 × 107 × 4 mm (4.61" × 4.21" × 0.16") |
| Installation Frame Dimensions |
117 × 107 × 32.7 mm (4.61" × 4.21" × 1.29") |
| Net Weight |
220 g |
| Gross Weight |
381 g |
| Working Temperature |
-40 °C to 55 °C (-40 °F to 131 °F) |
| Working Humidity |
10% to 95% (non-condensing) |
| Application |
Indoor / Outdoor (with proper sealing) |
Q&A
Q1: Which door stations is this bracket compatible with?
It is designed for Hikvision modular door stations such as DS-KD8003-IME1, DS-KD8003-IME2, and related accessories.
Q2: Is it suitable for outdoor use?
Yes, with correct sealing and installation to protect against moisture.
Q3: How many modules can it support?
It supports a single module.
Q4: What material is it made from?
It is made from aviation aluminum for durability and a premium finish.
Q5: Are there versions for multiple modules?
Yes, Hikvision offers similar surface mounting brackets for two-module and three-module configurations.
