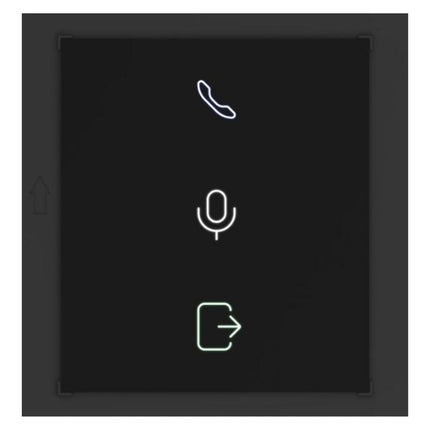

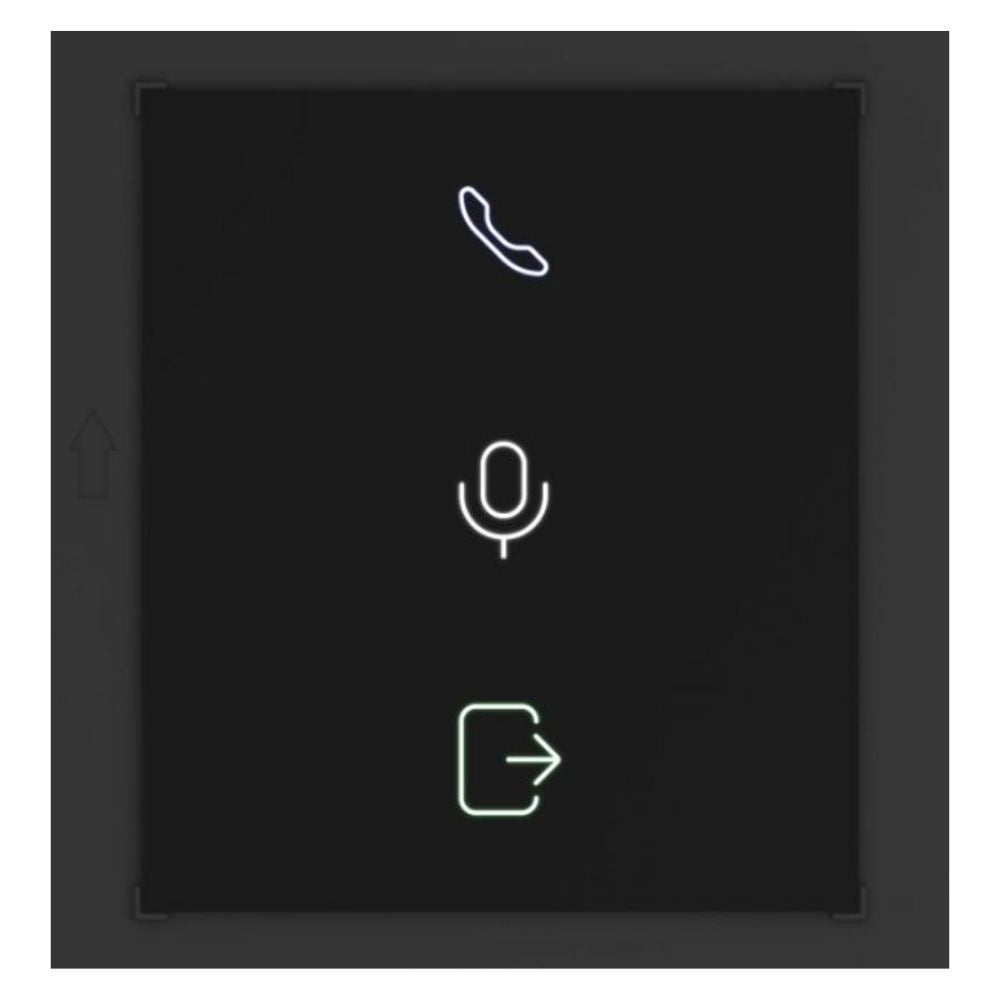

The Hikvision DS-KD-IN is an indicator module designed for the KD8 Series Pro Modular Door Station. It provides clear status indications for calls, door unlocking, and two-way audio, helping users quickly understand device operations. With IP65 protection, backlight compensation, and compact design, it ensures reliable performance in outdoor environments.
Key Features
-
Status Indication – Provides rich device status including call, door open, and two-way audio.
-
Weather Resistant – IP65-rated protection for outdoor installation.
-
Backlight Compensation – Ensures visibility of indicators in various lighting conditions.
-
Easy Integration – Designed to seamlessly extend KD8 Series modular door stations.
-
Durable & Efficient – Compact design with ≤ 2 W power consumption.
Downloads
Installer Tips
-
Mounting Options – Compatible with flush or surface mounting brackets.
-
Outdoor Ready – Ensure proper sealing for weatherproof performance.
-
Power Consumption – Low energy use at ≤ 2 W, but confirm stable power source.
-
Integration – Designed to work with KD8 Series modular intercom systems.
-
Placement – Install at visible positions for optimal status indication.
Quick-Read Specs
| Specification |
Detail |
| Model |
DS-KD-IN |
| Type |
Indicator Module for KD8 Series |
| Operating System |
Linux |
| Processor |
Embedded high-performance processor |
| Indicators |
3 (Call, Door Open, Two-Way Audio) |
| Installation |
Flush / Surface mounting |
| Dimensions |
98.5 × 100 × 33.7 mm (3.87" × 3.95" × 1.33") |
| Net Weight |
165 g |
| Gross Weight |
326 g |
| Protection |
IP65 |
| Power Consumption |
≤ 2 W |
| Working Temperature |
-40 °C to 55 °C (-40 °F to 131 °F) |
| Working Humidity |
10% to 95% (non-condensing) |
| Application |
Outdoor |
Q&A
Q1: What does the DS-KD-IN indicate?
It displays status for calls, door opening, and two-way audio communication.
Q2: Is it weatherproof?
Yes, it has IP65-rated protection for outdoor installations.
Q3: How is it installed?
It supports both flush mounting and surface mounting.
Q4: What is its power consumption?
It consumes ≤ 2 W, making it energy efficient.
Q5: Which systems is it compatible with?
It is designed for the KD8 Series Pro Modular Door Stations and integrates with related Hikvision accessories.
