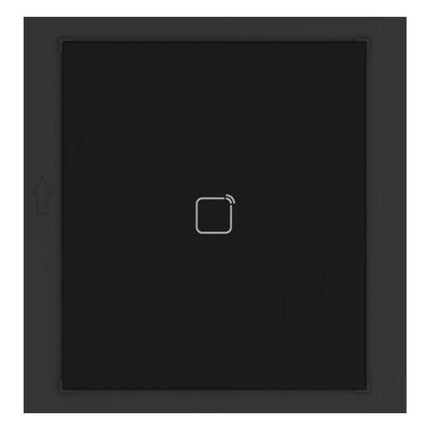

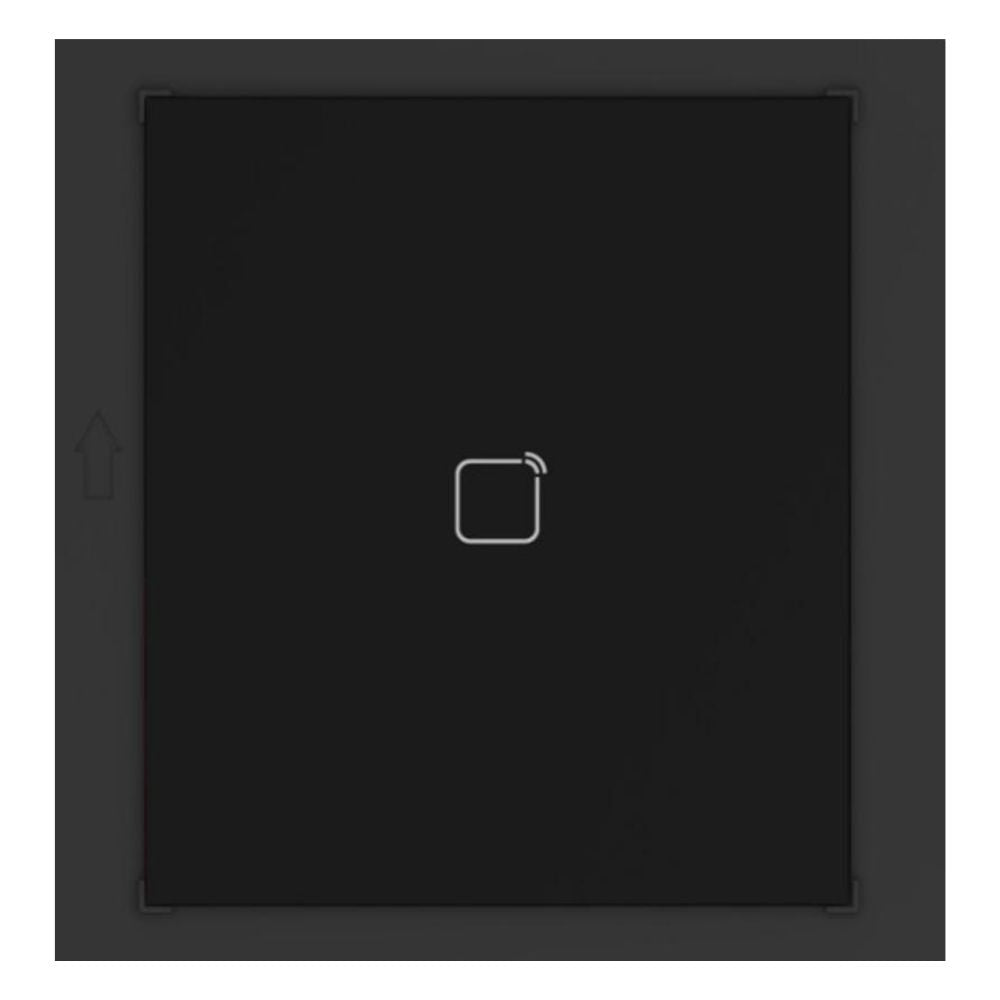

The Hikvision DS-KD-M is an M1 card reader module designed for the KD8 Series Pro Modular Door Station. It enables secure door unlocking through contactless card swiping and supports card issuing for access control management. With its IP65-rated weather protection, backlight support, and compact design, this module offers reliability and ease of integration for residential and commercial entry systems.
Key Features
-
M1 Card Reader – Supports secure unlocking via card swiping.
-
Card Issuing Support – Allows issuing of cards directly from the module.
-
Weather Protection – IP65-rated for outdoor reliability.
-
Backlight Compensation – Enhances usability in low-light conditions.
-
Flexible Installation – Compatible with both flush and surface mounting.
-
Energy Efficient – Operates at only 0.8 W power consumption.
Downloads
Perfect For
- Residential complexes requiring card-based access control
- Commercial entryways with modular intercom systems
- Outdoor access points exposed to dust and rain
- Sites seeking easy card management and secure entry
Installer Tips
-
Mounting Options: Choose between flush or surface mounting based on site needs.
-
Weatherproofing: Ensure sealing for maximum IP65 performance.
-
Card Management: Use quality M1 cards for smooth authentication.
-
Integration: Confirm compatibility with other KD8 Series Pro Modular Door Station modules.
Quick-Read Specs
| Specification |
Detail |
| Model |
DS-KD-M |
| Type |
M1 Card Reader Module for KD8 Series Pro Modular Door Station |
| Operating System |
Linux (with embedded high-performance processor) |
| Power Consumption |
0.8 W |
| Protective Level |
IP65 |
| Dimensions (W × H × D) |
98.5 × 100 × 33.7 mm (3.87" × 3.95" × 1.33") |
| Net Weight |
160 g |
| Gross Weight |
421 g |
| Working Temperature |
-40 °C to 55 °C (-40 °F to 131 °F) |
| Working Humidity |
10% to 95% (non-condensing) |
| Installation |
Flush Mounting / Surface Mounting |
| Application |
Outdoor |
Extra info
Durable Outdoor Design
The DS-KD-M is engineered to perform reliably in challenging outdoor environments. With an IP65 weatherproof rating, it is resistant to dust, rain, and moisture, making it suitable for year-round use in exposed areas. Its rugged construction ensures long-lasting durability, minimizing maintenance needs and providing dependable performance for both residential and commercial installations.
Efficient Card-Based Access
This module is designed for card swiping and card issuing, making it an ideal solution for properties requiring frequent access management. It eliminates the need for physical keys or PIN codes, offering a fast and secure authentication process. This is particularly useful in multi-tenant apartments, office buildings, and gated communities, where multiple users require easy but controlled access.
Seamless Integration
As a component of the KD8 Series Pro Modular Door Station, the DS-KD-M connects seamlessly with other modules such as video cameras, numeric keypads, and display panels. This modular approach allows installers to create customized intercom and access control systems tailored to the needs of the property. Whether for small-scale deployments or large multi-entrance facilities, its scalable design ensures flexibility and efficiency.
Enhanced Security & Management
By enabling both card issuing and access verification, the DS-KD-M supports streamlined management of access credentials. Property managers can easily add, update, or revoke user cards, enhancing security while maintaining convenience. This makes it a reliable solution for modern access control ecosystems where flexibility and safety are equally important.
Q&A
Q1: What is the main function of this module?
It allows unlocking doors via card swiping and supports card issuing.
Q2: Is it weatherproof?
Yes, it is IP65-rated for outdoor installations.
Q3: Does it support keypad access?
No, this model is card-only. For keypad access, a separate keypad module (DS-KD-KP) is available.
Q4: What are the mounting options?
It supports both flush and surface mounting.
Q5: Is it compatible with all KD8 Series Pro Door Stations?
Yes, it is designed to integrate seamlessly with KD8 Series Pro Modular Door Stations.
