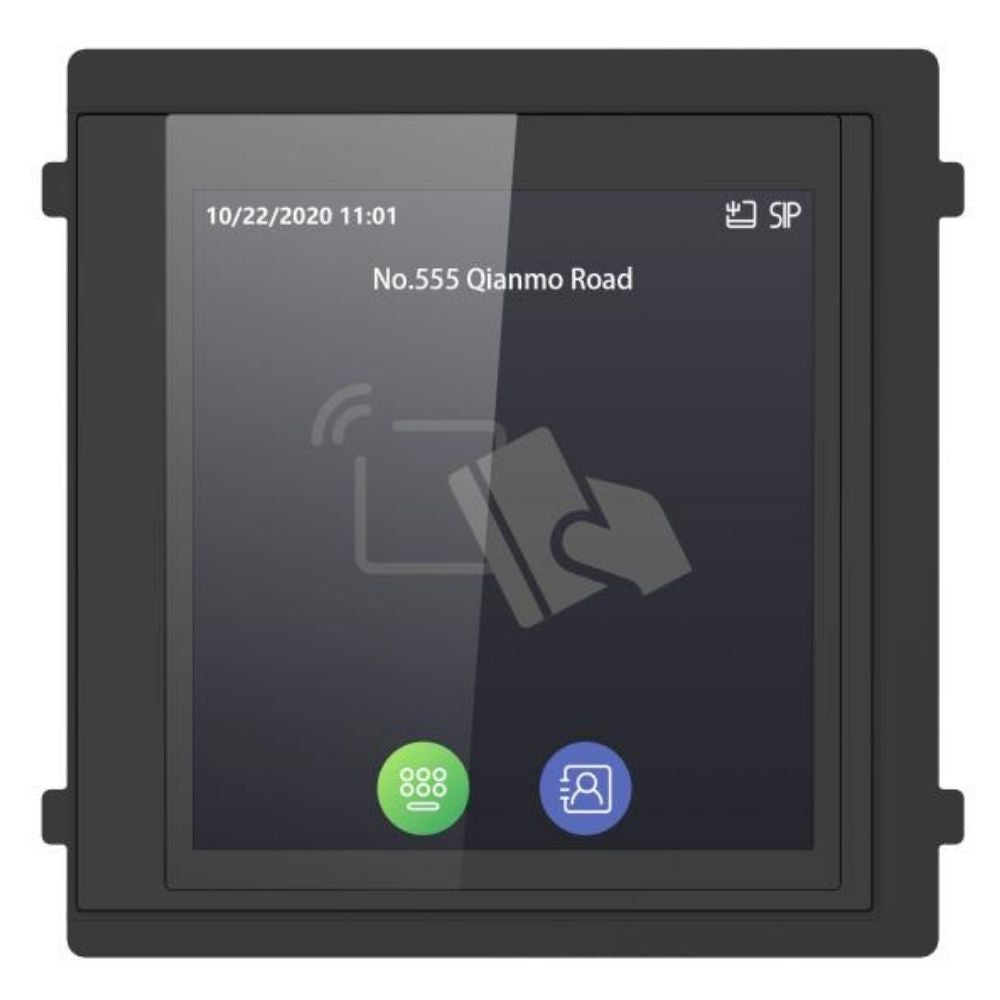

The Hikvision DS-KD-TDM is a touch display module with an integrated M1 card reader designed for the Modular Door Station series. Featuring a 4-inch IPS touch screen, it supports dialing numbers, PIN code unlocking, contact lists, and advertisement display, making it both functional and versatile. With storage for up to 2000 contacts, IP65 weather protection, and IK08 impact resistance, this module delivers a secure, user-friendly, and durable solution for modern entry management systems.
Key Features
-
4-Inch Touch Display – Provides rich interaction, including dialing, PIN unlock, and contact lists.
-
Integrated M1 Card Reader – Supports secure card-based access and authentication.
-
Large Contact Capacity – Stores up to 2000 contacts for flexible directory management.
-
Rugged Build – IP65 weatherproofing and IK08 vandal resistance ensure outdoor reliability.
-
Multi-Language Support – Compatible with over 15 languages, including English, French, German, Spanish, and more.
-
Flexible Installation – Supports both flush and surface mounting.
-
Energy Efficient – Operates at ≤ 4 W power consumption.
Downloads
Perfect For:
- Residential complexes with multiple tenants
- Commercial buildings requiring advanced access control
- Outdoor entry points exposed to weather and vandal risks
- Sites needing integrated card and touch display functionality
Installer Tips
-
Mounting Options: Choose flush or surface mounting depending on the wall structure.
-
Visibility: Adjust screen brightness (up to 500 cd/m²) for outdoor sunlight conditions.
-
Integration: Ensure compatibility with KD8 Series modular main units.
-
Card Use: Position card reader area within 2 cm for optimal swiping response.
Quick-Read Specs
| Specification |
Detail |
| Model |
DS-KD-TDM / DS-KD-TDM(USA-STD) |
| Type |
Touch Display Module with M1 Card Reader |
| Screen |
4-inch IPS, 480 × 480 resolution, adjustable brightness (max 500 cd/m²) |
| Card Type |
M1 card, 13.56 MHz, 2 cm reading distance |
| Contact Capacity |
Up to 2000 contacts |
| Operating System |
Linux |
| ROM / RAM |
32 MB / 128 MB |
| Protective Level |
IP65, IK08 |
| Dimensions (W × H × D) |
100 × 100 × 35 mm (3.94" × 3.94" × 1.38") |
| Weight |
Net: — / Gross: — (datasheet ref.) |
| Power Supply |
12 VDC (from main module) |
| Power Consumption |
≤ 4 W |
| Working Temperature |
-20 °C to 60 °C (-4 °F to 140 °F) |
| Working Humidity |
10% to 95% (non-condensing) |
| Installation |
Flush Mounting / Surface Mounting |
| Application |
Outdoor |
| Languages Supported |
English, French, Portuguese, Spanish, Russian, German, Italian, Polish, Turkish, Vietnamese, Arabic, Czech, Hungarian, Dutch, Romanian, Bulgarian, Ukrainian, Croatian, Serbian, Greek |
Extra Info
Interactive Touch Control
The DS-KD-TDM features a 4-inch IPS touchscreen display that provides users with an intuitive and responsive interface. From making intercom calls and unlocking doors to browsing through contact lists, the touch interface simplifies daily operation. Additionally, the display can be used for advertisement and information playback, making it highly versatile for residential complexes, office buildings, and commercial facilities that want to display messages, announcements, or promotions directly on the door station.
Secure Card-Based Access
Equipped with an integrated M1 card reader, the module supports 13.56 MHz contactless smart cards for authentication. This provides a fast, secure, and hygienic method of entry compared to physical keys or PIN codes. With card-based access, administrators can easily manage permissions, issue or revoke cards, and improve overall access control security.
Durability and Reliability
Built to withstand the challenges of outdoor installation, the DS-KD-TDM is both IP65-rated for weather resistance and IK08-rated for impact protection. This ensures the device is safeguarded against rain, dust, and potential vandalism, making it suitable for deployment in busy public entrances, residential gates, or high-traffic building lobbies where durability is essential.
Scalable Integration
As part of the Hikvision Modular Door Station ecosystem, the DS-KD-TDM integrates effortlessly with main units, video cameras, keypads, and additional modules. This modular approach allows system designers and installers to customize access and intercom solutions based on the unique requirements of each site, whether it’s a small residential building or a large-scale commercial facility.
Enhanced User Experience
The combination of touchscreen functionality, card-based access, and modular expansion makes the DS-KD-TDM a powerful tool for creating modern, user-friendly, and secure entry systems. By uniting convenience with robust protection, it enhances both daily operations for residents and long-term management for property administrators.
