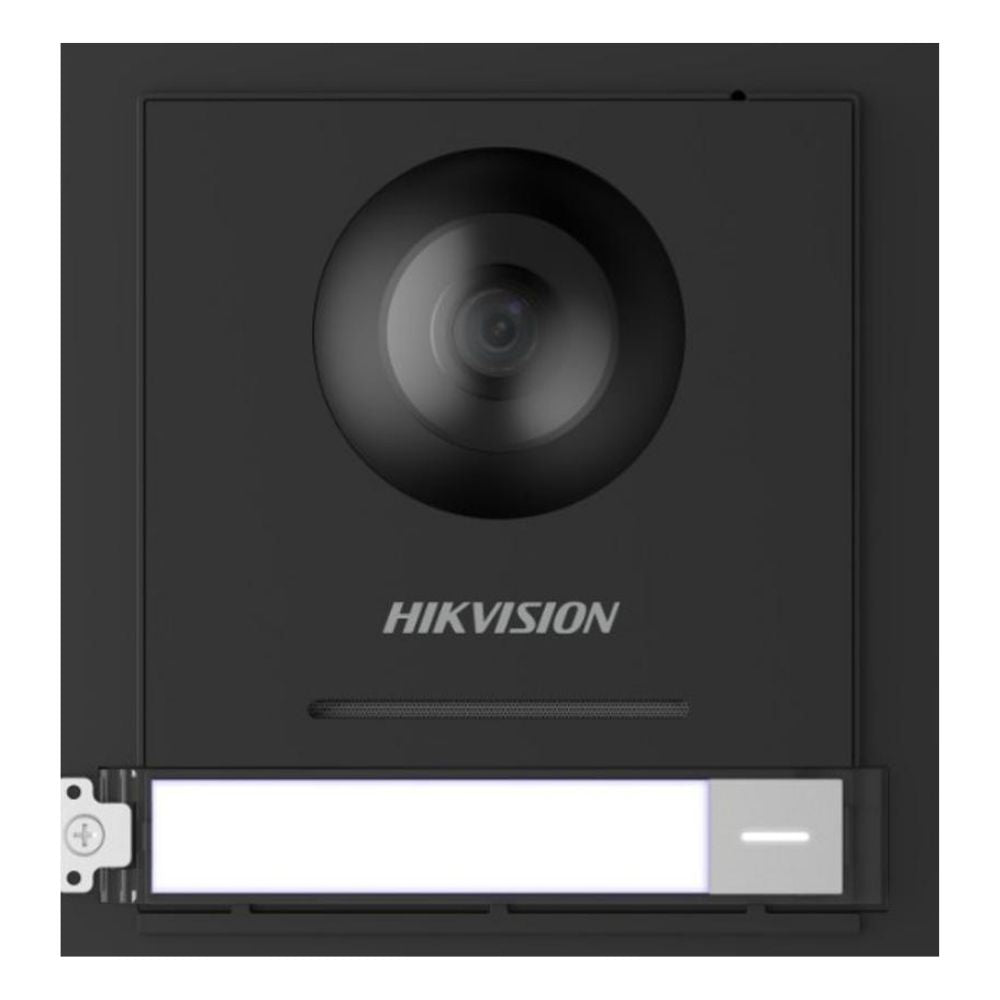

The Hikvision DS-KD8003-IME1 is a versatile video intercom module door station designed to provide secure entry management with advanced video and audio communication. Featuring a 2 MP fisheye camera, IR illumination, tamper detection, and access control functions, it delivers clear monitoring and reliable operation in both residential and commercial installations. With support for multiple sub-modules and customizable nameplates, it ensures flexibility and convenience for modern access systems.
Key Features
-
2 MP HD Camera – Fisheye lens with IR supplement light for low-light visibility.
-
Access Control – Unlock via card, app, client software, or indoor station.
-
Clear Audio – Built-in microphone and loudspeaker with noise suppression and echo cancellation.
-
Tamper Alarm – Integrated tamper detection for added security.
-
Expandable – Supports up to 7 sub-modules.
-
Customizable – Nametag design for personalization.
-
Durable Build – Operates in -40 °C to +55 °C with robust design for reliability.
Downloads
Perfect For:
- Residential gated communities and apartments
- Office buildings with secure visitor management
- Commercial access points requiring integrated video and access control
- Multi-tenant environments needing flexible sub-module expansion
Installer Tips
-
Mounting Options: Choose between flush mounting or surface mounting based on wall type.
-
Power Supply: Use 12 VDC or PoE (IEEE 802.3af) for flexible installation.
-
Networking: Connect via 10/100 Mbps Ethernet and configure TCP/IP settings.
-
Capacity Planning: Supports up to 10,000 cards, 2,000 users, and 500 indoor stations.
-
Testing: Confirm tamper alarm functionality and sub-module connections during setup.
Quick-Read Specs
| Specification |
Detail |
| Model |
DS-KD8003-IME1 |
| Camera |
2 MP fisheye, IR supplement light |
| Resolution |
Main: 1920×1080, Sub: 720×480 |
| Video Compression |
H.264 |
| Audio |
Built-in mic & speaker, G.711U, 64 Kbps |
| Alarm |
1 × tampering alarm |
| Interfaces |
2 × door contact input, 2 × exit button, 4 × I/O, 2 × door control |
| Capacity |
10,000 cards, 2,000 users |
| Protocols |
ISAPI, RTSP, STMP, SNMP |
| Power Supply |
12 VDC / PoE (IEEE 802.3af) |
| Consumption |
4 W |
| Operating Temp. |
-40 °C to +55 °C (-40 °F to 131 °F) |
| Installation |
Flush or surface mount |
| Dimensions |
98 × 99.8 × 43.9 mm (3.86" × 3.93" × 1.73") |
| Weight |
375 g (without pkg) / 554 g (with pkg) |
Extra Info
Advanced Video Intercom
Equipped with a 2 MP fisheye camera, this door station provides a wide field of view for complete entrance coverage, minimizing blind spots. With WDR (Wide Dynamic Range), the camera balances lighting in scenes with both bright and dark areas, while 3D DNR (Digital Noise Reduction) ensures clean, sharp video output. Integrated infrared (IR) illumination enables the device to capture clear images even in low-light or nighttime conditions, making it dependable around the clock.
Secure Audio Communication
For reliable communication between visitors and residents, the device incorporates noise suppression and echo cancellation technologies. These enhancements filter out background noise, reduce interference, and deliver crystal-clear two-way audio, ensuring that conversations remain natural and understandable—even in noisy outdoor environments.
Flexible Expansion
The system is built with scalability in mind, supporting the connection of up to 7 sub-modules. This modular design allows additional features—such as card readers, keypads, or display units—to be added easily. The ability to connect with multiple door stations makes it an excellent solution for apartment complexes, gated communities, or office buildings, where coverage across several entry points is required.
Comprehensive Access Control
More than just an intercom, it also functions as a secure access control terminal. Residents and staff can choose from multiple unlocking options, including RFID card, management software, mobile app via Hik-Connect, or linked indoor stations. This multi-factor flexibility ensures both ease of use and enhanced security, meeting the needs of different installation environments.
Global Compliance
Certified to international standards including CE, FCC, UL, and RoHS, this device ensures reliable performance and adherence to global safety, quality, and environmental regulations. Installers and end-users can have peace of mind knowing it is approved for deployment worldwide, meeting strict compliance for residential, commercial, and industrial applications.
Q&A
Q1: Does it support multiple unlocking methods?
Yes, via card, app, client software, and indoor station.
Q2: Can it work in extreme weather?
Yes, it operates from -40 °C to +55 °C with high humidity tolerance.
Q3: How many users and cards can it store?
It supports up to 2,000 users and 10,000 cards.
Q4: Can it integrate with other Hikvision intercom modules?
Yes, it supports up to 7 sub-modules and multiple indoor stations.
Q5: Is it PoE-compatible?
Yes, it supports PoE (IEEE 802.3af) for simplified installation.
