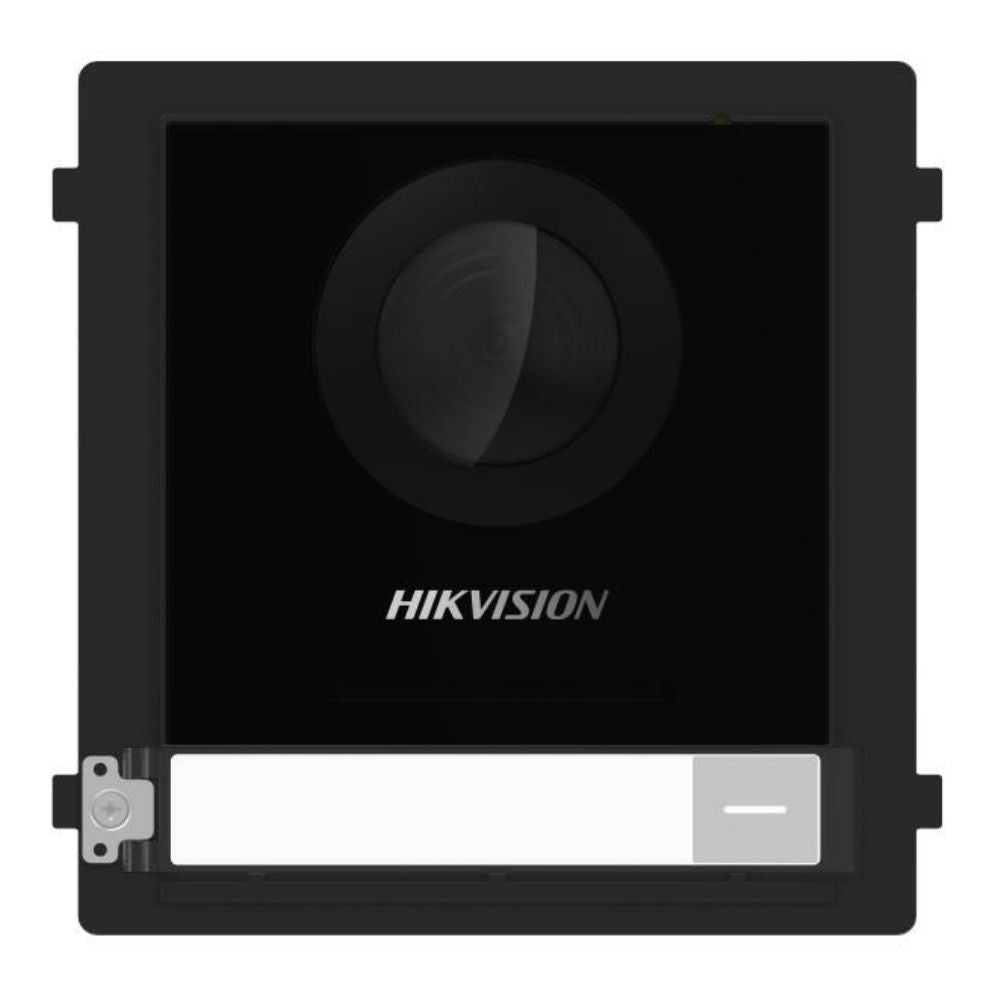

The Hikvision DS-KD8003Y-IME2 is a two-wire main unit of the KD8 Series Pro modular door station, designed for reliable intercom and access control in apartments, offices, and construction sites. Equipped with a 2MP fisheye camera, IR illumination, and two-lock control, it delivers high-quality imaging and secure entry management. With modular expandability and flexible installation options, it is an adaptable solution for modern video intercom systems.
Key Features
-
2-Wire Main Unit – Simplifies wiring while supporting modular extensions.
-
2MP Fisheye Camera – Wide field of view with IR illumination up to 3m.
-
Flexible Expansion – Compatible with button, card, display, and info modules.
-
Two-Lock Control – Powers up to 2 electronic locks directly (12 V, 500 mA).
-
Weather Resistant – IP65-rated for reliable outdoor performance.
-
Convenient Setup – Configurable remotely via web interface.
-
Sturdy Build – Durable design suitable for residential and commercial environments.
Downloads
Perfect For:
- Residential apartments and gated communities
- Office buildings and commercial facilities
- Construction sites and temporary access setups
- Multi-tenant housing and shared workspaces
Installer Tips
-
Power Supply: Requires KAD704Y or KAD706Y two-wire distributor.
-
Mounting Options: Supports surface and flush installation for flexible deployment.
-
Compatibility: Ensure correct KD8 Series modules and accessories are selected.
-
Environment: Rated IP65, ideal for outdoor use in diverse climates.
-
Lock Setup: Can power and control up to two door locks directly.
Quick-Read Specs
| Specification |
Detail |
| Model |
DS-KD8003Y-IME2 |
| Type |
Two-Wire Modular Door Station |
| Camera |
2MP fisheye, IR up to 3m |
| FOV |
H: 146° / V: 82° |
| Audio |
Built-in mic & speaker, noise suppression, echo cancellation |
| Lock Control |
2 relays (Max. 30VDC, 2A) |
| Inputs/Outputs |
4 alarm inputs, 2 exit buttons, 2 door contacts |
| Interfaces |
RS-485, 2-Wire IP |
| Protective Level |
IP65 |
| Dimensions |
100 × 98 × 42 mm |
| Weight |
0.380 kg (net), 0.541 kg (gross) |
| Power Supply |
Via KAD704Y / KAD706Y distributor |
| Operating Temp |
-40 °C to 60 °C (-22 °F to 140 °F) |
| Humidity |
10%–90% (non-condensing) |
| Power Consumption |
≤ 4 W |
| Installation |
Surface / Flush mounting |
| Application |
Outdoor |
Extra Info
Wide-Angle Imaging
The device is equipped with a high-performance 2MP fisheye camera that provides an ultra-wide field of view, enabling users to clearly monitor entryways and capture detailed visitor images. Integrated infrared (IR) illumination with a range of up to 3 meters ensures reliable visibility even in complete darkness, allowing for accurate identification both during the day and at night.
Simplified Two-Wire Setup
Designed with efficiency in mind, the two-wire installation significantly reduces cabling complexity and costs. Despite its simplicity, the system still supports modular expansion, allowing seamless integration of additional components such as call buttons, card readers, or display modules. This flexibility makes it suitable for diverse installation requirements without sacrificing functionality.
Flexible Lock Control
The unit includes built-in relay outputs capable of directly powering and managing up to two electronic door locks. This provides greater convenience for property owners and administrators, enabling secure access control and lock management without requiring separate external modules.
Outdoor Reliability
With an IP65-rated weather-resistant enclosure, the device is built to withstand rain, dust, and challenging outdoor conditions. Its durable construction ensures long-term performance and reliability, making it suitable for deployment in various climates and environments.
Expandable & Versatile
Fully compatible with Hikvision KD8 Series modules, the device can easily adapt to the specific needs of residential homes, commercial buildings, or large multi-tenant complexes. This modular approach ensures scalability, allowing the system to grow as requirements evolve.
Convenient Management
The unit supports remote configuration through a web interface, enabling system administrators to perform setup, adjustments, and troubleshooting without the need for on-site intervention. This streamlines maintenance and ensures efficient system management over time.
Q&A
Q1: Is it compatible with all KD8 Series modules?
Yes, it works with display, keypad, button, card, and info modules for expanded functionality.
Q2: How is it powered?
It is powered by Hikvision’s two-wire distributors (KAD704Y or KAD706Y).
Q3: Can it control multiple locks?
Yes, it supports two electronic locks with direct 12V, 500mA output.
Q4: Is it suitable for outdoor use?
Yes, with an IP65 rating and wide operating temperature range, it is built for outdoor environments.
Q5: Does it support remote configuration?
Yes, the unit can be conveniently configured via a web interface.
