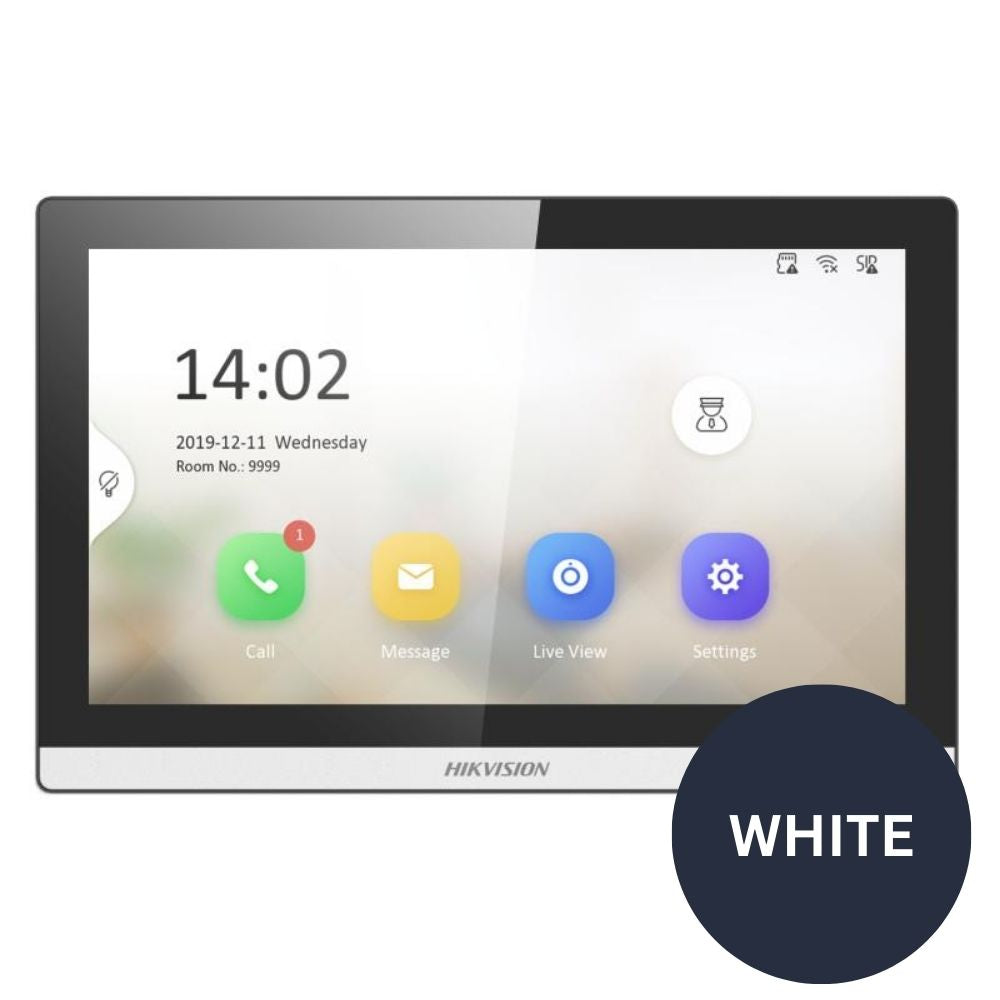

The Hikvision DS-KH6350-WTE1 is a 7-inch IP indoor station from the KH6 series, delivering smooth video and audio communication for modern intercom systems. With its standalone configuration, the device eliminates the need for additional hardware, reducing deployment time and cost. Featuring Hik-Connect mobile integration, it enables users to view, chat, and remotely grant access from anywhere. It also supports linkage with CCTV, alarms, and elevator controls, making it an all-in-one indoor security hub.
Key Features
-
7-inch TFT Touch Screen: Capacitive display with 1024 × 600 resolution for clear visuals.
-
Hik-Connect Mobile App: Remote calling, unlocking, and live view anytime, anywhere.
-
Standalone Configuration: Configure the entire intercom system directly on the device.
-
Quick Setup Wizard: Simplifies installation and system deployment.
-
Voice Messaging: Stores and delivers messages when calls go unanswered.
-
Alarm Integration: Supports alarms and real-time notifications to control centers.
-
Wi-Fi Connectivity: Built-in 2.4 GHz wireless module.
-
Elevator Control: Seamless integration for multi-floor access management.
Downloads
Perfect For:
- Residential apartments and houses
- Office buildings with multiple entry points
- Hotels and serviced residences
- Educational institutions
- Commercial facilities requiring visitor management
Installer Tips
-
Stable Network: Use wired Ethernet for reliability, Wi-Fi for flexible deployment.
-
Mounting: Supports wall or table installation (with optional bracket DS-KABH6350-T).
-
Storage: Insert a Hikvision-certified TF card (up to 128 GB) for image and alarm record storage.
-
System Expansion: Connect up to 16 indoor extensions and 17 doorphones.
-
Alarm Integration: Use alarm I/O terminals for enhanced security automation.
Quick-Read Specs
| Specification |
Detail |
| Operating System |
Linux |
| Processor |
Embedded high-performance processor |
| ROM / RAM |
32 MB / 128 MB |
| Display |
7-inch TFT capacitive, 1024 × 600 |
| Audio |
Built-in mic & speaker, G.711 codec, echo cancellation |
| Storage |
TF card up to 128 GB |
| Network |
TCP/IP, SIP, RTSP, Wi-Fi (2.4 GHz b/g/n) |
| Alarm I/O |
8 inputs / 2 outputs |
| Lock Control |
2 relays, Max. 30 VDC 0.3 A |
| Linked Devices |
16 indoor extensions, 17 doorphones |
| Installation |
Wall or table mount |
| Power |
≤ 5 W |
| Dimensions |
175 × 113.5 × 21 mm |
| Weight |
355 g (net), 683 g (gross) |
| Operating Temp |
-10 °C to 50 °C |
| Humidity |
10% – 90% (non-condensing) |
| Languages |
Multilingual (English, French, Spanish, Chinese, etc.) |
| Application |
Indoor |
Extra Info
Simplified Deployment
The DS-KH6350-WTE1 is designed for straightforward installation and configuration, allowing technicians to complete the full intercom setup directly on the device without requiring additional software or complex system adjustments. This not only reduces installation time and labor costs but also makes it an ideal solution for both new projects and retrofitting existing buildings. Its user-friendly interface ensures that administrators and operators can adjust settings with minimal training.
Remote Access
With full support for the Hik-Connect mobile application, users can stay connected to their property anytime, anywhere. Residents or operators can answer calls, unlock doors, monitor live video feeds, and review event history directly from their smartphones. This remote access feature greatly enhances both security and convenience, ensuring peace of mind for homeowners, office managers, and building security staff.
Flexible Integration
The DS-KH6350-WTE1 goes beyond basic intercom functions by supporting seamless integration with CCTV cameras, alarm systems, and elevator control solutions. This transforms it into a centralized security hub, capable of monitoring multiple security endpoints and managing access across different building areas. Its versatility makes it suitable for residential complexes, office buildings, and commercial properties requiring scalable security infrastructure.
Smart Event Handling
To ensure that no important event goes unnoticed, the indoor station supports voice message storage, alarm notifications, and event recording. In the event of an alarm trigger or missed intercom call, operators and residents can review detailed records of activity, maintaining clear oversight of visitor interactions and security incidents. Timely alerts ensure that security staff or occupants can respond quickly to potential threats or emergencies.
Modern User Experience
With its 7-inch touchscreen display and intuitive controls, the DS-KH6350-WTE1 offers a smooth, smartphone-like experience. The modern design allows it to blend seamlessly into contemporary residential and office interiors, delivering both style and functionality.
Q&A
Q1: Does the DS-KH6350-WTE1 support Wi-Fi?
Yes, it supports 2.4 GHz Wi-Fi (IEEE 802.11 b/g/n).
Q2: Can I use it with Hik-Connect?
Yes, you can view, chat, and unlock doors remotely through the app.
Q3: How many devices can it link to?
Up to 16 indoor extensions and 17 doorphones.
Q4: What storage is supported?
It supports TF cards up to 128 GB for storing pictures and alarms.
Q5: Is it suitable for commercial use?
Yes, it integrates with CCTV, alarms, and elevator systems for business facilities.
Q6: What mounting options are available?
Wall mounting or table mounting (with optional bracket).
Q7: Does it support multiple languages?
Yes, with over 20 supported languages including English, Spanish, French, and Chinese.
